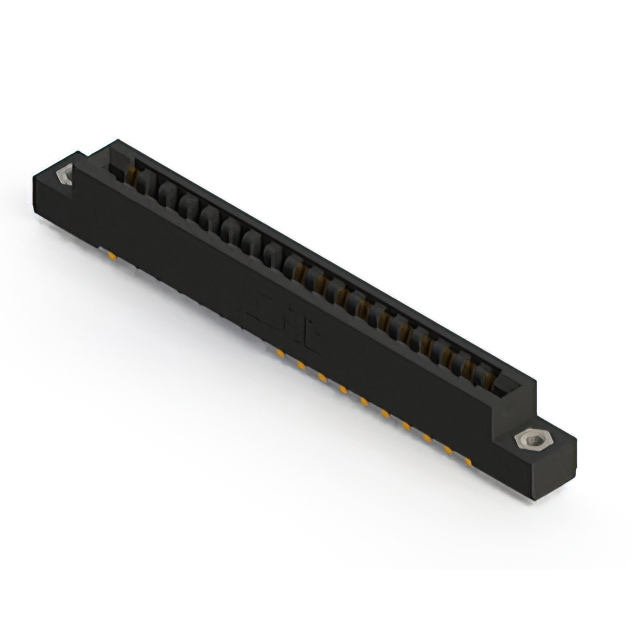

357-018-558-107
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
357-018-558-107
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-018-558-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 18 |
| Number of Positions/Bay/Row [custom] | 18 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
357-018 Series
...
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Read Out | Contact Type | Flange Feature | Termination Rows | Gender | Mounting Type | Color | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Card Type | Contact Finish | Number of Positions/Bay/Row [custom] | Termination | Number of Positions | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Single | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | 1 | Female | Through Hole | Black | 1 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Non Specified - Single Edge | Gold | 18 | Solder Eyelet(s) | 18 | |||
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Single | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Female | Through Hole | Black | 1 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Non Specified - Single Edge | Tin | 18 | Solder | 18 | Card Guides | ||||
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Dual | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Female | Through Hole Right Angle | Black | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Tin | 9 | Solder | 18 | Card Guides | ||||
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Dual | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Female | Through Hole Right Angle | Black | 2 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Gold | 18 | Solder | 36 | |||
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Single | Semi Bellows | 1 | Female | Through Hole | Black | 1 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Non Specified - Single Edge | Tin | 18 | Wire Wrap | 18 | ||||||
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Single | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Female | Through Hole | Black | 1 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Non Specified - Single Edge | Gold | 18 | Wire Wrap | 18 | |||
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Dual | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Female | Through Hole | Black | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Tin | 9 | Solder | 18 | Card Guides | ||||
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Dual | Semi Bellows | Floating Bobbin Flush Mount | 2 | Female | Through Hole | Black | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Tin | 9 | Wire Wrap | 18 | 0.116 in | 2.95 mm | |||
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Dual | Semi Bellows | Flush Mount Top Opening Unthreaded | 2 | Female | Through Hole | Black | 2 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Gold | 9 | Solder | 18 | 0.156 in | 3.96 mm | |
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Single | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | 1 | Female | Through Hole Right Angle | Black | 1 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Non Specified - Single Edge | Gold | 18 | Solder | 18 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
357-018 Series
18 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
