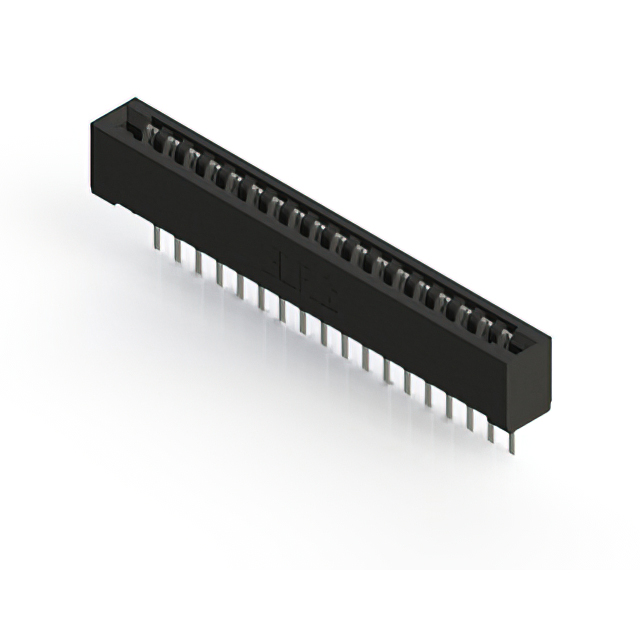

Specification	357-018-445-101

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	18
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Single
Termination	Wire Wrap
Termination Rows	1 rows

357-018 Series

...

Part	Read Out	Contact Finish Thickness	Mounting Type	Contact Type	Gender	Card Thickness (Min)	Card Thickness (Max)	Flange Feature	Number of Positions	Termination	Contact Finish	Color	Number of Rows	Contact Material	Card Type	Operating Temperature (Min)	Operating Temperature (Max)	Pitch	Termination Rows	Material - Insulation	Features	Flange Feature Diameter
EDAC Inc. 357-018-505-107	Single	10 Ąin	Through Hole	Semi Bellows	Female	0.054 in	0.07 in	Flush Mount M3 Threaded Insert Top Opening	18	Solder Eyelet(s)	Gold	Black	1	Copper Alloy	Non Specified Single Edge	-40 °C	105 °C	0.156 in	1 rows	Polyester Thermoplastic
EDAC Inc. 357-018-427-158	Single		Through Hole	Semi Bellows	Female	0.054 in	0.07 in	4-40 Flush Mount Threaded Insert Top Opening	18	Solder	Tin	Black	1	Copper Alloy	Non Specified Single Edge	-40 °C	105 °C	0.156 in	1 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 357-018-427-103	Single		Through Hole	Semi Bellows	Female	0.054 in	0.07 in	Floating Bobbin Flush Mount	18	Solder	Tin	Black	1	Copper Alloy	Non Specified Single Edge	-40 °C	105 °C	0.156 in	1 rows	Polyester Thermoplastic		0.116 in
EDAC Inc. 357-018-553-104	Dual	10 Ąin	Right Angle Through Hole	Semi Bellows	Female	0.054 in	0.07 in	Flush Mount Top Opening Unthreaded	18 36	Solder	Gold	Black	2	Copper Alloy	Dual Edge Non Specified	-40 °C	105 °C	0.156 in	1 rows	Polyester Thermoplastic		0.156 in
EDAC Inc. 357-018-459-268	Dual		Right Angle Through Hole	Semi Bellows	Female	0.054 in	0.07 in	4-40 Flush Mount Threaded Insert Top Opening	9 18	Solder	Tin	Black	2	Copper Alloy	Dual Edge Non Specified	-40 °C	105 °C	0.156 in	2 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 357-018-553-108	Dual	10 Ąin	Right Angle Through Hole	Semi Bellows	Female	0.054 in	0.07 in	4-40 Flush Mount Threaded Insert Top Opening	18 36	Solder	Gold	Black	2	Copper Alloy	Dual Edge Non Specified	-40 °C	105 °C	0.156 in	1 rows	Polyester Thermoplastic
EDAC Inc. 357-018-445-101	Single		Through Hole	Semi Bellows	Female	0.054 in	0.07 in		18	Wire Wrap	Tin	Black	1	Copper Alloy	Non Specified Single Edge	-40 °C	105 °C	0.156 in	1 rows	Polyester Thermoplastic
EDAC Inc. 357-018-547-108	Single	10 Ąin	Through Hole	Semi Bellows	Female	0.054 in	0.07 in	4-40 Flush Mount Threaded Insert Top Opening	18	Wire Wrap	Gold	Black	1	Copper Alloy	Non Specified Single Edge	-40 °C	105 °C	0.156 in	1 rows	Polyester Thermoplastic
EDAC Inc. 357-018-420-258	Dual		Through Hole	Semi Bellows	Female	0.054 in	0.07 in	4-40 Flush Mount Threaded Insert Top Opening	9 18	Solder	Tin	Black	2	Copper Alloy	Dual Edge Non Specified	-40 °C	105 °C	0.156 in	2 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 357-018-442-203	Dual		Through Hole	Semi Bellows	Female	0.054 in	0.07 in	Floating Bobbin Flush Mount	9 18	Wire Wrap	Tin	Black	2	Copper Alloy	Dual Edge Non Specified	-40 °C	105 °C	0.156 in	2 rows	Polyester Thermoplastic		0.116 in
