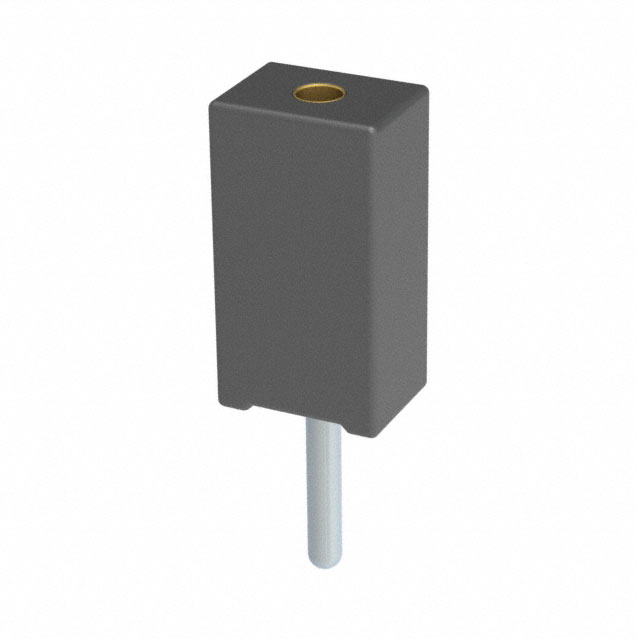

851-47-001-10-001000
ActiveMill-Max Manufacturing Corp.
CONN RCPT 1POS GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
851-47-001-10-001000
ActiveMill-Max Manufacturing Corp.
CONN RCPT 1POS GOLD PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 851-47-001-10-001000 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Length - Post | 0.099 in |
| Contact Length - Post | 2.51 mm |
| Contact Material | Beryllium Copper |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.161 in |
| Insulation Height | 4.1 mm |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 1 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Termination | Solder |
851-47 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Insulation Material | Contact Shape | Contact Length - Post | Contact Length - Post | Contact Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Termination | Material Flammability Rating | Fastening Type | Contact Finish - Post | Mounting Type | Number of Rows | Contact Finish Thickness - Mating | Number of Positions Loaded | Connector Type | Insulation Color | Number of Positions | Contact Type | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mill-Max Manufacturing Corp. | -55 °C | 125 °C | Gold | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | 2.92 mm | 0.115 in | Beryllium Copper | 200 µin | 5.08 µm | 3 A | 0.05 in | 1.27 mm | 0.185 in | 4.7 mm | Solder | UL94 V-0 | Push-Pull | Tin | Through Hole | 1 | Flash | All | Receptacle | Black | 4 | Female Socket | |
Mill-Max Manufacturing Corp. | -55 °C | 125 °C | Gold | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | 3 mm | 0.118 in | Beryllium Copper | 200 µin | 5.08 µm | 3 A | 0.05 in | 1.27 mm | 0.087 " | 2.2 mm | Solder | UL94 V-0 | Push-Pull | Tin | Through Hole Right Angle | 1 | Flash | All | Receptacle | Black | 33 | Female Socket | |
Mill-Max Manufacturing Corp. | -55 °C | 125 °C | Gold | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | 3 mm | 0.118 in | Beryllium Copper | 200 µin | 5.08 µm | 3 A | 0.05 in | 1.27 mm | 0.087 " | 2.2 mm | Solder | UL94 V-0 | Push-Pull | Tin | Through Hole Right Angle | 1 | Flash | All | Receptacle | Black | 34 | Female Socket | |
Mill-Max Manufacturing Corp. | -55 °C | 125 °C | Gold | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | 2.92 mm | 0.115 in | Beryllium Copper | 200 µin | 5.08 µm | 3 A | 0.05 in | 1.27 mm | 0.185 in | 4.7 mm | Solder | UL94 V-0 | Push-Pull | Tin | Through Hole | 1 | Flash | All | Receptacle | Black | 33 | Female Socket | |
Mill-Max Manufacturing Corp. | -55 °C | 125 °C | Gold | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | 2.92 mm | 0.115 in | Beryllium Copper | 200 µin | 5.08 µm | 3 A | 0.05 in | 1.27 mm | 0.185 in | 4.7 mm | Solder | UL94 V-0 | Push-Pull | Tin | Through Hole | 1 | Flash | All | Receptacle | Black | 29 | Female Socket | |
Mill-Max Manufacturing Corp. | -55 °C | 125 °C | Gold | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | 0.099 in | Beryllium Copper | 200 µin | 5.08 µm | 3 A | 0.161 in | 4.1 mm | Solder | UL94 V-0 | Push-Pull | Tin | Through Hole | 1 | Flash | All | Receptacle | Black | 1 | Female Socket | 2.51 mm | |||
Mill-Max Manufacturing Corp. | -55 °C | 125 °C | Gold | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | 2.92 mm | 0.115 in | Beryllium Copper | 200 µin | 5.08 µm | 3 A | 0.05 in | 1.27 mm | 0.185 in | 4.7 mm | Solder | UL94 V-0 | Push-Pull | Tin | Through Hole | 1 | Flash | All | Receptacle | Black | 60 | Female Socket | |
Mill-Max Manufacturing Corp. | -55 °C | 125 °C | Gold | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | 3 mm | 0.118 in | Beryllium Copper | 200 µin | 5.08 µm | 3 A | 0.05 in | 1.27 mm | 0.087 " | 2.2 mm | Solder | UL94 V-0 | Push-Pull | Tin | Through Hole Right Angle | 1 | Flash | All | Receptacle | Black | 42 | Female Socket | |
Mill-Max Manufacturing Corp. | -55 °C | 125 °C | Gold | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | 0.099 in | Beryllium Copper | 200 µin | 5.08 µm | 3 A | 0.05 in | 1.27 mm | 0.161 in | 4.1 mm | Solder | UL94 V-0 | Push-Pull | Tin | Through Hole | 1 | Flash | All | Receptacle | Black | 31 | Female Socket | 2.51 mm | |
Mill-Max Manufacturing Corp. | -55 °C | 125 °C | Gold | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | 2.92 mm | 0.115 in | Beryllium Copper | 200 µin | 5.08 µm | 3 A | 0.05 in | 1.27 mm | 0.185 in | 4.7 mm | Solder | UL94 V-0 | Push-Pull | Tin | Through Hole | 1 | Flash | All | Receptacle | Black | 26 | Female Socket |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 12.09 | |
Description
General part information
851-47 Series
1 Position Receptacle Connector Through Hole Gold
