851-47-004-10-002000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 4POS 0.05 GOLD PCB

851-47-004-10-002000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 4POS 0.05 GOLD PCB

Description Specifications Series Pricing CAD Documents

Description

General part information

851-47 Series

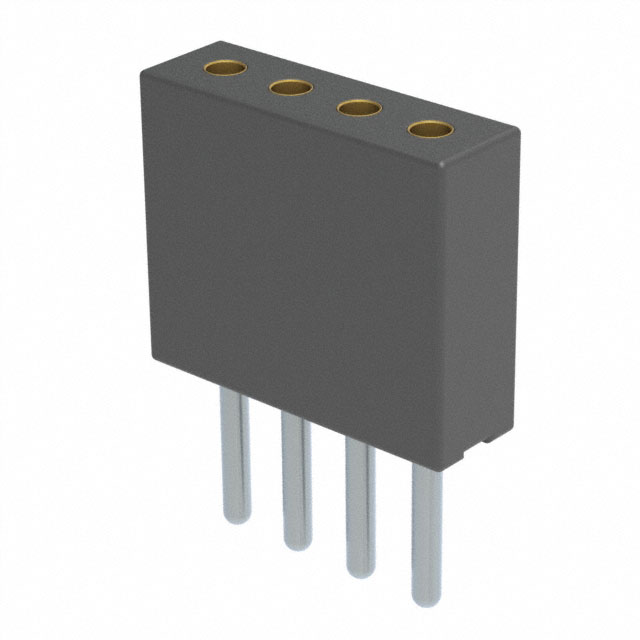

4 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold

Technical Specifications

Parameters and characteristics for this part

Specification	851-47-004-10-002000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	200 µin
Contact Length - Post	0.115 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.185 in
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.05 in
Style	Board
Termination	Solder

851-47 Series

...

Part	Fastening Type	Contact Length - Post	Contact Finish - Mating	Number of Positions Loaded	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish Thickness - Mating	Contact Finish - Post	Current Rating	Style	Insulation Height	Material Flammability Rating	Pitch - Mating	Contact Type	Termination	Number of Rows	Connector Type	Number of Positions	Insulation Color	Mounting Type	Contact Material	Insulation Material	Contact Shape	Contact Finish Thickness - Post
Mill-Max Manufacturing Corp. 851-47-029-10-001000	Push-Pull	0.099 in	Gold	All	125 °C	-55 °C	Flash	Tin	3 A	Board	0.161 in	UL94 V-0	0.05 in	Female Socket	Solder	1	Receptacle	29	Black	Through Hole	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin
Mill-Max Manufacturing Corp. 851-47-004-10-002000	Push-Pull	0.115 in	Gold	All	125 °C	-55 °C	Flash	Tin	3 A	Board	0.185 in	UL94 V-0	0.05 in	Female Socket	Solder	1	Receptacle	4	Black	Through Hole	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin
Mill-Max Manufacturing Corp. 851-47-045-10-002000	Push-Pull	0.115 in	Gold	All	125 °C	-55 °C	Flash	Tin	3 A	Board	0.185 in	UL94 V-0	0.05 in	Female Socket	Solder	1	Receptacle	45	Black	Through Hole	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin
Mill-Max Manufacturing Corp. 851-47-033-20-001000	Push-Pull	0.118 in	Gold	All	125 °C	-55 °C	Flash	Tin	3 A	Board	0.087 in	UL94 V-0	0.05 in	Female Socket	Solder	1	Receptacle	33	Black	Right Angle Through Hole	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin
Mill-Max Manufacturing Corp. 851-47-018-20-001000	Push-Pull	0.118 in	Gold	All	125 °C	-55 °C	Flash	Tin	3 A	Board	0.087 in	UL94 V-0	0.05 in	Female Socket	Solder	1	Receptacle	18	Black	Right Angle Through Hole	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin
Mill-Max Manufacturing Corp. 851-47-034-20-001000	Push-Pull	0.118 in	Gold	All	125 °C	-55 °C	Flash	Tin	3 A	Board	0.087 in	UL94 V-0	0.05 in	Female Socket	Solder	1	Receptacle	34	Black	Right Angle Through Hole	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin
Mill-Max Manufacturing Corp. 851-47-033-10-002000	Push-Pull	0.115 in	Gold	All	125 °C	-55 °C	Flash	Tin	3 A	Board	0.185 in	UL94 V-0	0.05 in	Female Socket	Solder	1	Receptacle	33	Black	Through Hole	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin
Mill-Max Manufacturing Corp. 851-47-038-10-002000	Push-Pull	0.115 in	Gold	All	125 °C	-55 °C	Flash	Tin	3 A	Board	0.185 in	UL94 V-0	0.05 in	Female Socket	Solder	1	Receptacle	38	Black	Through Hole	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin
Mill-Max Manufacturing Corp. 851-47-029-10-002000	Push-Pull	0.115 in	Gold	All	125 °C	-55 °C	Flash	Tin	3 A	Board	0.185 in	UL94 V-0	0.05 in	Female Socket	Solder	1	Receptacle	29	Black	Through Hole	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin
Mill-Max Manufacturing Corp. 851-47-001-10-001000	Push-Pull	0.099 in	Gold	All	125 °C	-55 °C	Flash	Tin	3 A	Board	0.161 in	UL94 V-0		Female Socket	Solder	1	Receptacle	1	Black	Through Hole	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

851-47-004-10-002000 | Datasheet
