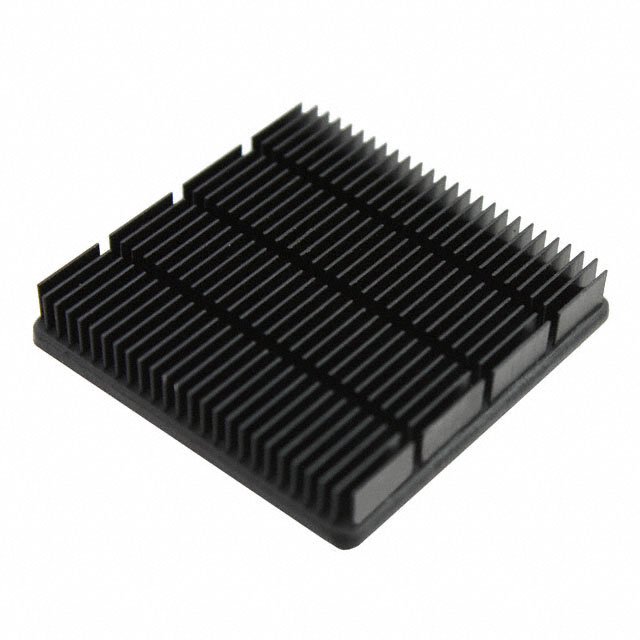

APF40-40-06CB/A01

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK FORGED W/ADHESIVE TAPE

Search across all available documentation for this part.

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK FORGED W/ADHESIVE TAPE

Technical Specifications

Parameters and characteristics for this part

Specification	APF40-40-06CB/A01

Attachment Method	Thermal Tape, Adhesive (Included)
Fin Height [z]	6.35 mm
Fin Height [z]	0.25 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Square, Fins
Shelf Life	24 Months
Thermal Resistance @ Forced Air Flow	3.3 °C/W
Type	Top Mount
Width [x]	1.575 in
Width [x]	40 mm

Part	Fin Height [z]	Fin Height [z]	Material Finish	Width [x]	Width [x]	Material	Package Cooled	Thermal Resistance @ Forced Air Flow	Shelf Life	Attachment Method	Type	Shape	Fin Height [z]
Tusonix a Subsidiary of CTS Electronic Components APF40-40-06CB/A01	6.35 mm	0.25 in	Black Anodized	1.575 in	40 mm	Aluminum	ASIC BGA CPU LGA	3.3 °C/W	24 Months	Thermal Tape Adhesive (Included)	Top Mount	Fins Square
Tusonix a Subsidiary of CTS Electronic Components APF40-40-10CB	0.37 "		Black Anodized	1.575 in	40 mm	Aluminum	ASIC BGA CPU LGA	2.5 °C/W 200 LFM		Thermal Tape Adhesive (Not Included)	Top Mount	Fins Square	9.4 mm
Tusonix a Subsidiary of CTS Electronic Components APF40-40-06CB	6.35 mm	0.25 in	Black Anodized	1.575 in	40 mm	Aluminum	ASIC BGA CPU LGA	3.3 °C/W		Thermal Tape Adhesive (Not Included)	Top Mount	Fins Square
Tusonix a Subsidiary of CTS Electronic Components APF40-40-13CB	12.7 mm	0.5 in	Black Anodized	1.575 in	40 mm	Aluminum	ASIC BGA CPU LGA	1.9 °C/W		Thermal Tape Adhesive (Not Included)	Top Mount	Fins Square
Tusonix a Subsidiary of CTS Electronic Components APF40-40-10CB/A01	0.37 "		Black Anodized	1.575 in	40 mm	Aluminum	ASIC BGA CPU LGA	2.5 °C/W 200 LFM	24 Months	Thermal Tape Adhesive (Included)	Top Mount	Fins Square	9.4 mm
Tusonix a Subsidiary of CTS Electronic Components APF40-40-13CB/A01	12.7 mm	0.5 in	Black Anodized	1.575 in	40 mm	Aluminum	ASIC BGA CPU LGA	1.9 °C/W	24 Months	Thermal Tape Adhesive (Included)	Top Mount	Fins Square

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
