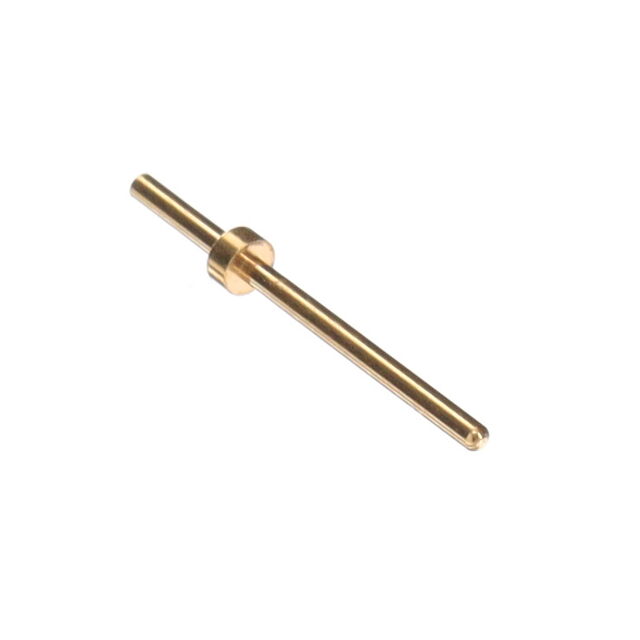

3128-1-00-21-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .020DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
3128-1-00-21-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .020DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3128-1-00-21-00-00-08-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.17 mm |
| Flange Diameter [diameter] | 0.046 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 6.35 mm |
| Length - Above Flange [x] | 0.25 " |
| Length - Below Flange [x] | 0.1 in |
| Length - Below Flange [x] | 2.54 mm |
| Length - Overall [x] | 0.37 in |
| Length - Overall [x] | 9.4 mm |
| Mounting Hole Diameter [diameter] | 0.61 mm |
| Mounting Hole Diameter [diameter] | 0.024 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.51 mm |
| Pin Size - Above Flange [diameter] | 0.02 in |
| Pin Size - Below Flange [diameter] | 0.51 mm |
| Pin Size - Below Flange [diameter] | 0.02 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.87 | |
| 10 | $ 0.74 | |||
| 25 | $ 0.71 | |||
| 50 | $ 0.69 | |||
| 100 | $ 0.66 | |||
| 250 | $ 0.60 | |||
| 500 | $ 0.54 | |||
| 1000 | $ 0.48 | |||
| 3000 | $ 0.44 | |||
Description
General part information
3128-1 Series
PC Pin Terminal Connector Through Hole Gold 0.020" (0.51mm) Dia
Documents
Technical documentation and resources
No documents available
