3128-1-00-80-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC
Deep-Dive with AI
Search across all available documentation for this part.
3128-1-00-80-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3128-1-00-80-00-00-08-0 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass |
| Flange Diameter [diameter] | 1.17 mm |
| Flange Diameter [diameter] | 0.046 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 6.35 mm |
| Length - Above Flange [x] | 0.25 " |
| Length - Below Flange [x] | 0.1 in |
| Length - Below Flange [x] | 2.54 mm |
| Length - Overall [x] | 32.26 mm |
| Length - Overall [x] | 1.27 in |
| Mounting Hole Diameter [diameter] | 0.61 mm |
| Mounting Hole Diameter [diameter] | 0.024 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.51 mm |
| Pin Size - Above Flange [diameter] | 0.02 in |
| Pin Size - Below Flange [diameter] | 0.51 mm |
| Pin Size - Below Flange [diameter] | 0.02 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.73 | |
| 10 | $ 0.62 | |||
| 100 | $ 0.56 | |||
| 1000 | $ 0.40 | |||
| 5000 | $ 0.35 | |||
| 10000 | $ 0.34 | |||
Description
General part information
3128-1 Series

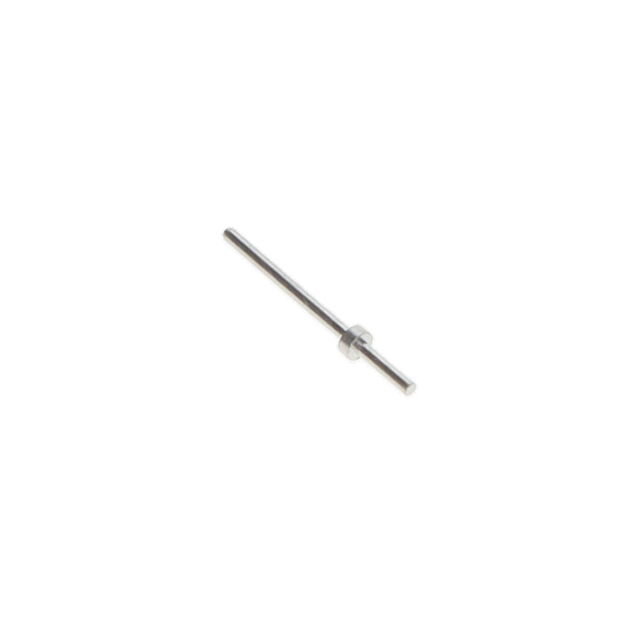

PC Pin Terminal Connector Through Hole Tin 0.020" (0.51mm) Dia
