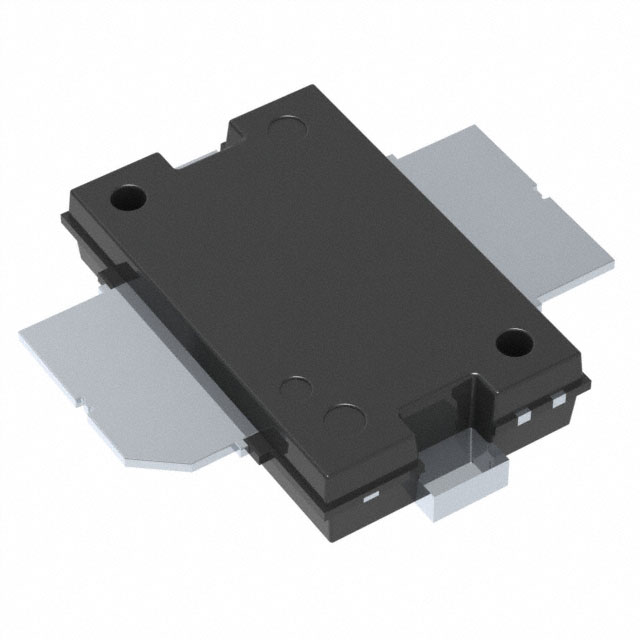

BLP9G0722-20Z

Ampleon USA Inc.

RF MOSFET LDMOS 28V SOT1482-1

Search across all available documentation for this part.

Ampleon USA Inc.

RF MOSFET LDMOS 28V SOT1482-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Mosfet 28 V 180 mA 400MHz ~ 2.7GHz 19dB 43dBm SOT-1482-1

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	BLP9G0722-20Z	BLP9 Series

Configuration	-	Dual, N-Channel, 2 N-Channel (Dual) Common Source, Common Source
Current - Test	-	1.4 A
Current Rating (Amps)	1.4 µA	1.4 - 2.8 µA
Frequency	-	941 MHz
Frequency [Max]	2.7 GHz	2.7 - 960 MHz
Frequency [Min]	400 MHz	400 - 617 MHz
Gain	19 dB	17.8 - 19 dB
Mounting Type	Surface Mount	Surface Mount
Package / Case	SOT-1482-1	OMP-780-6F-1, TO-270AA, SOT-1483-1, OMP-1230-6F-1, TO-270BA, SOT-1482-1
Power - Output	43 dBm	25 - 850 W
Supplier Device Package	SOT-1482-1	OMP-780-6F-1, TO-270-2F-1, SOT1483-1, OMP-1230-6F-1, TO-270-2G-1, SOT-1482-1
Technology	-	LDMOS (Dual), Common Source
Voltage - Rated	65 V	40 - 105 V
Voltage - Test	28 V	13.6 - 300 mV

RF MOSFET LDMOS 300 MV OMP780

Part	Mounting Type	Package / Case	Voltage - Test	Voltage - Rated	Gain	Current Rating (Amps)	Frequency [Min]	Frequency [Max]	Configuration	Power - Output	Supplier Device Package	Frequency	Current - Test	Technology
Ampleon USA Inc. BLP9H10S-500AWTY	Surface Mount	OMP-780-6F-1	300 mV	105 V	18.3 dB	1.4 µA	600 MHz	960 MHz	Dual	500 W	OMP-780-6F-1
Ampleon USA Inc. BLP9LA25SXY	Surface Mount	TO-270AA	13.6 V	40 V	18.4 dB	1.4 µA			N-Channel	25 W	TO-270-2F-1	941 MHz
Ampleon USA Inc. BLP9G0722-20GZ	Surface Mount	SOT-1483-1	28 V	65 V	19 dB	1.4 µA	400 MHz	2.7 GHz		43 dBm	SOT1483-1
Ampleon USA Inc. BLP9H10S-850AVTZ	Surface Mount	OMP-1230-6F-1	50 V	105 V	17.8 dB	2.8 µA	617 MHz	960 MHz	2 N-Channel (Dual) Common Source	850 W	OMP-1230-6F-1		1.4 A	LDMOS (Dual), Common Source
Ampleon USA Inc. BLP9LA25SGXY	Surface Mount	TO-270BA	13.6 V	40 V	18.4 dB	1.4 µA			N-Channel	25 W	TO-270-2G-1	941 MHz
Ampleon USA Inc. BLP9H10-30GZ	Surface Mount	SOT-1483-1									SOT1483-1
Ampleon USA Inc. BLP9G0722-20Z	Surface Mount	SOT-1482-1	28 V	65 V	19 dB	1.4 µA	400 MHz	2.7 GHz		43 dBm	SOT-1482-1
Ampleon USA Inc. BLP9H10S-850AVTY		OMP-1230-6F-1	50 V	105 V	17.8 dB	2.8 µA	617 MHz	960 MHz	Common Source, Dual	850 W	OMP-1230-6F-1		1.4 A
