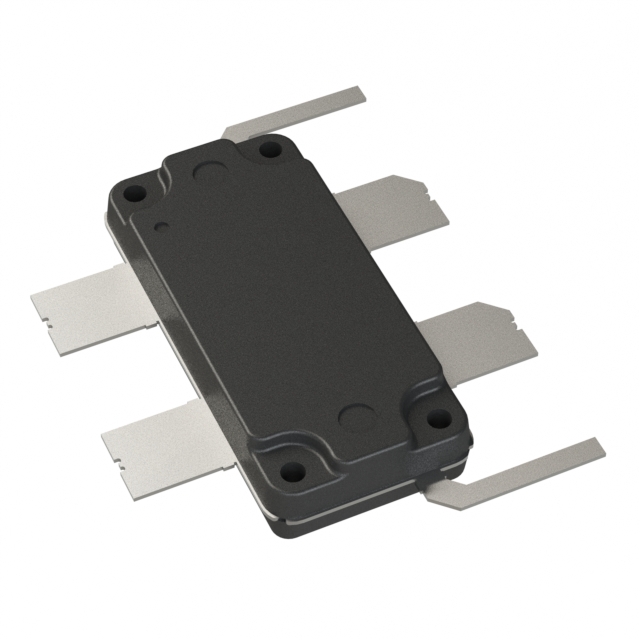

BLP9H10S-500AWTY

Active

Ampleon USA Inc.

RF MOSFET LDMOS 300 MV OMP780

Search across all available documentation for this part.

Active

Ampleon USA Inc.

RF MOSFET LDMOS 300 MV OMP780

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Mosfet 300 mV 500 mA 600MHz ~ 960MHz 18.3dB 500W OMP-780-6F-1

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	BLP9H10S-500AWTY	BLP9 Series

Configuration	Dual	Dual, N-Channel, 2 N-Channel (Dual) Common Source, Common Source
Current - Test	-	1.4 A
Current Rating (Amps)	1.4 µA	1.4 - 2.8 µA
Frequency	-	941 MHz
Frequency [Max]	960 MHz	2.7 - 960 MHz
Frequency [Min]	600 MHz	400 - 617 MHz
Gain	18.3 dB	17.8 - 19 dB
Mounting Type	Surface Mount	Surface Mount
Package / Case	OMP-780-6F-1	OMP-780-6F-1, TO-270AA, SOT-1483-1, OMP-1230-6F-1, TO-270BA, SOT-1482-1
Power - Output	500 W	25 - 850 W
Supplier Device Package	OMP-780-6F-1	OMP-780-6F-1, TO-270-2F-1, SOT1483-1, OMP-1230-6F-1, TO-270-2G-1, SOT-1482-1
Technology	-	LDMOS (Dual), Common Source
Voltage - Rated	105 V	40 - 105 V
Voltage - Test	300 mV	13.6 - 300 mV

RF MOSFET LDMOS 300 MV OMP780

Part	Mounting Type	Package / Case	Voltage - Test	Voltage - Rated	Gain	Current Rating (Amps)	Frequency [Min]	Frequency [Max]	Configuration	Power - Output	Supplier Device Package	Frequency	Current - Test	Technology
Ampleon USA Inc. BLP9H10S-500AWTY	Surface Mount	OMP-780-6F-1	300 mV	105 V	18.3 dB	1.4 µA	600 MHz	960 MHz	Dual	500 W	OMP-780-6F-1
Ampleon USA Inc. BLP9LA25SXY	Surface Mount	TO-270AA	13.6 V	40 V	18.4 dB	1.4 µA			N-Channel	25 W	TO-270-2F-1	941 MHz
Ampleon USA Inc. BLP9G0722-20GZ	Surface Mount	SOT-1483-1	28 V	65 V	19 dB	1.4 µA	400 MHz	2.7 GHz		43 dBm	SOT1483-1
Ampleon USA Inc. BLP9H10S-850AVTZ	Surface Mount	OMP-1230-6F-1	50 V	105 V	17.8 dB	2.8 µA	617 MHz	960 MHz	2 N-Channel (Dual) Common Source	850 W	OMP-1230-6F-1		1.4 A	LDMOS (Dual), Common Source
Ampleon USA Inc. BLP9LA25SGXY	Surface Mount	TO-270BA	13.6 V	40 V	18.4 dB	1.4 µA			N-Channel	25 W	TO-270-2G-1	941 MHz
Ampleon USA Inc. BLP9H10-30GZ	Surface Mount	SOT-1483-1									SOT1483-1
Ampleon USA Inc. BLP9G0722-20Z	Surface Mount	SOT-1482-1	28 V	65 V	19 dB	1.4 µA	400 MHz	2.7 GHz		43 dBm	SOT-1482-1
Ampleon USA Inc. BLP9H10S-850AVTY		OMP-1230-6F-1	50 V	105 V	17.8 dB	2.8 µA	617 MHz	960 MHz	Common Source, Dual	850 W	OMP-1230-6F-1		1.4 A
