M80-263F203-00-00
ActiveHarwin Inc.

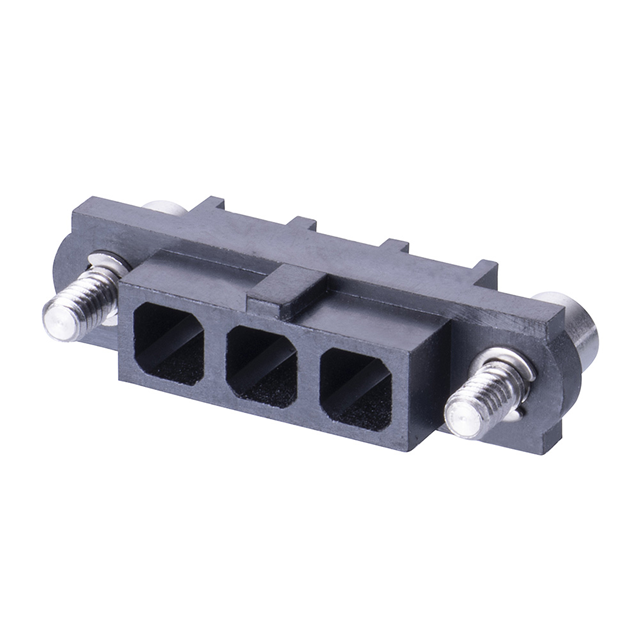

CONNECTOR HOUSING, DATAMATE MIX-TEK M80 SERIES, RECEPTACLE, 3 POSITIONS, 4 MM
Deep-Dive with AI
Search across all available documentation for this part.
M80-263F203-00-00
ActiveHarwin Inc.
CONNECTOR HOUSING, DATAMATE MIX-TEK M80 SERIES, RECEPTACLE, 3 POSITIONS, 4 MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-263F203-00-00 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp and Solder |
| Contact Type | Female Socket |
| Features | Polarizing Key, Jackscrews |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 4 mm |
| Pitch [x] | 0.157 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M80-263 Series
3 (Coax or Power) Rectangular Connectors - Housings Receptacle Black 0.157" (4.00mm)
