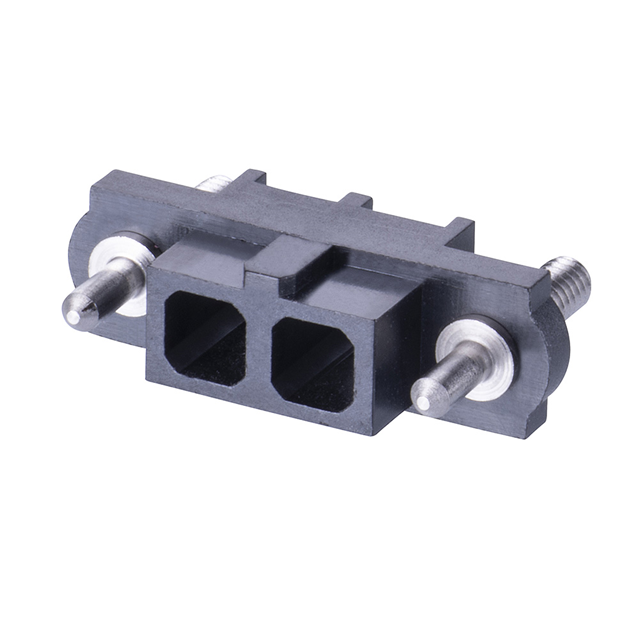

Specification	M80-263F302-00-00

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp and Solder, Crimp, Solder
Contact Type	Female Socket
Fastening Type	Screw Lock
Features	Jackscrews, Polarizing Key
Insulation Material	Polyphenylene Sulfide (PPS)
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch	0.157 in
Position Types	Coax, Power

M80 Series

Part	Note	Fastening Type	Number of Positions	Position Types	Insulation Material	Contact Termination	Color	Features	Mounting Type	Pitch	Connector Type	Contact Type	Operating Temperature (Max)	Operating Temperature (Min)	Number of Rows	Number of Positions (Total)	Number of Positions (Standard)	Number of Positions (Special)
Harwin Inc. M80-263F303-00-00	Contacts Not Included	Screw Lock	3	Coax Power	Polyphenylene Sulfide (PPS)	Crimp Crimp and Solder Solder	Black	Jackscrews Polarizing Key	Panel Mount	0.157 in	Receptacle	Female Socket	125 °C	-55 °C	1
Harwin Inc. M80-263F104-00-00	Contacts Not Included	Screw Lock	4	Coax Power	Polyphenylene Sulfide (PPS)	Crimp Crimp and Solder Solder	Black	Jackscrews Polarizing Key	Free Hanging (In-Line)	0.157 in	Receptacle	Female Socket	125 °C	-55 °C
Harwin Inc. M80-263F203-00-00	Contacts Not Included	Screw Lock	3	Coax Power	Polyphenylene Sulfide (PPS)	Crimp Crimp and Solder Solder	Black	Jackscrews Polarizing Key	Free Hanging (In-Line)	0.157 in	Receptacle	Female Socket	125 °C	-55 °C	1
Harwin Inc. M80-263F102-08-00	Contacts Not Included	Screw Lock		Coax Power	Polyphenylene Sulfide (PPS)	Crimp Crimp and Solder Solder	Black	Jackscrews Polarizing Key	Free Hanging (In-Line)		Receptacle	Female Socket	125 °C	-55 °C		10	8	2
