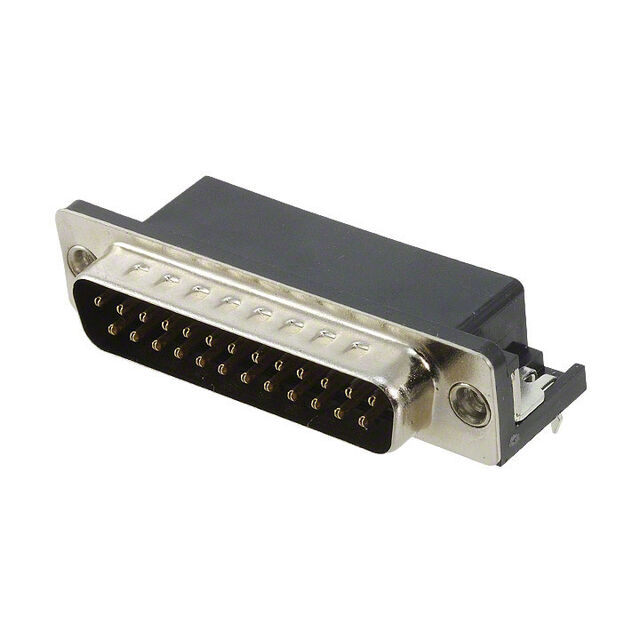

Specification	SDS107-PRP1-M25-SN13-12

Backset Spacing	0.37 in
Color	Black
Connector Layout	DB, B
Connector Style	D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating	3 A
Dielectric Material	Glass Filled, Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Board Lock
Finish	Nickel Plated
Flange Feature	Shell (4-40), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	25
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	3
Termination	Solder
Voltage Rating	250 V

SDS107 Series

Part	Material Flammability Rating	Current Rating	Connector Type	Features	Termination	Flange Feature	Mounting Type	Backset Spacing	Contact Type	Connector Style	Finish	Shell Material	Shell Size	Connector Layout	Number of Positions	Contact Finish Thickness (string set options)	Contact Finish Thickness	Contact Finish	Number of Rows	Voltage Rating	Color	Dielectric Material	Contact Form	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material
Sullins Connector Solutions SDS107-PRP2-F15-SN63-11	UL94 V-0	3 A	Female Sockets Receptacle	Board Lock	Solder	Female Screwlock (4-40) Mating Side	Right Angle Through Hole	0.283 in	Signal	D-Sub	Tin Plated	Steel	2	A DA	15	Flash	Flash	Gold	2	250 V	Black	Glass Filled Polybutylene Terephthalate (PBT)	Stamped	-55 °C	105 °C	Brass
Sullins Connector Solutions SDS107-PRW2-M25-SN11-11	UL94 V-0	3 A	Male Pins Plug	Ground Strap Grounding Indents	Solder	Housing Shell (4-40)	Right Angle Through Hole	0.283 in	Signal	D-Sub	Tin Plated	Steel	3	B DB	25	Flash	Flash	Gold	2	250 V	Black	Glass Filled Polybutylene Terephthalate (PBT)	Stamped	-55 °C	105 °C	Brass
Sullins Connector Solutions SDS107-PRW2-M25-SN63-11	UL94 V-0	3 A	Male Pins Plug	Board Lock Grounding Indents	Solder	Female Screwlock (4-40) Mating Side	Right Angle Through Hole	0.283 in	Signal	D-Sub	Tin Plated	Steel	3	B DB	25	Flash	Flash	Gold	2	250 V	Black	Glass Filled Polybutylene Terephthalate (PBT)	Stamped	-55 °C	105 °C	Brass
Sullins Connector Solutions SDS-107-PRW2-M25-SN13-11	UL94 V-0	3 A	Male Pins Plug	Board Lock Grounding Indents	Solder	Housing Shell (4-40)	Right Angle Through Hole	0.283 in	Signal	D-Sub	Tin Plated	Steel	3	B DB	25	Flash	Flash	Gold	2	250 V	Black	Glass Filled Polybutylene Terephthalate (PBT)	Stamped	-55 °C	105 °C	Brass
Sullins Connector Solutions SDS107-PRP1-F09-SN13-12	UL94 V-0	3 A	Female Sockets Receptacle	Board Lock	Solder	Housing Shell (4-40)	Right Angle Through Hole	0.37 in	Signal	D-Sub	Nickel Plated	Steel	1	DE E	9	Flash	Flash	Gold	2	250 V	Black	Glass Filled Polybutylene Terephthalate (PBT)	Stamped	-55 °C	105 °C	Brass
Sullins Connector Solutions SDS107-PRP1-M25-SN13-12	UL94 V-0	3 A	Male Pins Plug	Board Lock Grounding Indents	Solder	Housing Shell (4-40)	Right Angle Through Hole	0.37 in	Signal	D-Sub	Nickel Plated	Steel	3	B DB	25	Flash	Flash	Gold	2	250 V	Black	Glass Filled Polybutylene Terephthalate (PBT)	Stamped	-55 °C	105 °C	Brass
Sullins Connector Solutions SDS107-PRW1-F25-SN23-11	UL94 V-0	3 A	Female Sockets Receptacle	Board Lock	Solder	Female Screwlock (4-40) Mating Side	Right Angle Through Hole	0.283 in	Signal	D-Sub	Nickel Plated	Steel	3	B DB	25	Flash	Flash	Gold	2	250 V	Black	Glass Filled Polybutylene Terephthalate (PBT)	Stamped	-55 °C	105 °C	Brass
Sullins Connector Solutions SDS-107-PRW2-F37-SN13-11	UL94 V-0	3 A	Female Sockets Receptacle	Board Lock	Solder	Housing Shell (4-40)	Right Angle Through Hole	0.283 in	Signal	D-Sub	Tin Plated	Steel	4	C DC	37 pos	Flash	Flash	Gold	2	250 V	Black	Glass Filled Polybutylene Terephthalate (PBT)	Stamped	-55 °C	105 °C	Brass
Sullins Connector Solutions SDS107-PRW2-M09-SN63-11	UL94 V-0	3 A	Male Pins Plug	Board Lock Grounding Indents	Solder	Female Screwlock (4-40) Mating Side	Right Angle Through Hole	0.283 in	Signal	D-Sub	Tin Plated	Steel	1	DE E	9	Flash	Flash	Gold	2	250 V	Black	Glass Filled Polybutylene Terephthalate (PBT)	Stamped	-55 °C	105 °C	Brass
Sullins Connector Solutions SDS107-PRP2-F09-SN23-11	UL94 V-0	3 A	Female Sockets Receptacle	Board Lock	Solder	Female Screwlock (4-40) Mating Side	Right Angle Through Hole	0.283 in	Signal	D-Sub	Tin Plated	Steel	1	DE E	9	Flash	Flash	Gold	2	250 V	Black	Glass Filled Polybutylene Terephthalate (PBT)	Stamped	-55 °C	105 °C	Brass
