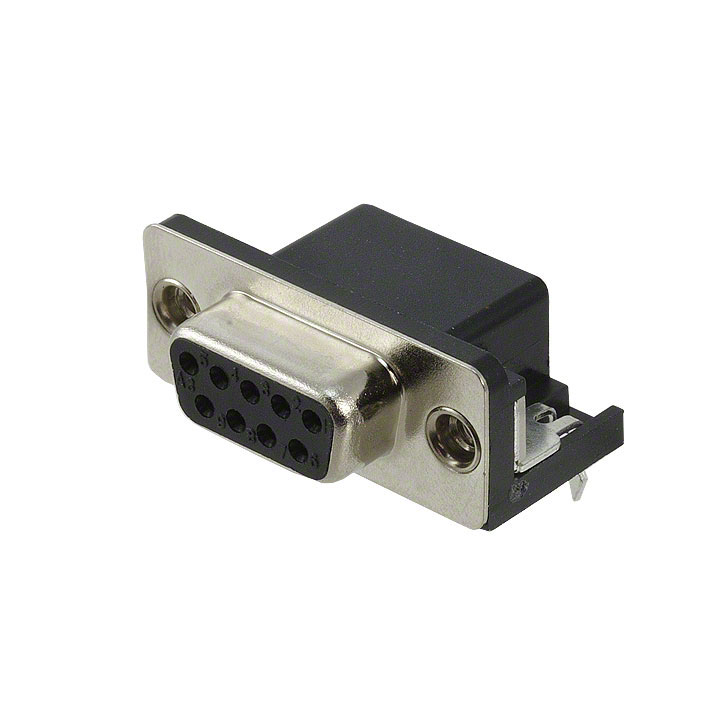

SDS107-PRP1-F09-SN13-12

Obsolete

Sullins Connector Solutions

CONN D-SUB RCPT 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDS107-PRP1-F09-SN13-12

Obsolete

Sullins Connector Solutions

CONN D-SUB RCPT 9POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDS107-PRP1-F09-SN13-12

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	250 VDC

SDS107 Series

Part	Color	Flange Feature	Current Rating (Amps)	Backset Spacing	Backset Spacing	Connector Style	Number of Positions	Voltage Rating	Termination	Connector Type	Mounting Type	Contact Material	Material Flammability Rating	Dielectric Material	Contact Form	Number of Rows	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size, Connector Layout	Contact Type	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Features	Shell Material, Finish	Shell Size, Connector Layout
Sullins Connector Solutions SDS107-PRP2-F15-SN63-11	Black	Female Screwlock (4-40) Mating Side	3 A	0.283 in	7.2 mm	D-Sub	15	250 VDC	Solder	Receptacle Female Sockets	Through Hole Right Angle	Brass	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Stamped	2	Gold	105 ░C	-55 °C	2	Signal	Flash
Sullins Connector Solutions SDS107-PRW2-M25-SN63-11	Black	Female Screwlock (4-40) Mating Side	3 A	0.283 in	7.2 mm	D-Sub		250 VDC	Solder	Male Pins Plug	Through Hole Right Angle	Brass	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Stamped	2	Gold	105 ░C	-55 °C		Signal	Flash	B DB	3	Board Lock Grounding Indents
Sullins Connector Solutions SDS-107-PRW2-M25-SN13-11	Black	Housing/Shell (4-40)	3 A	0.283 in	7.2 mm	D-Sub		250 VDC	Solder	Male Pins Plug	Through Hole Right Angle	Brass	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Stamped	2	Gold	105 ░C	-55 °C		Signal	Flash	B DB	3	Board Lock Grounding Indents
Sullins Connector Solutions SDS107-PRP1-F09-SN13-12	Black	Housing/Shell (4-40)	3 A	0.37 in	9.4 mm	D-Sub	9	250 VDC	Solder	Receptacle Female Sockets	Through Hole Right Angle	Brass	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Stamped	2	Gold	105 ░C	-55 °C		Signal	Flash	DE E	1		Nickel Plated Steel
Sullins Connector Solutions SDS107-PRP1-M25-SN13-12	Black	Housing/Shell (4-40)	3 A	0.37 in	9.4 mm	D-Sub		250 VDC	Solder	Male Pins Plug	Through Hole Right Angle	Brass	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Stamped	2	Gold	105 ░C	-55 °C		Signal	Flash	B DB	3	Board Lock Grounding Indents	Nickel Plated Steel
Sullins Connector Solutions SDS107-PRW1-F25-SN23-11	Black	Female Screwlock (4-40) Mating Side	3 A	0.283 in	7.2 mm	D-Sub		250 VDC	Solder	Receptacle Female Sockets	Through Hole Right Angle	Brass	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Stamped	2	Gold	105 ░C	-55 °C		Signal	Flash	B DB	3		Nickel Plated Steel
Sullins Connector Solutions SDS-107-PRW2-F37-SN13-11	Black	Housing/Shell (4-40)	3 A	0.283 in	7.2 mm	D-Sub	37	250 VDC	Solder	Receptacle Female Sockets	Through Hole Right Angle	Brass	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Stamped	2	Gold	105 ░C	-55 °C		Signal	Flash					4 (DC C)
Sullins Connector Solutions SDS107-PRW2-M09-SN63-11	Black	Female Screwlock (4-40) Mating Side	3 A	0.283 in	7.2 mm	D-Sub	9	250 VDC	Solder	Male Pins Plug	Through Hole Right Angle	Brass	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Stamped	2	Gold	105 ░C	-55 °C		Signal	Flash	DE E	1	Board Lock Grounding Indents
Sullins Connector Solutions SDS107-PRP2-F09-SN23-11	Black	Female Screwlock (4-40) Mating Side	3 A	0.283 in	7.2 mm	D-Sub	9	250 VDC	Solder	Receptacle Female Sockets	Through Hole Right Angle	Brass	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Stamped	2	Gold	105 ░C	-55 °C		Signal	Flash	DE E	1
Sullins Connector Solutions SDS107-PRP2-M09-SN33-11	Black	Female Screwlock (4-40) Mating Side	3 A	0.283 in	7.2 mm	D-Sub	9	250 VDC	Solder	Male Pins Plug	Through Hole Right Angle	Brass	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Stamped	2	Gold	105 ░C	-55 °C		Signal	Flash	DE E	1	Board Lock Grounding Indents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SDS107 Series

9 Position D-Sub Receptacle, Female Sockets Connector
