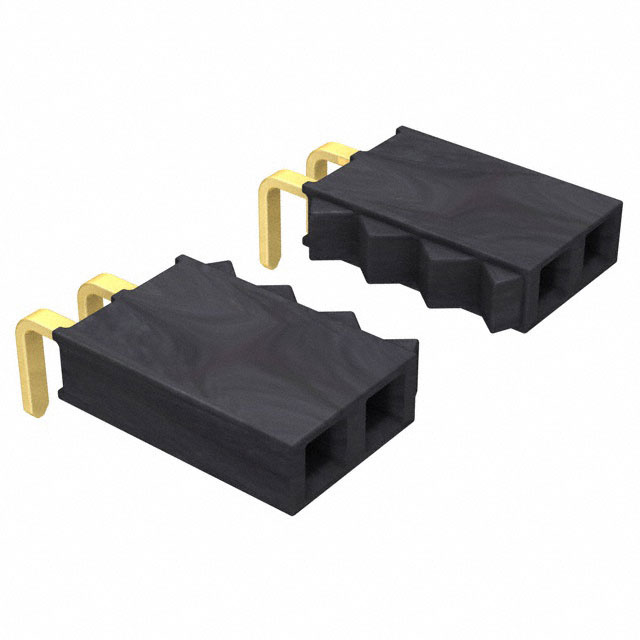

SSW-139-02-G-S-RA

Active

Samtec Inc.

CONN RCPT 39POS 0.1 GOLD PCB R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SSW-139-02-G-S-RA

Active

Samtec Inc.

CONN RCPT 39POS 0.1 GOLD PCB R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSW-139-02-G-S-RA

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	4.7 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.095 in
Insulation Height [z]	2.41 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	39
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Style	Board to Board, Cable
Termination	Solder

SSW-139 Series

Part	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Connector Type	Style	Contact Length - Post	Contact Length - Post	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Shape	Current Rating (Amps)	Insulation Material	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Number of Rows	Mounting Type	Contact Material	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Type	Number of Positions	Number of Positions Loaded	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded
Samtec Inc. SSW-139-02-G-S-RA	0.095 in	2.41 mm	3 µin	0.076 µm	Gold	Receptacle	Board to Board Cable	2.54 mm	0.1 in	Push-Pull	0.51 µm	20 µin	UL94 V-0	Square	4.7 A	Liquid Crystal Polymer (LCP)	Gold	0.1 in	2.54 mm	1	Through Hole Right Angle	Phosphor Bronze	Black	-55 °C	125 °C	Solder	Forked	39	All
Samtec Inc. SSW-139-01-G-S			3 µin	0.076 µm	Gold	Receptacle	Board to Board Cable	2.64 mm	0.104 in	Push-Pull	0.51 µm	20 µin	UL94 V-0	Square	4.7 A	Liquid Crystal Polymer (LCP)	Gold	0.1 in	2.54 mm	1	Through Hole	Phosphor Bronze	Black	-55 °C	125 °C	Solder	Forked	39	All	0.335 "	8.51 mm
Samtec Inc. SSW-139-22-G-S-RA	0.095 in	2.41 mm	3 µin	0.076 µm	Gold	Receptacle	Board to Board Cable	2.54 mm	0.1 in	Push-Pull	0.51 µm	20 µin	UL94 V-0	Square	4.7 A	Liquid Crystal Polymer (LCP)	Gold	0.1 in	2.54 mm	1	Through Hole Right Angle	Phosphor Bronze	Black	-55 °C	125 °C	Solder	Forked	39	All
Samtec Inc. SSW-139-06-G-T			3 µin	0.076 µm	Gold	Receptacle	Board to Board Cable	3.15 mm	0.124 "	Push-Pull	0.51 µm	20 µin	UL94 V-0	Square	4.7 A	Liquid Crystal Polymer (LCP)	Gold	0.1 in	2.54 mm	3	Through Hole	Phosphor Bronze	Black	-55 °C	125 °C	Solder	Forked	117	All	0.335 "	8.51 mm	2.54 mm	0.1 in
Samtec Inc. SSW-139-02-S-S-RA	0.095 in	2.41 mm			Tin	Receptacle	Board to Board Cable	2.54 mm	0.1 in	Push-Pull	0.76 Ám	30 Áin	UL94 V-0	Square	4.7 A	Liquid Crystal Polymer (LCP)	Gold	0.1 in	2.54 mm	1	Through Hole Right Angle	Phosphor Bronze	Black	-55 °C	125 °C	Solder	Forked	39	All
Samtec Inc. SSW-139-21-S-D					Tin	Receptacle	Board to Board Cable	2.64 mm	0.104 in	Push-Pull	0.76 Ám	30 Áin	UL94 V-0	Square	4.7 A	Liquid Crystal Polymer (LCP)	Gold	0.1 in	2.54 mm	2	Through Hole	Phosphor Bronze	Black	-55 °C	125 °C	Solder	Forked	78	All	0.335 "	8.51 mm	2.54 mm	0.1 in
Samtec Inc. SSW-139-22-S-Q-RA					Tin	Receptacle	Board to Board Cable	2.54 mm	0.1 in	Push-Pull	0.76 Ám	30 Áin	UL94 V-0	Square	4.7 A	Liquid Crystal Polymer (LCP)	Gold	0.1 in	2.54 mm	3	Through Hole Right Angle	Phosphor Bronze	Black	-55 °C	125 °C	Solder	Forked	117		0.295 in	7.5 mm	2.54 mm	0.1 in	78
Samtec Inc. SSW-139-03-T-S					Tin	Receptacle	Board to Board Cable	10 mm	0.394 in	Push-Pull			UL94 V-0	Square	4.7 A	Liquid Crystal Polymer (LCP)		0.1 in	2.54 mm	1	Through Hole	Phosphor Bronze	Black	-55 °C	105 ░C	Solder	Forked	39	All	0.335 "	8.51 mm
Samtec Inc. SSW-139-01-T-D					Tin	Receptacle	Board to Board Cable	2.64 mm	0.104 in	Push-Pull			UL94 V-0	Square	4.7 A	Liquid Crystal Polymer (LCP)		0.1 in	2.54 mm	2	Through Hole	Phosphor Bronze	Black	-55 °C	105 ░C	Solder	Forked	78	All	0.335 "	8.51 mm	2.54 mm	0.1 in
Samtec Inc. SSW-139-22-G-D-VS			3 µin	0.076 µm	Gold	Receptacle	Board to Board Cable			Push-Pull	0.51 µm	20 µin	UL94 V-0	Square	4.7 A	Liquid Crystal Polymer (LCP)	Gold	0.1 in	2.54 mm	2	Surface Mount	Phosphor Bronze	Black	-55 °C	125 °C	Solder	Forked	78	All	0.335 "	8.51 mm	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.94
		10	$ 8.05
		100	$ 7.19
		500	$ 6.03
		1000	$ 5.33

Description

General part information

SSW-139 Series

39 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
