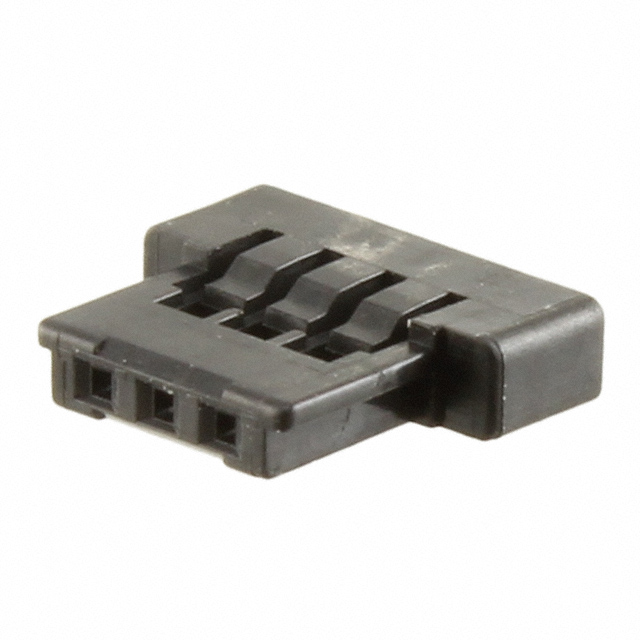

FI-S3S

Active

JAE Electronics

CONN PLUG HSG 3POS 1.25MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG HSG 3POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	FI-S3S

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Friction Lock
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Pitch [x]	0.049 in
Pitch [x]	1.25 mm

Part	Insulation Material	Number of Rows	Color	Pitch [x]	Pitch [x]	Mounting Type	Contact Termination	Fastening Type	Contact Type	Note	Connector Type	Termination	Features	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Material Flammability Rating	Insulation Height	Insulation Height	Contact Shape	Voltage Rating	Style	Contact Material	Current Rating (Amps)	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Insulation Color	Shrouding
JAE Electronics FI-S3S	Polyamide (PA66) Nylon 6/6 Glass Filled	1	Black	0.049 in	1.25 mm	Free Hanging (In-Line)	Crimp	Friction Lock	Female Socket	Contacts Not Included	Plug
JAE Electronics FI-S3P-HFE-E1500		1				Surface Mount Right Angle		Friction Lock	Male Pin		Receptacle	Solder	Solder Retention	-40 °C	80 C	All	UL94 V-0	1.8 mm	0.071 "	Square	200 V	Board to Cable/Wire	Copper Alloy	1 A	Tin or Tin-Alloy	1.25 mm	0.049 in	Gold	Beige	Shrouded - 4 Wall
JAE Electronics FI-S3P-HFE		1				Surface Mount Right Angle		Friction Lock	Male Pin		Receptacle	Solder	Solder Retention	-40 °C	80 C	All	UL94 V-0	1.8 mm	0.071 "	Square	200 V	Board to Cable/Wire	Copper Alloy	1 A	Tin or Tin-Alloy	1.25 mm	0.049 in	Gold	Beige	Shrouded - 4 Wall

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Rectangular Connectors - Housings Plug Black 0.049" (1.25mm)
