FI-S3P-HFE

Active

JAE Electronics

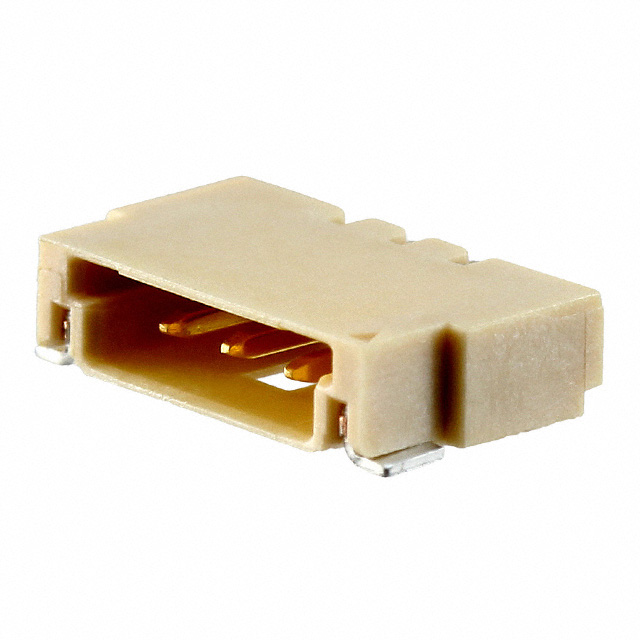

BOARD CONNECTOR, 3 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.049 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BEIGE INSULATOR

Search across all available documentation for this part.

Active

JAE Electronics

BOARD CONNECTOR, 3 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.049 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BEIGE INSULATOR

Technical Specifications

Parameters and characteristics for this part

Specification	FI-S3P-HFE

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin or Tin-Alloy
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Friction Lock
Features	Solder Retention
Insulation Color	Beige
Insulation Height	1.8 mm
Insulation Height	0.071 "
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	200 V

Part	Insulation Material	Number of Rows	Color	Pitch [x]	Pitch [x]	Mounting Type	Contact Termination	Fastening Type	Contact Type	Note	Connector Type	Termination	Features	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Material Flammability Rating	Insulation Height	Insulation Height	Contact Shape	Voltage Rating	Style	Contact Material	Current Rating (Amps)	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Insulation Color	Shrouding
JAE Electronics FI-S3S	Polyamide (PA66) Nylon 6/6 Glass Filled	1	Black	0.049 in	1.25 mm	Free Hanging (In-Line)	Crimp	Friction Lock	Female Socket	Contacts Not Included	Plug
JAE Electronics FI-S3P-HFE-E1500		1				Surface Mount Right Angle		Friction Lock	Male Pin		Receptacle	Solder	Solder Retention	-40 °C	80 C	All	UL94 V-0	1.8 mm	0.071 "	Square	200 V	Board to Cable/Wire	Copper Alloy	1 A	Tin or Tin-Alloy	1.25 mm	0.049 in	Gold	Beige	Shrouded - 4 Wall
JAE Electronics FI-S3P-HFE		1				Surface Mount Right Angle		Friction Lock	Male Pin		Receptacle	Solder	Solder Retention	-40 °C	80 C	All	UL94 V-0	1.8 mm	0.071 "	Square	200 V	Board to Cable/Wire	Copper Alloy	1 A	Tin or Tin-Alloy	1.25 mm	0.049 in	Gold	Beige	Shrouded - 4 Wall

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 3 position 0.049" (1.25mm)
