TF037-1001-D

Active

Nidec Components Corporation

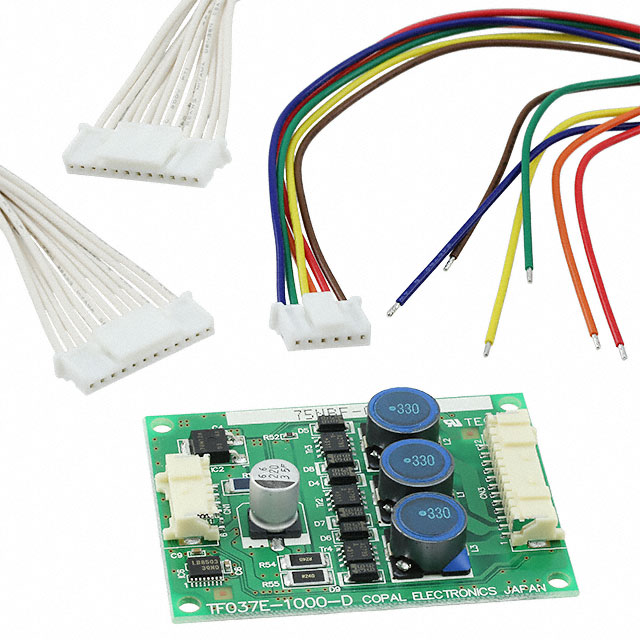

DRIVER AND HARNESS FOR TF037 BLO

Search across all available documentation for this part.

Active

Nidec Components Corporation

DRIVER AND HARNESS FOR TF037 BLO

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Driver Kit For TF037 Series

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TF037-1001-D	TF037 Series

Air Flow	-	0.098 mł/min
Air Flow	-	3.5 CFM
Bearing Type	-	Aerodynamic
Current Rating (Amps)	-	1.2 A
Fan Accessory Type	Driver Kit	Driver Kit
Fan Type	-	Blower, Centrifugal
Fits Fan Size	TF037 Series	TF037 Series
Length	2.56 "	2.56 "
Length	65 mm	65 mm
Noise	-	67 dB
Operating Temperature	-	50 °C
Operating Temperature	-	0 °C
Operating Temperature	-	0 °C
Operating Temperature	-	50 °C
Power (Watts)	-	29 W
RPM	-	40000 RPM
Size / Dimension	-	50.5 mm
Size / Dimension	-	54 mm
Static Pressure	-	4000 Pa
Static Pressure	-	16.06 in H2O
Termination	-	12 Position Rectangular Connector
Voltage - Rated	-	24 VDC
Weight	-	0.198 - 0.207 lb
Weight	-	89.81 - 93.89 g
Width	-	37.3 - 40.4 mm

FAN BLOWER 54X37.3MM AERO 24VDC

Part	Current Rating (Amps)	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	Power (Watts)	Noise	Voltage - Rated	RPM	Air Flow	Air Flow	Weight	Weight	Termination	Fan Type	Size / Dimension [z]	Size / Dimension [x]	Width [y]	Fan Accessory Type	Length	Length	Fits Fan Size
Nidec Components Corporation TF037C-2000-F	1.2 A	4000 Pa	16.06 in H2O	50 °C	0 °C	0 °C	50 °C	Aerodynamic	29 W	67 dB	24 VDC	40000 RPM	0.098 mł/min	3.5 CFM	0.198 lb	89.81 g	12 Position Rectangular Connector	Blower, Centrifugal	50.5 mm	54 mm	37.3 mm
Nidec Components Corporation TF037C-2100-F	1.2 A	4000 Pa	16.06 in H2O	50 °C	0 °C	0 °C	50 °C	Aerodynamic	29 W	67 dB	24 VDC	40000 RPM	0.098 mł/min	3.5 CFM	0.207 lb	93.89 g	12 Position Rectangular Connector	Blower, Centrifugal	50.5 mm	54 mm	40.4 mm
Nidec Components Corporation TF037-1001-D																						Driver Kit	2.56 "	65 mm	TF037 Series
