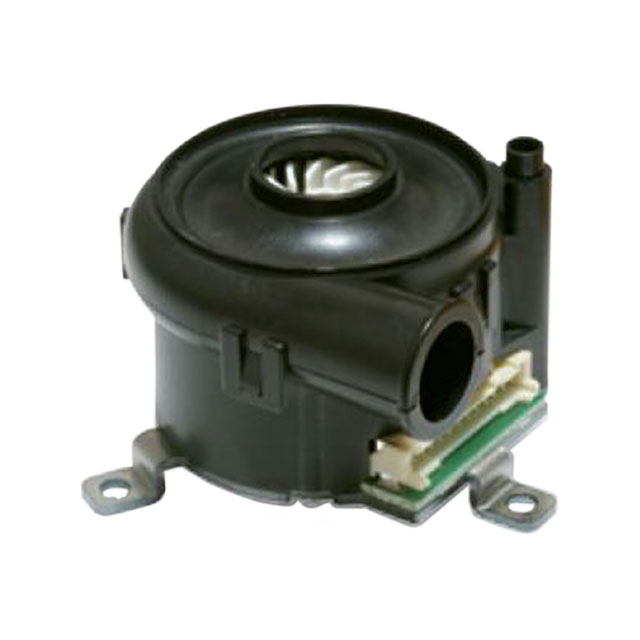

TF037C-2100-F

Active

Nidec Components Corporation

FAN BLOWER 54X40.4MM AERO 24VDC

Search across all available documentation for this part.

Active

Nidec Components Corporation

FAN BLOWER 54X40.4MM AERO 24VDC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TF037C-2100-F	TF037 Series

Air Flow	0.098 mł/min	0.098 mł/min
Air Flow	3.5 CFM	3.5 CFM
Bearing Type	Aerodynamic	Aerodynamic
Current Rating (Amps)	1.2 A	1.2 A
Fan Accessory Type	-	Driver Kit
Fan Type	Blower, Centrifugal	Blower, Centrifugal
Fits Fan Size	-	TF037 Series
Length	-	2.56 "
Length	-	65 mm
Noise	67 dB	67 dB
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	0 °C	0 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	29 W	29 W
RPM	40000 RPM	40000 RPM
Size / Dimension [x]	54 mm	54 mm
Size / Dimension [z]	50.5 mm	50.5 mm
Static Pressure	4000 Pa	4000 Pa
Static Pressure	16.06 in H2O	16.06 in H2O
Termination	12 Position Rectangular Connector	12 Position Rectangular Connector
Voltage - Rated	24 VDC	24 VDC
Weight	93.89 g	89.81 - 93.89 g
Weight	0.207 lb	0.198 - 0.207 lb
Width [y]	40.4 mm	37.3 - 40.4 mm

FAN BLOWER 54X37.3MM AERO 24VDC

Part	Current Rating (Amps)	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	Power (Watts)	Noise	Voltage - Rated	RPM	Air Flow	Air Flow	Weight	Weight	Termination	Fan Type	Size / Dimension [z]	Size / Dimension [x]	Width [y]	Fan Accessory Type	Length	Length	Fits Fan Size
Nidec Components Corporation TF037C-2000-F	1.2 A	4000 Pa	16.06 in H2O	50 °C	0 °C	0 °C	50 °C	Aerodynamic	29 W	67 dB	24 VDC	40000 RPM	0.098 mł/min	3.5 CFM	0.198 lb	89.81 g	12 Position Rectangular Connector	Blower, Centrifugal	50.5 mm	54 mm	37.3 mm
Nidec Components Corporation TF037C-2100-F	1.2 A	4000 Pa	16.06 in H2O	50 °C	0 °C	0 °C	50 °C	Aerodynamic	29 W	67 dB	24 VDC	40000 RPM	0.098 mł/min	3.5 CFM	0.207 lb	93.89 g	12 Position Rectangular Connector	Blower, Centrifugal	50.5 mm	54 mm	40.4 mm
Nidec Components Corporation TF037-1001-D																						Driver Kit	2.56 "	65 mm	TF037 Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 143.75

General part information

Fan Blower, Centrifugal 24VDC Rectangular/Rounded - 54mm L x 50.5mm H Aerodynamic 3.5 CFM (0.098mł/min) 12 Position Rectangular Connector
