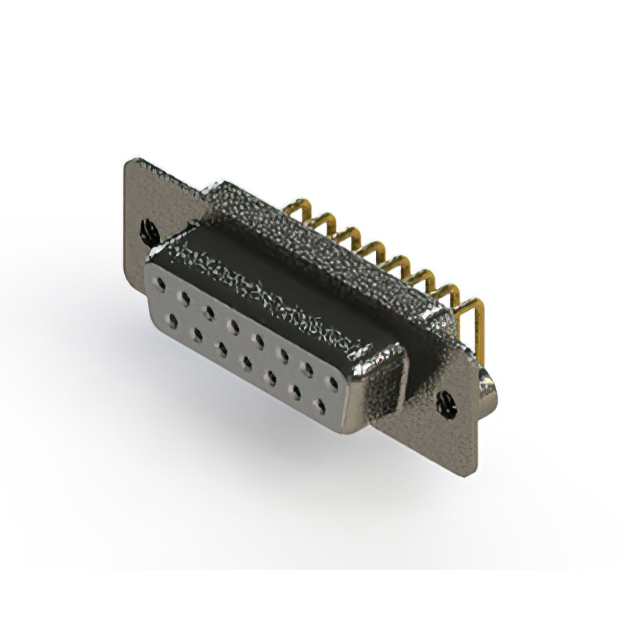

622-M15-260-WT2
ActiveEDAC Inc.
622M SERIES RIGHT ANGLE D-SUB PL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
622-M15-260-WT2
ActiveEDAC Inc.
622M SERIES RIGHT ANGLE D-SUB PL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 622-M15-260-WT2 |
|---|---|
| Backset Spacing | 0.283 in |
| Backset Spacing | 7.2 mm |
| Color | White |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA6T), Nylon 6T |
| Features | Shielded |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 2 |
| Termination | Solder |
622-M15 Series
...
| Part | Current Rating (Amps) | Number of Positions | Contact Finish Thickness | Features | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Termination | Mounting Type | Contact Type | Contact Material | Flange Feature | Dielectric Material | Backset Spacing | Backset Spacing | Contact Finish | Connector Type | Number of Rows | Color | Shell Size, Connector Layout | Material Flammability Rating | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 5 A | 15 | Flash | Board Lock Mounting Brackets Shielded | -55 °C | 125 °C | D-Sub | Solder | Board Edge Right Angle Through Hole | Signal | Copper Alloy | 4-40 | Polyamide (PA6T) Nylon 6T | 0.283 in | 7.2 mm | Gold | Receptacle Female Sockets | 2 | White | 2 | UL94 V-0 | |||
EDAC Inc. | 5 A | 15 | Mounting Brackets Shielded | -55 °C | 125 °C | D-Sub | Solder | Board Edge Right Angle Through Hole | Signal | Copper Alloy | Housing/Shell (4-40) | Polyamide (PA6T) Nylon 6T | 0.283 in | 7.2 mm | Gold | Receptacle Female Sockets | 2 | Green | 2 | UL94 V-0 | Nickel Plated Steel | 0.76 Ám | 30 Áin | |
EDAC Inc. | 5 A | 15 | Shielded | -55 °C | 125 °C | D-Sub | Solder | Board Edge Right Angle Through Hole | Signal | Copper Alloy | Housing/Shell (4-40) | Polyamide (PA6T) Nylon 6T | 0.283 in | 7.2 mm | Gold | Receptacle Female Sockets | 2 | Green | 2 | UL94 V-0 | 0.38 µm | 15 µin | ||
EDAC Inc. | 5 A | 15 | Board Lock Mounting Brackets Shielded | -55 °C | 125 °C | D-Sub | Solder | Board Edge Right Angle Through Hole | Signal | Copper Alloy | Housing/Shell (4-40) | Polyamide (PA6T) Nylon 6T | 0.283 in | 7.2 mm | Gold | Receptacle Female Sockets | 2 | Green | 2 | UL94 V-0 | Nickel Plated Steel | 0.76 Ám | 30 Áin | |
EDAC Inc. | 5 A | 15 | Flash | Board Lock Mounting Brackets Shielded | -55 °C | 125 °C | D-Sub | Solder | Board Edge Right Angle Through Hole | Signal | Copper Alloy | 4-40 | Polyamide (PA6T) Nylon 6T | 0.283 in | 7.2 mm | Gold | Receptacle Female Sockets | 2 | Green | 2 | UL94 V-0 | |||
EDAC Inc. | 5 A | 15 | Mounting Brackets Shielded | -55 °C | 125 °C | D-Sub | Solder | Board Edge Right Angle Through Hole | Signal | Copper Alloy | Housing/Shell (4-40) | Polyamide (PA6T) Nylon 6T | 0.283 in | 7.2 mm | Gold | Receptacle Female Sockets | 2 | White | 2 | UL94 V-0 | 0.38 µm | 15 µin | ||
EDAC Inc. | 5 A | 15 | Mounting Brackets Shielded | -55 °C | 125 °C | D-Sub | Solder | Board Edge Right Angle Through Hole | Signal | Copper Alloy | Housing/Shell (4-40) | Polyamide (PA6T) Nylon 6T | 0.283 in | 7.2 mm | Gold | Receptacle Female Sockets | 2 | Black | 2 | UL94 V-0 | 0.76 Ám | 30 Áin | ||
EDAC Inc. | 5 A | 15 | Flash | Shielded | -55 °C | 125 °C | D-Sub | Solder | Board Edge Right Angle Through Hole | Signal | Copper Alloy | Housing/Shell (4-40) | Polyamide (PA6T) Nylon 6T | 0.283 in | 7.2 mm | Gold | Receptacle Female Sockets | 2 | White | 2 | UL94 V-0 | |||
EDAC Inc. | 5 A | 15 | Flash | Board Lock Mounting Brackets Shielded | -55 °C | 125 °C | D-Sub | Solder | Board Edge Right Angle Through Hole | Signal | Copper Alloy | Housing/Shell (4-40) | Polyamide (PA6T) Nylon 6T | 0.283 in | 7.2 mm | Gold | Receptacle Female Sockets | 2 | Green | 2 | UL94 V-0 | |||
EDAC Inc. | 5 A | 15 | Flash | Board Lock Mounting Brackets Shielded | -55 °C | 125 °C | D-Sub | Solder | Board Edge Right Angle Through Hole | Signal | Copper Alloy | Housing/Shell (4-40) | Polyamide (PA6T) Nylon 6T | 0.283 in | 7.2 mm | Gold | Receptacle Female Sockets | 2 | Black | 2 | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 4.49 | |
Description
General part information
622-M15 Series
15 Position D-Sub Receptacle, Female Sockets Connector
