622-M15-360-GT2

Active

EDAC Inc.

622M SERIES RIGHT ANGLE D-SUB PL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

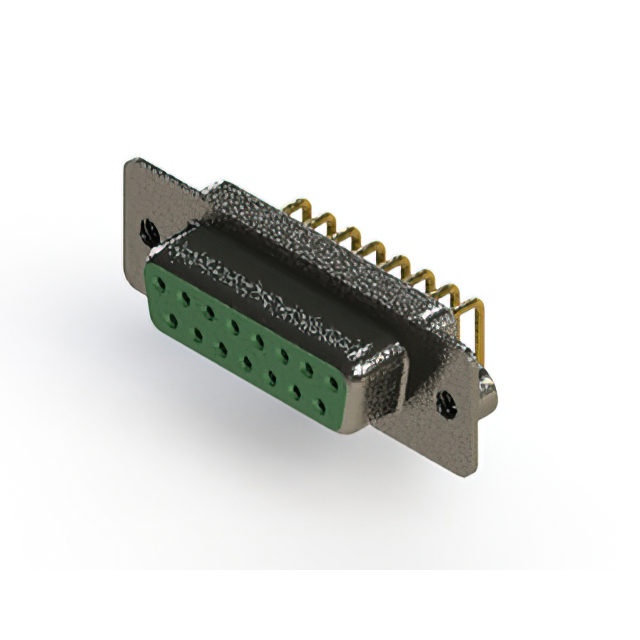

622-M15-360-GT2

Active

EDAC Inc.

622M SERIES RIGHT ANGLE D-SUB PL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	622-M15-360-GT2

Backset Spacing	0.283 in
Backset Spacing	7.2 mm
Color	Green
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Termination	Solder

622-M15 Series

...

Part	Current Rating (Amps)	Number of Positions	Contact Finish Thickness	Features	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Termination	Mounting Type	Contact Type	Contact Material	Flange Feature	Dielectric Material	Backset Spacing	Backset Spacing	Contact Finish	Connector Type	Number of Rows	Color	Shell Size, Connector Layout	Material Flammability Rating	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 622-M15-260-WT5	5 A	15	Flash	Board Lock Mounting Brackets Shielded	-55 °C	125 °C	D-Sub	Solder	Board Edge Right Angle Through Hole	Signal	Copper Alloy	4-40	Polyamide (PA6T) Nylon 6T	0.283 in	7.2 mm	Gold	Receptacle Female Sockets	2	White	2	UL94 V-0
EDAC Inc. 622-M15-660-GN4	5 A	15		Mounting Brackets Shielded	-55 °C	125 °C	D-Sub	Solder	Board Edge Right Angle Through Hole	Signal	Copper Alloy	Housing/Shell (4-40)	Polyamide (PA6T) Nylon 6T	0.283 in	7.2 mm	Gold	Receptacle Female Sockets	2	Green	2	UL94 V-0	Nickel Plated Steel	0.76 Ám	30 Áin
EDAC Inc. 622-M15-360-GT2	5 A	15		Shielded	-55 °C	125 °C	D-Sub	Solder	Board Edge Right Angle Through Hole	Signal	Copper Alloy	Housing/Shell (4-40)	Polyamide (PA6T) Nylon 6T	0.283 in	7.2 mm	Gold	Receptacle Female Sockets	2	Green	2	UL94 V-0		0.38 µm	15 µin
EDAC Inc. 622-M15-660-GN3	5 A	15		Board Lock Mounting Brackets Shielded	-55 °C	125 °C	D-Sub	Solder	Board Edge Right Angle Through Hole	Signal	Copper Alloy	Housing/Shell (4-40)	Polyamide (PA6T) Nylon 6T	0.283 in	7.2 mm	Gold	Receptacle Female Sockets	2	Green	2	UL94 V-0	Nickel Plated Steel	0.76 Ám	30 Áin
EDAC Inc. 622-M15-260-GT5	5 A	15	Flash	Board Lock Mounting Brackets Shielded	-55 °C	125 °C	D-Sub	Solder	Board Edge Right Angle Through Hole	Signal	Copper Alloy	4-40	Polyamide (PA6T) Nylon 6T	0.283 in	7.2 mm	Gold	Receptacle Female Sockets	2	Green	2	UL94 V-0
EDAC Inc. 622-M15-360-WT4	5 A	15		Mounting Brackets Shielded	-55 °C	125 °C	D-Sub	Solder	Board Edge Right Angle Through Hole	Signal	Copper Alloy	Housing/Shell (4-40)	Polyamide (PA6T) Nylon 6T	0.283 in	7.2 mm	Gold	Receptacle Female Sockets	2	White	2	UL94 V-0		0.38 µm	15 µin
EDAC Inc. 622-M15-660-BT4	5 A	15		Mounting Brackets Shielded	-55 °C	125 °C	D-Sub	Solder	Board Edge Right Angle Through Hole	Signal	Copper Alloy	Housing/Shell (4-40)	Polyamide (PA6T) Nylon 6T	0.283 in	7.2 mm	Gold	Receptacle Female Sockets	2	Black	2	UL94 V-0		0.76 Ám	30 Áin
EDAC Inc. 622-M15-260-WT2	5 A	15	Flash	Shielded	-55 °C	125 °C	D-Sub	Solder	Board Edge Right Angle Through Hole	Signal	Copper Alloy	Housing/Shell (4-40)	Polyamide (PA6T) Nylon 6T	0.283 in	7.2 mm	Gold	Receptacle Female Sockets	2	White	2	UL94 V-0
EDAC Inc. 622-M15-260-GT3	5 A	15	Flash	Board Lock Mounting Brackets Shielded	-55 °C	125 °C	D-Sub	Solder	Board Edge Right Angle Through Hole	Signal	Copper Alloy	Housing/Shell (4-40)	Polyamide (PA6T) Nylon 6T	0.283 in	7.2 mm	Gold	Receptacle Female Sockets	2	Green	2	UL94 V-0
EDAC Inc. 622-M15-260-BT3	5 A	15	Flash	Board Lock Mounting Brackets Shielded	-55 °C	125 °C	D-Sub	Solder	Board Edge Right Angle Through Hole	Signal	Copper Alloy	Housing/Shell (4-40)	Polyamide (PA6T) Nylon 6T	0.283 in	7.2 mm	Gold	Receptacle Female Sockets	2	Black	2	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 7.38

Description

General part information

622-M15 Series

15 Position D-Sub Receptacle, Female Sockets Connector
