Q-1U01N0003048i
ActiveAmphenol Custom Cable

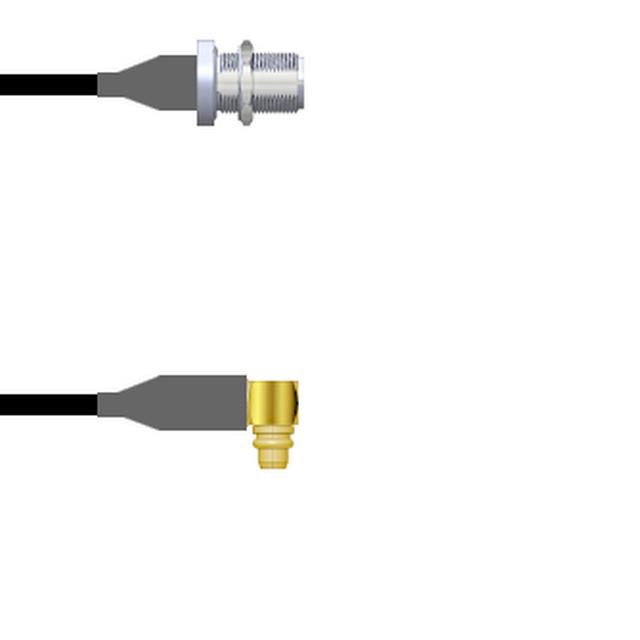

CBL ASSY MMCX-NTYPE PLUG-JACK 4'
Deep-Dive with AI
Search across all available documentation for this part.
Q-1U01N0003048i
ActiveAmphenol Custom Cable
CBL ASSY MMCX-NTYPE PLUG-JACK 4'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-1U01N0003048i |
|---|---|
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length | 1200 mm |
| Length | 4 ft |
| Length | 48 in |
| Overall Impedance | 50 Ohms |
| Style | MMCX to N-Type |
Q-1U01N0 Series
| Part | Style | Length | Length | Length | Frequency - Max [Max] | 2nd Connector Mounting Type | 2nd Connector | Features | Cable Type | Color | 2nd Connector Mounting Feature | 2nd Contact Gender | 1st Contact Gender | 1st Connector Mounting Type | Overall Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | MMCX to N-Type | 6.6 ft | 78.7 in | 2 m | 6000 MHz | Panel Mount | N-Type Jack | Shielded | RG-316 | Copper | Bulkhead - Front Side Nut | Female | Male | Free Hanging (In-Line) | 50 Ohms |
Amphenol Custom Cable | MMCX to N-Type | 9 ft | 108 in | 2.7 m | 6000 MHz | Panel Mount | N-Type Jack | Shielded | RG-174 | Black | Bulkhead - Front Side Nut | Female | Male | Free Hanging (In-Line) | 50 Ohms |
Amphenol Custom Cable | MMCX to N-Type | 4 ft | 48 in | 1200 mm | 6000 MHz | Panel Mount | N-Type Jack | Shielded | RG-316 | Copper | Bulkhead - Front Side Nut | Female | Male | Free Hanging (In-Line) | 50 Ohms |
Amphenol Custom Cable | MMCX to N-Type | 7 ft | 84 in | 2.1 m | 6000 MHz | Panel Mount | N-Type Jack | Shielded | RG-174 | Black | Bulkhead - Front Side Nut | Female | Male | Free Hanging (In-Line) | 50 Ohms |
Amphenol Custom Cable | MMCX to N-Type | 4 ft | 48 in | 1200 mm | 6000 MHz | Panel Mount | N-Type Jack | Shielded | RG-174 | Black | Bulkhead - Front Side Nut | Female | Male | Free Hanging (In-Line) | 50 Ohms |
Amphenol Custom Cable | MMCX to N-Type | 36 in | 91.44 cm | 6000 MHz | Panel Mount | N-Type Jack | Shielded | RG-174 | Black | Bulkhead - Front Side Nut | Female | Male | Free Hanging (In-Line) | 50 Ohms | |
Amphenol Custom Cable | MMCX to N-Type | 19.69 " | 50 cm | 6000 MHz | Panel Mount | N-Type Jack | Shielded | RG-316 | Copper | Bulkhead - Front Side Nut | Female | Male | Free Hanging (In-Line) | 50 Ohms | |
Amphenol Custom Cable | MMCX to N-Type | 8.2 ' | 98.4 in | 2.5 m | 6000 MHz | Panel Mount | N-Type Jack | Shielded | RG-174 | Black | Bulkhead - Front Side Nut | Female | Male | Free Hanging (In-Line) | 50 Ohms |
Amphenol Custom Cable | MMCX to N-Type | 6 ft | 72 in | 1.8 m | 6000 MHz | Panel Mount | N-Type Jack | Shielded | RG-316 | Copper | Bulkhead - Front Side Nut | Female | Male | Free Hanging (In-Line) | 50 Ohms |
Amphenol Custom Cable | MMCX to N-Type | 5 ft | 5 ' | 1.5 m | 6000 MHz | Panel Mount | N-Type Jack | Shielded | RG-316 | Copper | Bulkhead - Front Side Nut | Female | Male | Free Hanging (In-Line) | 50 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 118.65 | |
| 25 | $ 116.38 | |||
| 50 | $ 114.11 | |||
| 100 | $ 111.84 | |||
| 250 | $ 109.57 | |||
Description
General part information
Q-1U01N0 Series
Cable Assembly Coaxial MMCX to N-Type RG-174 48.0" (1.2m) 4.0'
Documents
Technical documentation and resources
No documents available
