Q-1U01N0005002M

Active

Amphenol Custom Cable

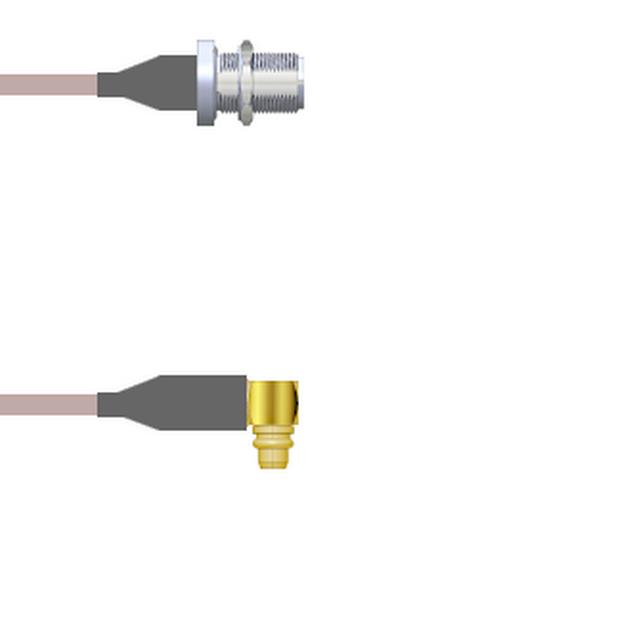

CBL ASSY MMCX-NTYPE PLG-JCK 6.6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1U01N0005002M

Active

Amphenol Custom Cable

CBL ASSY MMCX-NTYPE PLG-JCK 6.6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U01N0005002M

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms
Style	MMCX to N-Type

Q-1U01N0 Series

Part	Style	Length	Length	Length	Frequency - Max [Max]	2nd Connector Mounting Type	2nd Connector	Features	Cable Type	Color	2nd Connector Mounting Feature	2nd Contact Gender	1st Contact Gender	1st Connector Mounting Type	Overall Impedance
Amphenol Custom Cable Q-1U01N0005002M	MMCX to N-Type	6.6 ft	78.7 in	2 m	6000 MHz	Panel Mount	N-Type Jack	Shielded	RG-316	Copper	Bulkhead - Front Side Nut	Female	Male	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-1U01N0003108i	MMCX to N-Type	9 ft	108 in	2.7 m	6000 MHz	Panel Mount	N-Type Jack	Shielded	RG-174	Black	Bulkhead - Front Side Nut	Female	Male	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-1U01N0005048i	MMCX to N-Type	4 ft	48 in	1200 mm	6000 MHz	Panel Mount	N-Type Jack	Shielded	RG-316	Copper	Bulkhead - Front Side Nut	Female	Male	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-1U01N0003084i	MMCX to N-Type	7 ft	84 in	2.1 m	6000 MHz	Panel Mount	N-Type Jack	Shielded	RG-174	Black	Bulkhead - Front Side Nut	Female	Male	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-1U01N0003048i	MMCX to N-Type	4 ft	48 in	1200 mm	6000 MHz	Panel Mount	N-Type Jack	Shielded	RG-174	Black	Bulkhead - Front Side Nut	Female	Male	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-1U01N0003036i	MMCX to N-Type		36 in	91.44 cm	6000 MHz	Panel Mount	N-Type Jack	Shielded	RG-174	Black	Bulkhead - Front Side Nut	Female	Male	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-1U01N00050.5M	MMCX to N-Type		19.69 "	50 cm	6000 MHz	Panel Mount	N-Type Jack	Shielded	RG-316	Copper	Bulkhead - Front Side Nut	Female	Male	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-1U01N00032.5M	MMCX to N-Type	8.2 '	98.4 in	2.5 m	6000 MHz	Panel Mount	N-Type Jack	Shielded	RG-174	Black	Bulkhead - Front Side Nut	Female	Male	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-1U01N0005072i	MMCX to N-Type	6 ft	72 in	1.8 m	6000 MHz	Panel Mount	N-Type Jack	Shielded	RG-316	Copper	Bulkhead - Front Side Nut	Female	Male	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-1U01N0005060i	MMCX to N-Type	5 ft	5 '	1.5 m	6000 MHz	Panel Mount	N-Type Jack	Shielded	RG-316	Copper	Bulkhead - Front Side Nut	Female	Male	Free Hanging (In-Line)	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 125.11
		25	$ 116.66
		50	$ 108.22
		100	$ 100.98
		250	$ 94.94

Description

General part information

Q-1U01N0 Series

Cable Assembly Coaxial MMCX to N-Type RG-316 78.7" (2.0m) 6.6'

Documents

Technical documentation and resources

No documents available
