172-050-112R021

Obsolete

NorComp Inc.

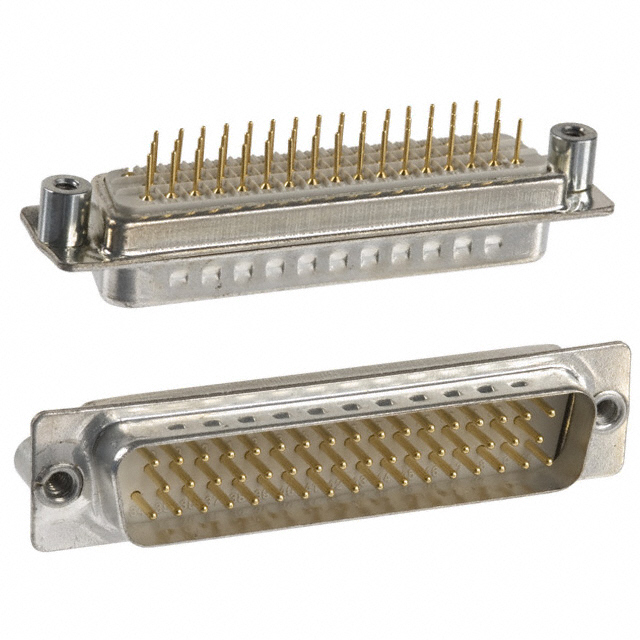

CONN D-SUB PLUG 50P PNL MNT SLDR

172-050-112R021

Obsolete

NorComp Inc.

CONN D-SUB PLUG 50P PNL MNT SLDR

Description Specifications Series Pricing CAD Documents

Description

General part information

172-050 Series

50 Position D-Sub Plug, Male Pins Connector

Technical Specifications

Parameters and characteristics for this part

Specification	172-050-112R021

Color	Beige
Connector Layout	D, DD
Connector Style	D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Form	Machined
Contact Material	Brass
Contact Type	Signal
Current Rating	5 A
Dielectric Material	Polyester, Polybutylene Terephthalate (PBT)
Features	Grounding Indents
Finish	Tin Plated
Flange Feature	Board Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole
Number of Positions	50
Number of Rows	3
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-50 °C
Shell Material	Steel
Shell Size	5
Termination	Solder

172-050 Series

Part	Contact Finish	Termination	Flange Feature	Contact Type	Current Rating	Number of Positions	Connector Style	Number of Rows	Shell Material	Finish	Shell Size	Connector Layout	Mounting Type	Contact Finish Thickness (string set options)	Contact Finish Thickness	Connector Type	Material Flammability Rating	Color	Contact Form	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Dielectric Material	Features
NorComp Inc. 172-050-283L021	Gold	Solder	Board Side (4-40)	Signal	5 A	50	D-Sub	3	Steel	Nickel Plated	5	D DD	Panel Mount Through Hole	Flash	Flash	Female Sockets Receptacle	UL94 V-0	Black	Machined	125 °C	-50 °C	Brass	Polybutylene Terephthalate (PBT)
NorComp Inc. 172-050-212R011	Gold	Solder	Board Side (4-40)	Signal	5 A	50	D-Sub	3	Steel	Tin Plated	5	D DD	Panel Mount Through Hole	Flash	Flash	Female Sockets Receptacle	UL94 V-0	Beige	Machined	100 °C	-50 °C	Brass	Polybutylene Terephthalate (PBT) Polyester
NorComp Inc. 172-050-142R031	Gold	Wire Wrap	Mating Side (4-40)	Signal	5 A	50	D-Sub	3	Steel	Tin Plated	5	D DD	Panel Mount Through Hole	Flash	Flash	Male Pins Plug	UL94 V-0	Beige	Machined	100 °C	-50 °C	Brass	Polybutylene Terephthalate (PBT) Polyester	Grounding Indents
NorComp Inc. 172-050-181L031	Gold	Solder	Mating Side (4-40)	Signal	5 A	50	D-Sub	3	Steel	Yellow Chromate Plated	5	D DD	Panel Mount Through Hole	Flash	Flash	Male Pins Plug	UL94 V-0		Machined	125 °C	-50 °C		Polybutylene Terephthalate (PBT)
NorComp Inc. 172-050-212R031	Gold	Solder	Mating Side (4-40)	Signal	5 A	50	D-Sub	3	Steel	Tin Plated	5	D DD	Panel Mount Through Hole	Flash	Flash	Female Sockets Receptacle	UL94 V-0	Beige	Machined	100 °C	-50 °C	Brass	Polybutylene Terephthalate (PBT) Polyester
NorComp Inc. 172-050-112R021	Gold	Solder	Board Side (4-40)	Signal	5 A	50	D-Sub	3	Steel	Tin Plated	5	D DD	Panel Mount Through Hole	Flash	Flash	Male Pins Plug	UL94 V-0	Beige	Machined	100 °C	-50 °C	Brass	Polybutylene Terephthalate (PBT) Polyester	Grounding Indents
NorComp Inc. 172-050-281-031	Gold	Solder	Mating Side (4-40)	Signal	5 A	50	D-Sub	3	Steel	Yellow Chromate Plated	5	D DD	Panel Mount Through Hole	Flash	Flash	Female Sockets Receptacle	UL94 V-0			100 °C	-50 °C		Polybutylene Terephthalate (PBT)
NorComp Inc. 172-050-181-031	Gold	Solder	Mating Side (4-40)	Signal	5 A	50	D-Sub	3	Steel	Yellow Chromate Plated	5	D DD	Panel Mount Through Hole	Flash	Flash	Male Pins Plug	UL94 V-0			100 °C	-50 °C		Polybutylene Terephthalate (PBT)
NorComp Inc. 172-050-142R001	Gold	Wire Wrap	Housing Shell (Unthreaded)	Signal	5 A	50	D-Sub	3	Steel	Tin Plated	5	D DD	Panel Mount Through Hole	Flash	Flash	Male Pins Plug	UL94 V-0	Beige	Machined	100 °C	-50 °C	Brass	Polybutylene Terephthalate (PBT) Polyester	Grounding Indents
NorComp Inc. 172-050-182-021	Gold	Solder	Board Side (4-40)	Signal	5 A	50	D-Sub	3	Steel	Tin Plated	5	D DD	Panel Mount Through Hole	Flash	Flash	Male Pins Plug	UL94 V-0			100 °C	-50 °C		Polybutylene Terephthalate (PBT)	Grounding Indents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

172-050-112R021 | Datasheet
