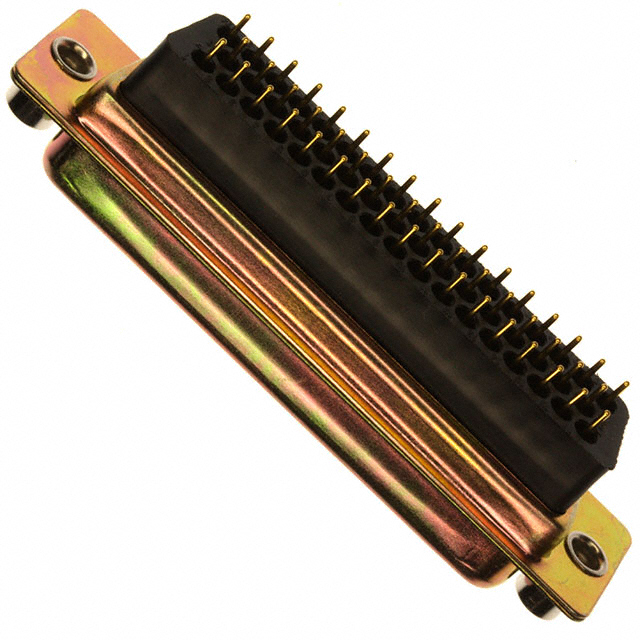

172-050-181L031

Obsolete

MH Connectors

CONN D-SUB PLUG 50P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

172-050-181L031

Obsolete

MH Connectors

CONN D-SUB PLUG 50P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	172-050-181L031

Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-50 °C
Shell Material, Finish	Steel, Yellow Chromate Plated
Shell Size, Connector Layout	5
Termination	Solder

172-050 Series

Part	Mounting Type	Dielectric Material	Shell Size, Connector Layout	Flange Feature	Contact Finish Thickness	Connector Style	Contact Material	Number of Rows	Termination	Material Flammability Rating	Current Rating (Amps)	Number of Positions	Color	Contact Type	Connector Type	Contact Finish	Features	Shell Material, Finish	Operating Temperature [Min]	Operating Temperature [Max]
MH Connectors 172-050-212R011	Panel Mount Through Hole	Polybutylene Terephthalate (PBT) Polyester	5	4-40 Board Side	Flash	D-Sub	Brass	3	Solder	UL94 V-0	5 A	50	Beige	Signal	Receptacle Female Sockets	Gold
MH Connectors 172-050-142R031	Panel Mount Through Hole	Polybutylene Terephthalate (PBT) Polyester	5	4-40	Flash	D-Sub	Brass	3	Wire Wrap	UL94 V-0	5 A	50	Beige	Signal	Male Pins Plug	Gold	Grounding Indents
MH Connectors 172-050-181L031	Panel Mount Through Hole	Polybutylene Terephthalate (PBT)	5	4-40	Flash	D-Sub		3	Solder	UL94 V-0	5 A	50		Signal	Male Pins Plug	Gold		Steel Yellow Chromate Plated	-50 °C	125 °C
MH Connectors 172-050-112R021	Panel Mount Through Hole	Polybutylene Terephthalate (PBT) Polyester	5	4-40 Board Side	Flash	D-Sub	Brass	3	Solder	UL94 V-0	5 A	50	Beige	Signal	Male Pins Plug	Gold	Grounding Indents
MH Connectors 172-050-281-031	Panel Mount Through Hole	Polybutylene Terephthalate (PBT)	5	4-40	Flash	D-Sub		3	Solder	UL94 V-0	5 A	50		Signal	Receptacle Female Sockets	Gold		Steel Yellow Chromate Plated
MH Connectors 172-050-181-031	Panel Mount Through Hole	Polybutylene Terephthalate (PBT)	5	4-40	Flash	D-Sub		3	Solder	UL94 V-0	5 A	50		Signal	Male Pins Plug	Gold		Steel Yellow Chromate Plated
MH Connectors 172-050-142R001	Panel Mount Through Hole	Polybutylene Terephthalate (PBT) Polyester	5	Housing/Shell (Unthreaded)	Flash	D-Sub	Brass	3	Wire Wrap	UL94 V-0	5 A	50	Beige	Signal	Male Pins Plug	Gold	Grounding Indents
MH Connectors 172-050-182-021	Panel Mount Through Hole	Polybutylene Terephthalate (PBT)	5	4-40 Board Side	Flash	D-Sub		3	Solder	UL94 V-0	5 A	50		Signal	Male Pins Plug	Gold	Grounding Indents
MH Connectors 172-050-242R911	Panel Mount Through Hole	Polybutylene Terephthalate (PBT) Polyester	5	Board Side (4-40) Mating Side Female Screwlock (4-40)	Flash	D-Sub	Brass	3	Wire Wrap	UL94 V-0	5 A	50	Beige	Signal	Receptacle Female Sockets	Gold
MH Connectors 172-050-181L011	Panel Mount Through Hole	Polybutylene Terephthalate (PBT)	5	4-40 Board Side	Flash	D-Sub		3	Solder	UL94 V-0	5 A	50		Signal	Male Pins Plug	Gold		Steel Yellow Chromate Plated	-50 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

172-050 Series

50 Position D-Sub Plug, Male Pins Connector
