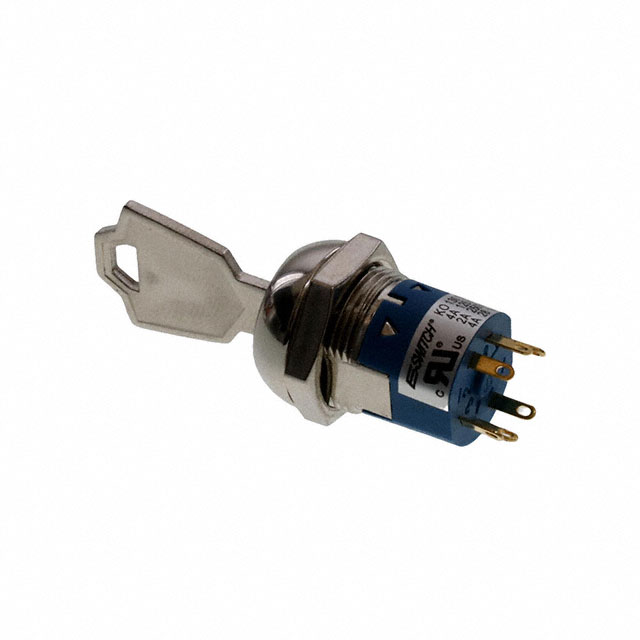

KO130OA126

Active

E-Switch

SWITCH KEYLOCK 2POS DPDT 4A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH KEYLOCK 2POS DPDT 4A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	KO130OA126

Actuator Type	Flat Key
Angle of Throw	90 °
Circuit	DPDT
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Timing	Not Specified
Current Rating (Amps)	4 A
Depth Behind Flange	27.8 mm
Key Removable Positions	3 only
Number of Positions	2
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Switch Function	Contact Timing	Circuit	Voltage Rating - AC	Depth Behind Flange	Actuator Type	Contact Finish	Key Removable Positions	Panel Cutout Dimensions [diameter]	Angle of Throw	Contact Material	Number of Positions	Termination Style	Current Rating (Amps)	Depth Behind Flange [z]
E-Switch KO130Q601	On-On	Not Specified	DPDT	125 V	28.2 mm	Flat Key	Silver	5 only	19 mm	90 °	Copper Alloy	2	Solder Lug	4 A
E-Switch KO130QA123	On-On	Not Specified	DPDT	125 V	28.2 mm	Flat Key	Silver	5 only	19 mm	90 °	Copper Alloy	2	Solder Lug	4 A
E-Switch KO130Q602	On-On	Not Specified	DPDT	125 V	28.2 mm	Flat Key	Silver	5 only	19 mm	90 °	Copper Alloy	2	Solder Lug	4 A
E-Switch KO130AA126	On-On-On	Not Specified	SP3T	125 V	28.2 mm	Flat Key	Silver	3 only	19 mm	45 °	Copper Alloy		Solder Lug	4 A
E-Switch KO103D701	On-On	Not Specified	SPDT	125 V	26.5 mm	Tubular Key	Silver	All	12 mm	90 °	Copper Alloy	2	Solder Lug	1 A
E-Switch KO130N602	On-On	Not Specified	SPDT	125 V	28 mm	Flat Key	Silver	3 only	19 mm	90 °	Copper Alloy	2	Solder Lug	4 A
E-Switch KO130OA126	On-On	Not Specified	DPDT	125 V	27.8 mm	Flat Key	Silver	3 only	19 mm	90 °	Copper Alloy	2	Solder Lug	4 A
E-Switch KO130NA126WIRELEAD
E-Switch KO130Q604	On-On	Not Specified	DPDT	125 V	28.2 mm	Flat Key	Silver	5 only	19 mm	90 °	Copper Alloy	2	Solder Lug	4 A
E-Switch KO105A1001	Off-On	Not Specified	SPST	125 V		Tubular Key	Silver	All	12 mm	90 °	Copper Alloy	2	Solder Lug	1 A	19 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 2 Position DPDT 4A (AC) 125 VAC DC Panel Mount
