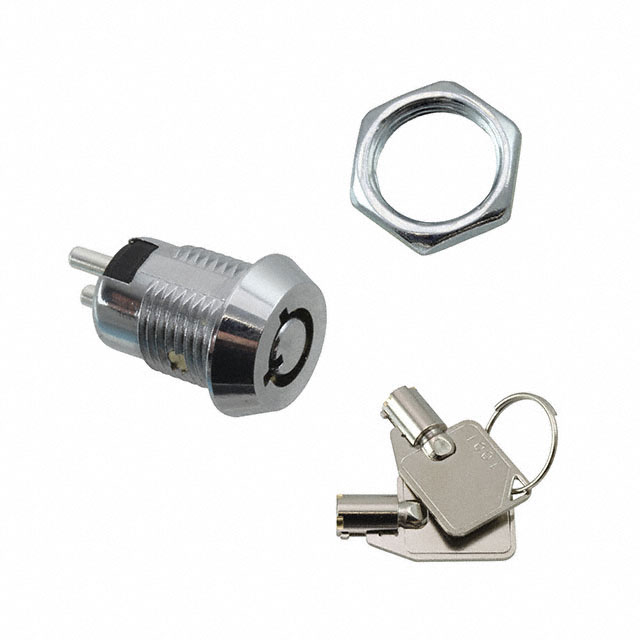

KO105A1001
ActiveE-Switch
SWITCH: KEY SWITCH; STABL.POS: 2; SWITCH.METHOD: OFF-ON; ON PANEL
Deep-Dive with AI
Search across all available documentation for this part.
KO105A1001
ActiveE-Switch
SWITCH: KEY SWITCH; STABL.POS: 2; SWITCH.METHOD: OFF-ON; ON PANEL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KO105A1001 |
|---|---|
| Actuator Type | Tubular Key |
| Angle of Throw | 90 ° |
| Circuit | SPST |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Contact Timing | Not Specified |
| Current Rating (Amps) | 1 A |
| Depth Behind Flange [z] | 19 mm |
| Key Removable Positions | All |
| Number of Positions | 2 |
| Panel Cutout Dimensions [diameter] | 12 mm |
| Switch Function | Off-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.74 | |
| 10 | $ 6.07 | |||
| 25 | $ 5.76 | |||
| 50 | $ 5.52 | |||
| 100 | $ 5.34 | |||
| 300 | $ 5.06 | |||
| 500 | $ 4.63 | |||
| 1000 | $ 4.42 | |||
Description
General part information
KO129 Series
Keylock Switch 2 Position SPST 1A (AC) 125 VAC DC Panel Mount
Documents
Technical documentation and resources
No documents available
