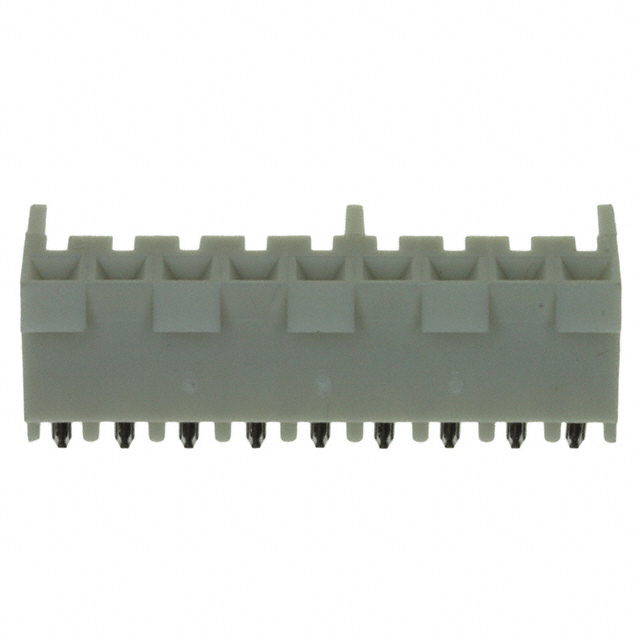

0009484098

Active

Molex

CONN RCPT 9POS 0.156 TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0009484098

Active

Molex

CONN RCPT 9POS 0.156 TIN PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0009484098

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	60 Áin
Contact Finish Thickness - Mating	1.52 Ám
Contact Finish Thickness - Post	60 µin
Contact Finish Thickness - Post	1.52 µm
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	5 A
Fastening Type	Locking Ramp
Features	Board Hooks
Insulation Color	Natural
Insulation Height [z]	0.449 in
Insulation Height [z]	11.4 mm
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	600 V

000948 Series

Part	Number of Rows	Style	Insulation Color	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Current Rating (Amps)	Fastening Type	Pitch - Mating	Pitch - Mating	Mounting Type	Applications	Contact Type	Termination	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Number of Positions	Connector Type	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish - Post	Contact Finish - Mating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post
Molex 0009482063	1	Board to Board Cable	Natural	Polyester	2.54 çm	100 çin	2.54 µm	100 µin	UL94 V-0	4.5 A	Locking Ramp	0.156 in	3.96 mm	Through Hole	Automotive General Purpose Medical Telecommunications	Female Socket	Solder	Square	0.12 in	3.05 mm	Brass	6	Receptacle	All	0.449 in	11.4 mm	Board Hooks	-40 °C	80 C	600 V	Tin
Molex 0009483154	1	Board to Board Cable	Natural	Polyester	0.38 µm	15 µin	2.54 µm	100 µin	UL94 V-0	4 A	Locking Ramp	0.156 in	3.96 mm	Through Hole	Automotive General Purpose Medical Telecommunications	Female Socket	Solder	Square	0.125 in	3.18 mm	Brass	15	Receptacle Bottom Entry	All	0.449 in	11.4 mm	Board Hooks	-40 °C	80 C	600 V	Tin	Gold
Molex 0009482143	1	Board to Board Cable	Natural	Polyester	2.54 çm	100 çin	2.54 µm	100 µin	UL94 V-0	4.5 A	Locking Ramp	0.156 in	3.96 mm	Through Hole	Automotive General Purpose Medical Telecommunications	Female Socket	Solder	Square	0.12 in	3.05 mm	Brass	14	Receptacle	All	0.449 in	11.4 mm	Board Hooks	-40 °C	80 C	600 V	Tin
Molex 0009482091	1	Board to Board Cable	Natural	Polyester	2.54 çm	100 çin	2.54 µm	100 µin	UL94 V-0	4.5 A	Locking Ramp	0.156 in	3.96 mm	Board Edge Right Angle Through Hole	Automotive General Purpose Medical Telecommunications	Female Socket	Solder	Square			Brass	9	Receptacle	All			Board Hooks	-40 °C	80 C	600 V	Tin		0.308 in	7.82 mm	0.145 in	3.68 mm
Molex 0009485045	1	Board to Board Cable	Natural	Polyester	0.38 µm	15 µin	2.54 µm	100 µin	UL94 V-0	5 A	Locking Ramp	0.156 in	3.96 mm	Through Hole	Automotive General Purpose Medical Telecommunications	Female Socket	Solder	Square	0.12 in	3.05 mm	Phosphor Bronze	4	Receptacle	All	0.449 in	11.4 mm	Board Hooks	-40 °C	105 ░C	600 V	Tin	Gold
Molex 0009482122	1	Board to Board Cable	Natural	Polyester	2.54 çm	100 çin	2.54 µm	100 µin	UL94 V-0	4 A	Locking Ramp	0.156 in	3.96 mm	Through Hole	Automotive General Purpose Medical Telecommunications	Female Socket	Solder	Square	0.125 in	3.18 mm	Brass	12	Receptacle Bottom Entry	All	0.449 in	11.4 mm	Board Hooks	-40 °C	80 C	600 V	Tin
Molex 0009481095	1	Board to Board Cable	Natural	Polyester	0.38 µm	15 µin	2.54 µm	100 µin	UL94 V-0	5 A	Locking Ramp	0.156 in	3.96 mm	Through Hole	Automotive General Purpose Medical Telecommunications	Female Socket	Solder	Square	0.12 in	3.05 mm	Phosphor Bronze	9	Receptacle	All	0.449 in	11.4 mm	Board Hooks	-40 °C	105 ░C	600 V	Tin	Gold
Molex 0009482141	1	Board to Board Cable	Natural	Polyester	2.54 çm	100 çin	2.54 µm	100 µin	UL94 V-0	4.5 A	Locking Ramp	0.156 in	3.96 mm	Board Edge Right Angle Through Hole	Automotive General Purpose Medical Telecommunications	Female Socket	Solder	Square			Brass	14	Receptacle	All			Board Hooks	-40 °C	80 C	600 V	Tin		0.308 in	7.82 mm	0.145 in	3.68 mm
Molex 0009484078	1	Board to Board Cable	Natural	Polyester	1.52 Ám	60 Áin	1.52 µm	60 µin	UL94 V-0	5 A	Locking Ramp	0.156 in	3.96 mm	Through Hole	Automotive General Purpose Medical Telecommunications	Female Socket	Solder	Square	0.12 in	3.05 mm	Phosphor Bronze	7	Receptacle	All	0.449 in	11.4 mm	Board Hooks	-40 °C	105 ░C	600 V	Tin
Molex 0009484098	1	Board to Board Cable	Natural	Polyester	1.52 Ám	60 Áin	1.52 µm	60 µin	UL94 V-0	5 A	Locking Ramp	0.156 in	3.96 mm	Through Hole	Automotive General Purpose Medical Telecommunications	Female Socket	Solder	Square	0.12 in	3.05 mm	Phosphor Bronze	9	Receptacle	All	0.449 in	11.4 mm	Board Hooks	-40 °C	105 ░C	600 V	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.42
		10	$ 1.21
		80	$ 1.00
		945	$ 0.92

Description

General part information

000948 Series

9 Position Receptacle Connector 0.156" (3.96mm) Through Hole Tin
