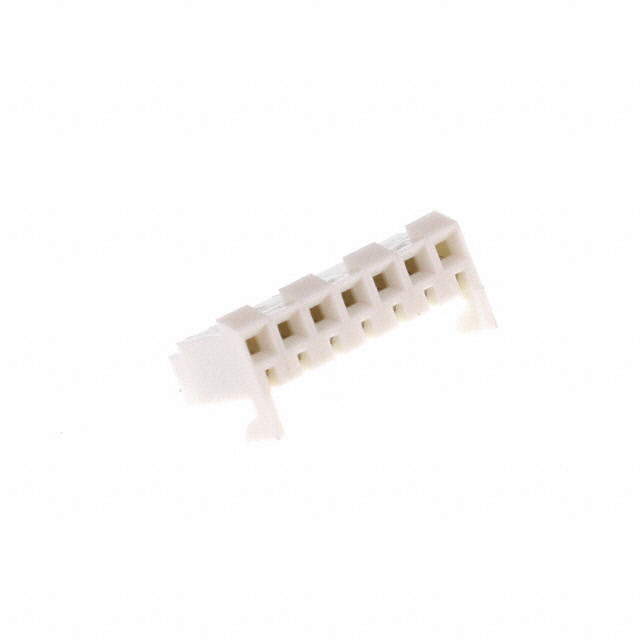

General part information

000948 Series

7 Position Receptacle Connector 0.156" (3.96mm) Through Hole Tin

Technical Specifications

Parameters and characteristics for this part

Specification	0009484078

Applications	Medical, Automotive, Telecommunications, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	60 µin
Contact Finish Thickness - Post	60 Ąin
Contact Length - Post	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating	5 A
Fastening Type	Locking Ramp
Features	Board Hooks
Insulation Color	Natural
Insulation Height	0.449 in
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.156 in
Style	Board, Board or Cable
Termination	Solder
Voltage Rating	600 V

000948 Series

...

Part	Number of Rows	Material Flammability Rating	Mounting Type	Number of Positions	Voltage Rating	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Contact Finish Thickness - Mating	Connector Type	Contact Finish - Mating	Insulation Color	Insulation Height	Contact Finish - Post	Pitch - Mating	Contact Length - Post	Current Rating	Contact Type	Termination	Style	Features	Number of Positions Loaded	Insulation Material	Contact Material	Contact Finish Thickness - Post	Applications	Contact Shape
Molex 0009482063	1	UL94 V-0	Through Hole	6	600 V	80 °C	-40 °C	Locking Ramp	100 µin	Receptacle	Tin	Natural	0.449 in	Tin	0.156 in	0.12 in	4.5 A	Female Socket	Solder	Board Board or Cable	Board Hooks	All	Polyester	Brass	100 Ąin	Automotive General Purpose Medical Telecommunications	Square
Molex 0009483154	1	UL94 V-0	Through Hole	15	600 V	80 °C	-40 °C	Locking Ramp	15 µin	Bottom Entry Receptacle	Gold	Natural	0.449 in	Tin	0.156 in	0.125 in	4 A	Female Socket	Solder	Board Board or Cable	Board Hooks	All	Polyester	Brass	100 Ąin	Automotive General Purpose Medical Telecommunications	Square
Molex 0009482143	1	UL94 V-0	Through Hole	14	600 V	80 °C	-40 °C	Locking Ramp	100 µin	Receptacle	Tin	Natural	0.449 in	Tin	0.156 in	0.12 in	4.5 A	Female Socket	Solder	Board Board or Cable	Board Hooks	All	Polyester	Brass	100 Ąin	Automotive General Purpose Medical Telecommunications	Square
Molex 0009482091	1	UL94 V-0	Board Edge Right Angle Through Hole	9	600 V	80 °C	-40 °C	Locking Ramp	100 µin	Receptacle	Tin	Natural	0.308 in	Tin	0.156 in	0.145 in	4.5 A	Female Socket	Solder	Board Board or Cable	Board Hooks	All	Polyester	Brass	100 Ąin	Automotive General Purpose Medical Telecommunications	Square
Molex 0009485045	1	UL94 V-0	Through Hole	4	600 V	105 °C	-40 °C	Locking Ramp	15 µin	Receptacle	Gold	Natural	0.449 in	Tin	0.156 in	0.12 in	5 A	Female Socket	Solder	Board Board or Cable	Board Hooks	All	Polyester	Phosphor Bronze	100 Ąin	Automotive General Purpose Medical Telecommunications	Square
Molex 0009482122	1	UL94 V-0	Through Hole	12	600 V	80 °C	-40 °C	Locking Ramp	100 µin	Bottom Entry Receptacle	Tin	Natural	0.449 in	Tin	0.156 in	0.125 in	4 A	Female Socket	Solder	Board Board or Cable	Board Hooks	All	Polyester	Brass	100 Ąin	Automotive General Purpose Medical Telecommunications	Square
Molex 0009481095	1	UL94 V-0	Through Hole	9	600 V	105 °C	-40 °C	Locking Ramp	15 µin	Receptacle	Gold	Natural	0.449 in	Tin	0.156 in	0.12 in	5 A	Female Socket	Solder	Board Board or Cable	Board Hooks	All	Polyester	Phosphor Bronze	100 Ąin	Automotive General Purpose Medical Telecommunications	Square
Molex 0009482141	1	UL94 V-0	Board Edge Right Angle Through Hole	14	600 V	80 °C	-40 °C	Locking Ramp	100 µin	Receptacle	Tin	Natural	0.308 in	Tin	0.156 in	0.145 in	4.5 A	Female Socket	Solder	Board Board or Cable	Board Hooks	All	Polyester	Brass	100 Ąin	Automotive General Purpose Medical Telecommunications	Square
Molex 0009484078	1	UL94 V-0	Through Hole	7	600 V	105 °C	-40 °C	Locking Ramp	60 µin	Receptacle	Tin	Natural	0.449 in	Tin	0.156 in	0.12 in	5 A	Female Socket	Solder	Board Board or Cable	Board Hooks	All	Polyester	Phosphor Bronze	60 Ąin	Automotive General Purpose Medical Telecommunications	Square
Molex 0009484098	1	UL94 V-0	Through Hole	9	600 V	105 °C	-40 °C	Locking Ramp	60 µin	Receptacle	Tin	Natural	0.449 in	Tin	0.156 in	0.12 in	5 A	Female Socket	Solder	Board Board or Cable	Board Hooks	All	Polyester	Phosphor Bronze	60 Ąin	Automotive General Purpose Medical Telecommunications	Square
