D38999/26WD18SNLC

Active

Amphenol Aerospace Operations

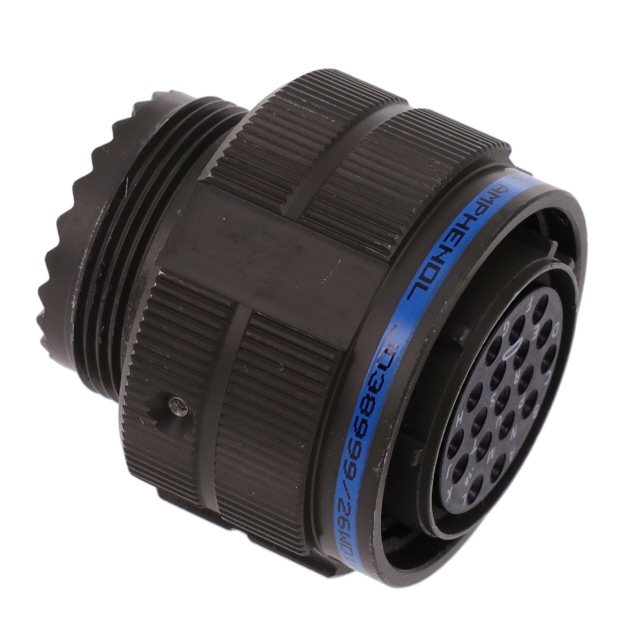

CONN PLG HSG FMALE 18POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26WD18SNLC

Active

Amphenol Aerospace Operations

CONN PLG HSG FMALE 18POS INLINE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26WD18SNLC

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Grade	Military
Housing Color	Olive Drab
Ingress Protection	Environment Resistant
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	18
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	18
Shell Size - Insert [Min]	15
Shell Size, MIL	D
Shielding	Shielded
Type	For Female Sockets

D38999/26WD Series

Part	Qualification	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Applications	Shell Size, MIL	Contact Finish - Mating	Shell Finish	Mounting Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Primary Material	Contact Material	Grade	Orientation	Ingress Protection	Shielding	Connector Type	Color	Termination	Note	Contact Size	Contact Type	Housing Color	Type	Contact Shape	Shell Size - Insert	Insert Material	Contact Size	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Backshell Material, Plating
Amphenol Aerospace Operations D38999/26WD18JE	MIL-DTL-38999 Series III	Coupling Nut Self Locking	2.54 çm	100 çin	Aluminum	Aviation Marine Military	D	Gold	Olive Drab Cadmium	Free Hanging (In-Line)	18	15	-65 ░C	347 °F	18	Metal	Copper Alloy	Military	E	Environment Resistant	Shielded	Female Sockets Plug	Olive Drab	Crimp
Amphenol Aerospace Operations D38999/26WD97PD-LC	MIL-DTL-38999 Series III	Coupling Nut Self Locking			Aluminum		D		Cadmium	Free Hanging (In-Line)	97	15	-65 ░C	347 °F	12			Military	D	Environment Resistant	Shielded	Plug Housing			Contacts Not Included	4 8 16 20	Crimp	Olive Drab	For Male Pins	Circular
Amphenol Aerospace Operations D38999/26WD97JD-LC	MIL-DTL-38999 Series III	Coupling Nut Self Locking			Aluminum		D		Cadmium	Free Hanging (In-Line)	97	15	-65 ░C	347 °F	12			Military	D	Environment Resistant	Shielded	Plug Housing			Contacts Not Included	4 8 16 20	Crimp	Olive Drab	For Female Sockets	Circular
Amphenol Aerospace Operations D38999/26WD15SN	MIL-DTL-38999 Series III	Coupling Nut	1.27 µm	50 µin	Aluminum	Aerospace Aviation Marine Military	D	Gold	Olive Drab Cadmium	Free Hanging (In-Line)	15	15	-65 ░C	347 °F	15	Metal	Copper Alloy	Military	N	Environment Resistant	Shielded	Female Sockets Plug	Olive Drab	Crimp
Amphenol Aerospace Operations D38999/26WD5SN	MIL-DTL-38999 Series III	Coupling Nut	1.27 µm	50 µin	Aluminum	Aerospace Aviation Marine Military	D	Gold	Olive Drab Cadmium	Free Hanging (In-Line)			-65 ░C	347 °F		Metal	Copper Alloy	Military	N	Environment Resistant	Shielded	Female Sockets Plug	Olive Drab	Crimp							15-5
Amphenol Aerospace Operations D38999/26WD18SNLC	MIL-DTL-38999 Series III				Aluminum		D		Cadmium	Free Hanging (In-Line)	18	15	-65 ░C	347 °F	18	Metal		Military	N	Environment Resistant	Shielded	Plug Housing			Contacts Not Included		Crimp	Olive Drab	For Female Sockets	Circular		Thermoplastic	20
Amphenol Aerospace Operations D38999/26WD19JD-LC	MIL-DTL-38999 Series III	Coupling Nut Self Locking			Aluminum		D		Cadmium	Free Hanging (In-Line)			-65 ░C	347 °F	19			Military	D	Environment Resistant	Shielded	Plug Housing			Contacts Not Included		Crimp	Olive Drab	For Female Sockets	Circular			20	19	15
Amphenol Aerospace Operations D38999/26WD15PN-CGBSB1	MIL-DTL-38999 Series III	Cord Grip Coupling Nut Self Locking Shrink Boot	1.27 µm	50 µin	Aluminum	Aviation Marine Military	D	Gold	Olive Drab Cadmium	Free Hanging (In-Line)	15	15	-65 ░C	347 °F	15	Metal	Copper Alloy	Military	N	Environment Resistant	Shielded	Male Pins Plug	Olive Drab	Crimp												Plastic
Amphenol Aerospace Operations D38999/26WD15BD	MIL-DTL-38999 Series III	Coupling Nut Self Locking			Aluminum		D		Cadmium	Free Hanging (In-Line)	15	15	-65 ░C	347 °F	15			Military	D	Environment Resistant	Shielded	Plug Housing			Contacts Not Included		Crimp	Olive Drab	For Female Sockets	Circular			16 20
Amphenol Aerospace Operations D38999/26WD15AN	MIL-DTL-38999 Series III	Coupling Nut Self Locking			Aluminum		D		Cadmium	Free Hanging (In-Line)	15	15	-65 ░C	347 °F	15			Military	N	Environment Resistant	Shielded	Plug Housing			Contacts Not Included		Crimp	Olive Drab	For Male Pins	Circular			16 20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 160.88
		10	$ 140.42

Description

General part information

D38999/26WD Series

18 Position Circular Connector Plug Housing Free Hanging (In-Line)

Documents

Technical documentation and resources
