D38999/26WD15SN

Active

Amphenol Aerospace Operations

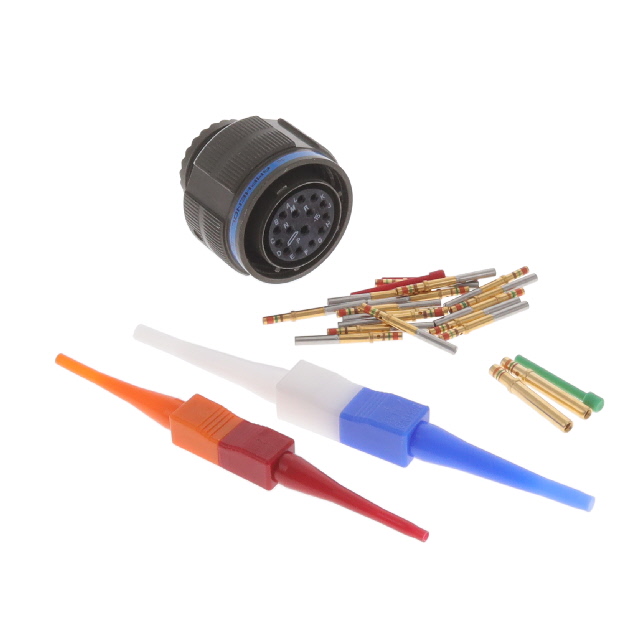

CONN PLUG FMALE 15POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26WD15SN

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 15POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26WD15SN

Applications	Aviation, Aerospace, Marine, Military
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	15
Shell Size - Insert [Min]	15
Shell Size, MIL	D
Shielding	Shielded
Termination	Crimp

D38999/26WD Series

Part	Qualification	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Applications	Shell Size, MIL	Contact Finish - Mating	Shell Finish	Mounting Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Primary Material	Contact Material	Grade	Orientation	Ingress Protection	Shielding	Connector Type	Color	Termination	Note	Contact Size	Contact Type	Housing Color	Type	Contact Shape	Shell Size - Insert	Insert Material	Contact Size	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Backshell Material, Plating
Amphenol Aerospace Operations D38999/26WD18JE	MIL-DTL-38999 Series III	Coupling Nut Self Locking	2.54 çm	100 çin	Aluminum	Aviation Marine Military	D	Gold	Olive Drab Cadmium	Free Hanging (In-Line)	18	15	-65 ░C	347 °F	18	Metal	Copper Alloy	Military	E	Environment Resistant	Shielded	Female Sockets Plug	Olive Drab	Crimp
Amphenol Aerospace Operations D38999/26WD97PD-LC	MIL-DTL-38999 Series III	Coupling Nut Self Locking			Aluminum		D		Cadmium	Free Hanging (In-Line)	97	15	-65 ░C	347 °F	12			Military	D	Environment Resistant	Shielded	Plug Housing			Contacts Not Included	4 8 16 20	Crimp	Olive Drab	For Male Pins	Circular
Amphenol Aerospace Operations D38999/26WD97JD-LC	MIL-DTL-38999 Series III	Coupling Nut Self Locking			Aluminum		D		Cadmium	Free Hanging (In-Line)	97	15	-65 ░C	347 °F	12			Military	D	Environment Resistant	Shielded	Plug Housing			Contacts Not Included	4 8 16 20	Crimp	Olive Drab	For Female Sockets	Circular
Amphenol Aerospace Operations D38999/26WD15SN	MIL-DTL-38999 Series III	Coupling Nut	1.27 µm	50 µin	Aluminum	Aerospace Aviation Marine Military	D	Gold	Olive Drab Cadmium	Free Hanging (In-Line)	15	15	-65 ░C	347 °F	15	Metal	Copper Alloy	Military	N	Environment Resistant	Shielded	Female Sockets Plug	Olive Drab	Crimp
Amphenol Aerospace Operations D38999/26WD5SN	MIL-DTL-38999 Series III	Coupling Nut	1.27 µm	50 µin	Aluminum	Aerospace Aviation Marine Military	D	Gold	Olive Drab Cadmium	Free Hanging (In-Line)			-65 ░C	347 °F		Metal	Copper Alloy	Military	N	Environment Resistant	Shielded	Female Sockets Plug	Olive Drab	Crimp							15-5
Amphenol Aerospace Operations D38999/26WD18SNLC	MIL-DTL-38999 Series III				Aluminum		D		Cadmium	Free Hanging (In-Line)	18	15	-65 ░C	347 °F	18	Metal		Military	N	Environment Resistant	Shielded	Plug Housing			Contacts Not Included		Crimp	Olive Drab	For Female Sockets	Circular		Thermoplastic	20
Amphenol Aerospace Operations D38999/26WD19JD-LC	MIL-DTL-38999 Series III	Coupling Nut Self Locking			Aluminum		D		Cadmium	Free Hanging (In-Line)			-65 ░C	347 °F	19			Military	D	Environment Resistant	Shielded	Plug Housing			Contacts Not Included		Crimp	Olive Drab	For Female Sockets	Circular			20	19	15
Amphenol Aerospace Operations D38999/26WD15PN-CGBSB1	MIL-DTL-38999 Series III	Cord Grip Coupling Nut Self Locking Shrink Boot	1.27 µm	50 µin	Aluminum	Aviation Marine Military	D	Gold	Olive Drab Cadmium	Free Hanging (In-Line)	15	15	-65 ░C	347 °F	15	Metal	Copper Alloy	Military	N	Environment Resistant	Shielded	Male Pins Plug	Olive Drab	Crimp												Plastic
Amphenol Aerospace Operations D38999/26WD15BD	MIL-DTL-38999 Series III	Coupling Nut Self Locking			Aluminum		D		Cadmium	Free Hanging (In-Line)	15	15	-65 ░C	347 °F	15			Military	D	Environment Resistant	Shielded	Plug Housing			Contacts Not Included		Crimp	Olive Drab	For Female Sockets	Circular			16 20
Amphenol Aerospace Operations D38999/26WD15AN	MIL-DTL-38999 Series III	Coupling Nut Self Locking			Aluminum		D		Cadmium	Free Hanging (In-Line)	15	15	-65 ░C	347 °F	15			Military	N	Environment Resistant	Shielded	Plug Housing			Contacts Not Included		Crimp	Olive Drab	For Male Pins	Circular			16 20
