WM012RI,GY

Active

Serpac

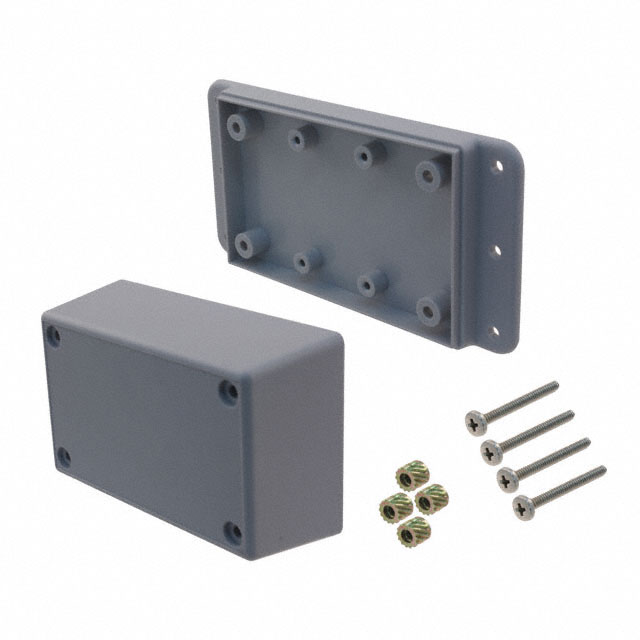

BOX ABS GRAY 3.62"L X 2.27"W

Deep-Dive with AI

Search across all available documentation for this part.

WM012RI,GY

Active

Serpac

BOX ABS GRAY 3.62"L X 2.27"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.90

Description

General part information

WM012 Series

Box Plastic, ABS Gray Cover Included 3.620" L x 2.270" W (91.95mm x 57.66mm) X 1.600" (40.64mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WM012RI,GY	WM012 Series

Area (L x W)	53 cm²	52.3 - 53 cm²
Area (L x W)	8.22 in²	8.1 - 8.22 in²
Area (L x W)	-	52.3 cm˛
Area (L x W)	-	8.1 in˛
Color	Gray	Almond, Black, Gray
Container Type	Box	Box
Design	Cover Included	Cover Included
Features	Mounting Flange, Wall Mount, PCB Supports, Front Access	PCB Supports, Wall Mount, Mounting Flange, Front Access
Height [z]	40.64 mm	40.64 mm
Height [z]	1.6 in	1.6 in
Material	Plastic, ABS	Plastic, ABS
Material Flammability Rating	UL94 HB	UL94 HB
Ratings	IP40, NEMA 1	IP40, NEMA 1
Size / Dimension [x]	3.62 in	3.6 - 3.62 in
Size / Dimension [x]	91.95 mm	91.44 - 91.95 mm
Size / Dimension [y]	57.66 mm	57.15 - 57.66 mm
Size / Dimension [y]	2.27 in	2.25 - 2.27 in
Thickness	2.54 mm	2.54 mm
Thickness	0.1 in	0.1 in
Weight	0.15 lbs	0.15 lbs
Weight	68.04 g	68.04 g

WM012 Series

BOX ABS ALMOND 3.6"L X 2.25"W

Part	Weight	Weight	Features	Container Type	Area (L x W)	Area (L x W)	Design	Ratings	Material Flammability Rating	Material	Thickness	Thickness	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Color	Height [z]	Height [z]	Area (L x W) [custom]	Area (L x W) [custom]
Serpac WM012I,AL	0.15 lbs	68.04 g	Mounting Flange, PCB Supports, Wall Mount	Box	52.3 cm²	8.1 in²	Cover Included	IP40, NEMA 1	UL94 HB	Plastic, ABS	2.54 mm	0.1 in	91.44 mm	57.15 mm	3.6 in	2.25 in	Almond	40.64 mm	1.6 in
Serpac WM012RI,BK	0.15 lbs	68.04 g	Front Access, Mounting Flange, PCB Supports, Wall Mount	Box	53 cm²	8.22 in²	Cover Included	IP40, NEMA 1	UL94 HB	Plastic, ABS	2.54 mm	0.1 in	91.95 mm	57.66 mm	3.62 in	2.27 in	Black	40.64 mm	1.6 in
Serpac WM012,GY	0.15 lbs	68.04 g	Mounting Flange, PCB Supports, Wall Mount	Box	52.3 cm²	8.1 in²	Cover Included	IP40, NEMA 1	UL94 HB	Plastic, ABS	2.54 mm	0.1 in	91.44 mm	57.15 mm	3.6 in	2.25 in	Gray	40.64 mm	1.6 in
Serpac WM012R,AL	0.15 lbs	68.04 g	Front Access, Mounting Flange, PCB Supports, Wall Mount	Box	53 cm²	8.22 in²	Cover Included	IP40, NEMA 1	UL94 HB	Plastic, ABS	2.54 mm	0.1 in	91.95 mm	57.66 mm	3.62 in	2.27 in	Almond	40.64 mm	1.6 in
Serpac WM012R,GY	0.15 lbs	68.04 g	Front Access, Mounting Flange, PCB Supports, Wall Mount	Box	53 cm²	8.22 in²	Cover Included	IP40, NEMA 1	UL94 HB	Plastic, ABS	2.54 mm	0.1 in	91.95 mm	57.66 mm	3.62 in	2.27 in	Gray	40.64 mm	1.6 in
Serpac WM012I,BK	0.15 lbs	68.04 g	Mounting Flange, PCB Supports, Wall Mount	Box			Cover Included	IP40, NEMA 1	UL94 HB	Plastic, ABS	2.54 mm	0.1 in	91.44 mm	57.15 mm	3.6 in	2.25 in	Black	40.64 mm	1.6 in	52.3 cm˛	8.1 in˛
Serpac WM012RI,AL	0.15 lbs	68.04 g	Front Access, Mounting Flange, PCB Supports, Wall Mount	Box	53 cm²	8.22 in²	Cover Included	IP40, NEMA 1	UL94 HB	Plastic, ABS	2.54 mm	0.1 in	91.95 mm	57.66 mm	3.62 in	2.27 in	Almond	40.64 mm	1.6 in
Serpac WM012I,GY	0.15 lbs	68.04 g	Mounting Flange, PCB Supports, Wall Mount	Box	52.3 cm²	8.1 in²	Cover Included	IP40, NEMA 1	UL94 HB	Plastic, ABS	2.54 mm	0.1 in	91.44 mm	57.15 mm	3.6 in	2.25 in	Gray	40.64 mm	1.6 in
Serpac WM012R,BK	0.15 lbs	68.04 g	Front Access, Mounting Flange, PCB Supports, Wall Mount	Box	53 cm²	8.22 in²	Cover Included	IP40, NEMA 1	UL94 HB	Plastic, ABS	2.54 mm	0.1 in	91.95 mm	57.66 mm	3.62 in	2.27 in	Black	40.64 mm	1.6 in
Serpac WM012RI,GY	0.15 lbs	68.04 g	Front Access, Mounting Flange, PCB Supports, Wall Mount	Box	53 cm²	8.22 in²	Cover Included	IP40, NEMA 1	UL94 HB	Plastic, ABS	2.54 mm	0.1 in	91.95 mm	57.66 mm	3.62 in	2.27 in	Gray	40.64 mm	1.6 in
