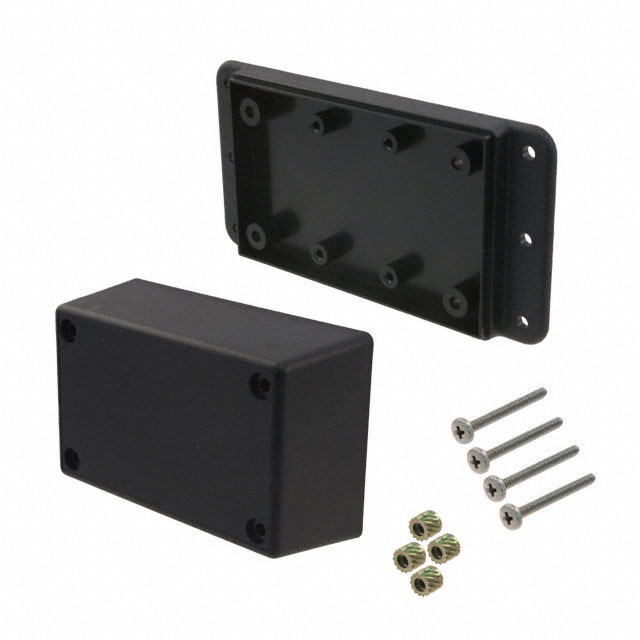

WM012RI,BK
ActiveSerpac
BOX ABS BLACK 3.62"L X 2.27"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WM012RI,BK |
|---|---|
| Area (L x W) | 53 cm² |
| Area (L x W) | 8.22 in² |
| Color | Black |
| Container Type | Box |
| Design | Cover Included |
| Features | Mounting Flange, Wall Mount, PCB Supports, Front Access |
| Height [z] | 40.64 mm |
| Height [z] | 1.6 in |
| Material | Plastic, ABS |
| Material Flammability Rating | UL94 HB |
| Ratings | IP40, NEMA 1 |
| Size / Dimension [x] | 3.62 in |
| Size / Dimension [x] | 91.95 mm |
| Size / Dimension [y] | 57.66 mm |
| Size / Dimension [y] | 2.27 in |
| Thickness | 2.54 mm |
| Thickness | 0.1 in |
| Weight | 0.15 lbs |
| Weight | 68.04 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.90 | |
Description
General part information
WM012RI,BK
Box Plastic, ABS Black Cover Included 3.620" L x 2.270" W (91.95mm x 57.66mm) X 1.600" (40.64mm)
Documents
Technical documentation and resources
No documents available
