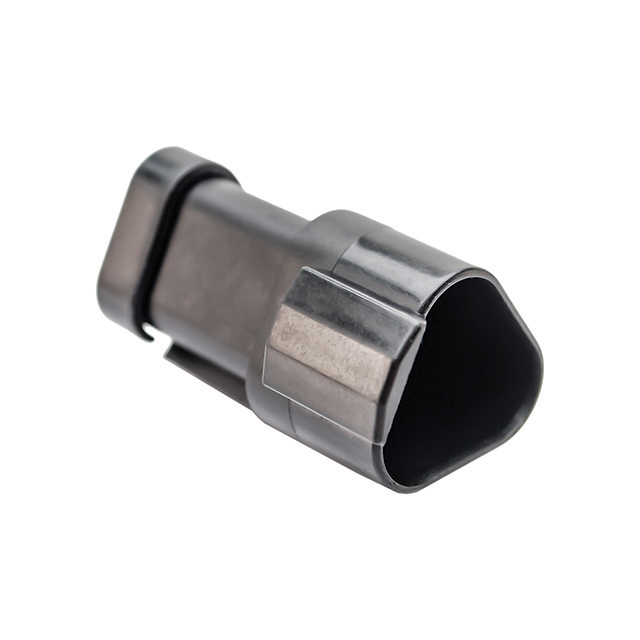

AT04-3P-MM01BLK

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 3POS 14-20AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAT Series Datasheet

AT04-3P-MM01BLK

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 3POS 14-20AWG

Deep-Dive with AI

DocumentsAT Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT04-3P-MM01BLK

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT04-3P Series

Part	Fastening Type	Color	Number of Rows	Insulation Material	Connector Type	Note	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Type	Mounting Type
Amphenol Sine Systems Corp AT04-3P-RED	Latch Holder	Red	2	Thermoplastic	Receptacle	Contacts Not Included	Crimp	-55 °C	125 °C	Sealed	Male Pin	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-3P-SR02WHT	Latch Holder	White	2	Thermoplastic	Receptacle		Crimp	-55 °C	125 °C	Cap (Cover) IP68 IP69K Reduced Wire Seals Strain Relief	Male Pin	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-3P-RD01	Latch Holder	Gray	2	Thermoplastic	Receptacle	Contacts Not Included	Crimp	-55 °C	125 °C	Sealed	Male Pin	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-3P-SR02BLK	Latch Holder	Black	2	Thermoplastic	Receptacle	Contacts Not Included	Crimp	-55 °C	125 °C	Strain Relief	Male Pin	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-3P-CL06	Latch Holder	Black	2	Thermoplastic	Receptacle	Contacts Not Included	Crimp	-55 °C	125 °C	Mounting Flange Sealed	Male Pin
Amphenol Sine Systems Corp AT04-3P-RY01	Latch Holder	Gray	2	Thermoplastic	Receptacle	Contacts Not Included	Crimp	-55 °C	125 °C	IP67	Male Pin	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-3P-MM01BLK	Latch Holder	Black	2	Thermoplastic	Receptacle	Contacts Not Included	Crimp	-55 °C	125 °C		Male Pin	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-3P-SR01BLK	Latch Holder	Black	2	Thermoplastic	Receptacle	Contacts Not Included	Crimp	-55 °C	125 °C	Strain Relief	Male Pin	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-3P-CL03	Latch Holder	Gray	2	Thermoplastic	Receptacle	Contacts Not Included	Crimp	-55 °C	125 °C	Mounting Flange Sealed	Male Pin
Amphenol Sine Systems Corp AT04-3P-ORG	Latch Holder		2	Thermoplastic	Receptacle	Contacts Not Included	Crimp	-55 °C	125 °C	Sealed	Male Pin	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.36
		10	$ 1.19
		25	$ 1.14
		50	$ 1.11
		100	$ 1.06
		250	$ 0.96
		700	$ 0.88
		1400	$ 0.76
		2800	$ 0.71

Description

General part information

AT04-3P Series

3 Rectangular Connectors - Housings Receptacle Black

Documents

Technical documentation and resources

AT Series

Datasheet
