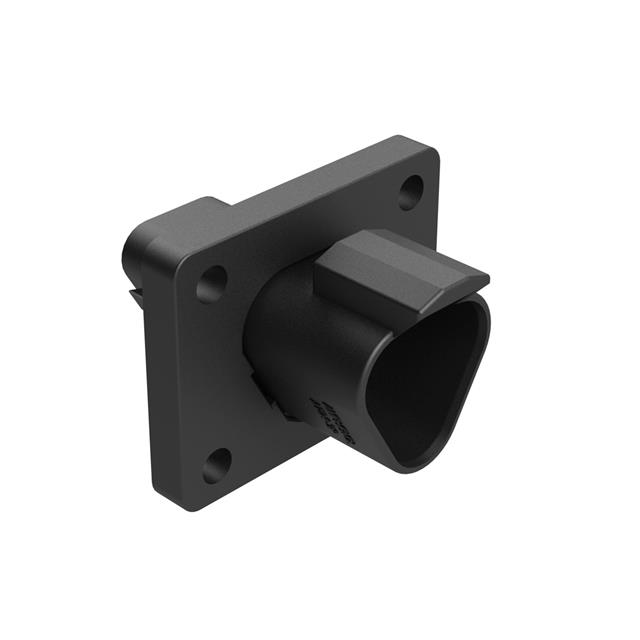

AT04-3P-CL06

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 3POS FLANGE MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA Series Family Datasheet

AT04-3P-CL06

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 3POS FLANGE MNT

Deep-Dive with AI

DocumentsA Series Family Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT04-3P-CL06

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Sealed, Mounting Flange
Insulation Material	Thermoplastic
Note	Contacts Not Included
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT04-3P Series

Part	Fastening Type	Color	Number of Rows	Insulation Material	Connector Type	Note	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Type	Mounting Type
Amphenol Sine Systems Corp AT04-3P-RED	Latch Holder	Red	2	Thermoplastic	Receptacle	Contacts Not Included	Crimp	-55 °C	125 °C	Sealed	Male Pin	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-3P-SR02WHT	Latch Holder	White	2	Thermoplastic	Receptacle		Crimp	-55 °C	125 °C	Cap (Cover) IP68 IP69K Reduced Wire Seals Strain Relief	Male Pin	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-3P-RD01	Latch Holder	Gray	2	Thermoplastic	Receptacle	Contacts Not Included	Crimp	-55 °C	125 °C	Sealed	Male Pin	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-3P-SR02BLK	Latch Holder	Black	2	Thermoplastic	Receptacle	Contacts Not Included	Crimp	-55 °C	125 °C	Strain Relief	Male Pin	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-3P-CL06	Latch Holder	Black	2	Thermoplastic	Receptacle	Contacts Not Included	Crimp	-55 °C	125 °C	Mounting Flange Sealed	Male Pin
Amphenol Sine Systems Corp AT04-3P-RY01	Latch Holder	Gray	2	Thermoplastic	Receptacle	Contacts Not Included	Crimp	-55 °C	125 °C	IP67	Male Pin	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-3P-MM01BLK	Latch Holder	Black	2	Thermoplastic	Receptacle	Contacts Not Included	Crimp	-55 °C	125 °C		Male Pin	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-3P-SR01BLK	Latch Holder	Black	2	Thermoplastic	Receptacle	Contacts Not Included	Crimp	-55 °C	125 °C	Strain Relief	Male Pin	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-3P-CL03	Latch Holder	Gray	2	Thermoplastic	Receptacle	Contacts Not Included	Crimp	-55 °C	125 °C	Mounting Flange Sealed	Male Pin
Amphenol Sine Systems Corp AT04-3P-ORG	Latch Holder		2	Thermoplastic	Receptacle	Contacts Not Included	Crimp	-55 °C	125 °C	Sealed	Male Pin	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.52
		10	$ 4.10
		25	$ 3.89
		50	$ 3.80
		150	$ 3.62
		300	$ 3.16
		600	$ 3.07
		1050	$ 2.62
		2550	$ 2.44

Description

General part information

AT04-3P Series

3 Rectangular Connectors - Housings Receptacle Black

Documents

Technical documentation and resources

A Series Family

Datasheet
