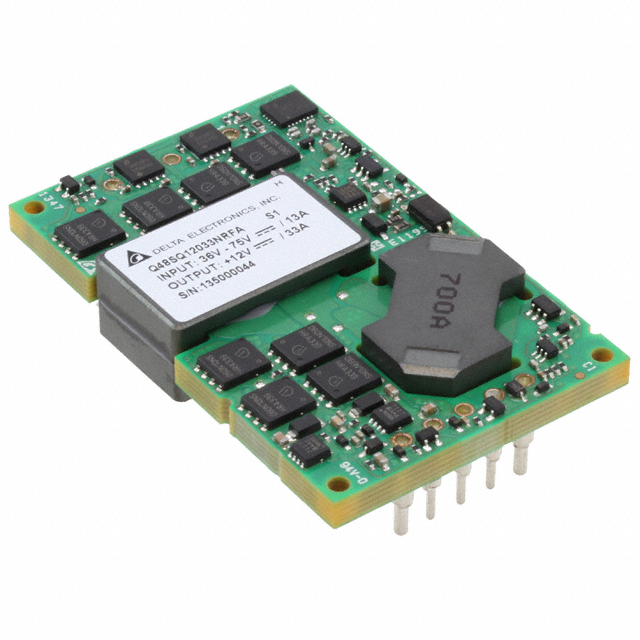

Q48SQ12033NRFH

Active

Delta Electronics

MODULE DC-DC 48VIN 1-OUT 12V 33A 400W 8-PIN QUARTER-BRICK

Search across all available documentation for this part.

Active

Delta Electronics

MODULE DC-DC 48VIN 1-OUT 12V 33A 400W 8-PIN QUARTER-BRICK

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 12V 300W

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Type	Number of Outputs	Power (Watts)	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Features	Efficiency	Control Features	Mounting Type	Voltage - Isolation	Applications	Voltage - Output 1	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
Delta Electronics Q48SQ12025NRFH	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	Isolated Module	1	300 W	75 V	25 A	36 V	OCP, OTP, OVP, Remote On/Off, UVLO	95.5 %	Active Low, Enable	Through Hole	1.5 kV	ITE (Commercial)	12 V	1/4 Brick, 8-DIP Module	85 °C	-40 °C
Delta Electronics Q48SQ12033NRFH	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	Isolated Module	1	400 W	75 V	33 A	36 V	OCP, OTP, OVP, Remote On/Off, UVLO	95.5 %	Active Low, Enable	Through Hole	1.5 kV	ITE (Commercial)	12 V	1/4 Brick, 8-DIP Module	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 33A 36V - 75V Input
