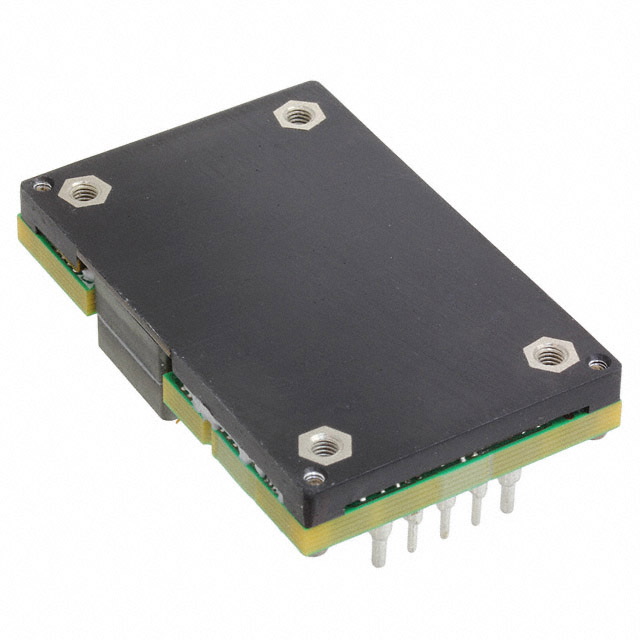

Q48SQ12025NRFH

Delta Electronics

DC DC CONVERTER 12V 300W

Search across all available documentation for this part.

Delta Electronics

DC DC CONVERTER 12V 300W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	30	$ 64.92

General part information

Isolated Module DC DC Converter 1 Output 12V 25A 36V - 75V Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 12V 300W

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Type	Number of Outputs	Power (Watts)	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Features	Efficiency	Control Features	Mounting Type	Voltage - Isolation	Applications	Voltage - Output 1	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
Delta Electronics Q48SQ12025NRFH	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	Isolated Module	1	300 W	75 V	25 A	36 V	OCP, OTP, OVP, Remote On/Off, UVLO	95.5 %	Active Low, Enable	Through Hole	1.5 kV	ITE (Commercial)	12 V	1/4 Brick, 8-DIP Module	85 °C	-40 °C
Delta Electronics Q48SQ12033NRFH	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	Isolated Module	1	400 W	75 V	33 A	36 V	OCP, OTP, OVP, Remote On/Off, UVLO	95.5 %	Active Low, Enable	Through Hole	1.5 kV	ITE (Commercial)	12 V	1/4 Brick, 8-DIP Module	85 °C	-40 °C
