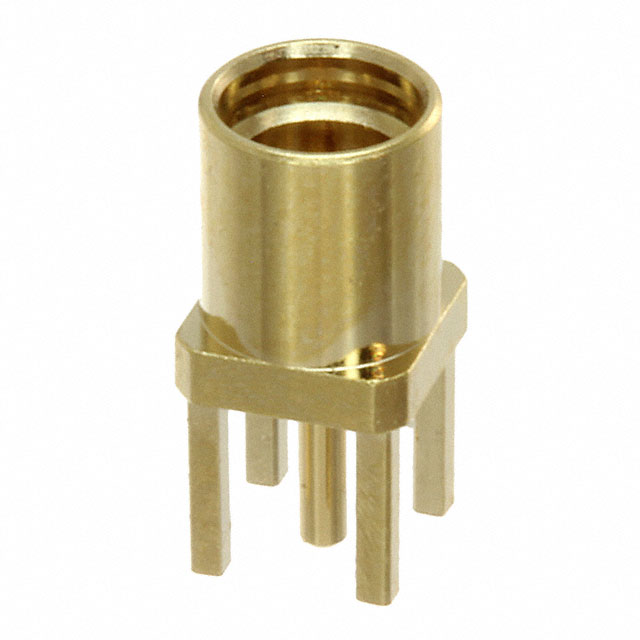

MMCX-J-P-H-ST-TH1

Active

Samtec Inc.

CONN MMCX JACK STR 50 OHM PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN MMCX JACK STR 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	MMCX-J-P-H-ST-TH1

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Center Contact Material	Body Material	Impedance	Connector Style	Body Finish	Shield Termination	Connector Type	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Termination	Fastening Type	Center Contact Plating	Voltage Rating	Frequency - Max [Max]	Housing Color	Dielectric Material	Features	Mating Cycles
Samtec Inc. MMCX-J-P-H-ST-SM1-K	Beryllium Copper	Brass	50 Ohms	MMCX	Gold	Solder	Female Socket Jack	1	125 °C	-65 ░C	Surface Mount	Solder	Snap-On	Gold	500 V	6000 MHz	Gold	Polytetrafluoroethylene (PTFE)
Samtec Inc. MMCX-J-P-H-ST-TH1	Beryllium Copper	Brass	50 Ohms	MMCX	Gold	Solder	Female Socket Jack	1	125 °C	-65 ░C	Through Hole	Solder	Snap-On	Gold	500 V	6000 MHz	Gold	Polytetrafluoroethylene (PTFE)
Samtec Inc. MMCX-J-P-H-ST-EM1	Beryllium Copper	Brass	50 Ohms	MMCX	Gold	Solder	Female Socket Jack	1	125 °C	-65 ░C	Board Edge Cutout Surface Mount	Solder	Snap-On	Gold	335 V	6000 MHz	Gold	Polytetrafluoroethylene (PTFE)
Samtec Inc. MMCX-J-P-HF-SW-EM1-TR	Beryllium Copper	Brass	50 Ohms	MMCX	Gold	Solder	Female Socket Jack	1	125 °C	-65 ░C	Board Edge Cutout Surface Mount	Solder	Snap-On	Gold	100 V	6000 MHz	Gold	Polytetrafluoroethylene (PTFE)	Internal Switch	500
Samtec Inc. MMCX-J-P-HF-SW-EM1	Beryllium Copper	Brass	50 Ohms	MMCX	Gold	Solder	Female Socket Jack	1	125 °C	-65 ░C	Board Edge Cutout Surface Mount	Solder	Snap-On	Gold	100 V	6000 MHz	Gold	Polytetrafluoroethylene (PTFE)	Internal Switch	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MMCX Connector Jack, Female Socket 50 Ohms Through Hole Solder
