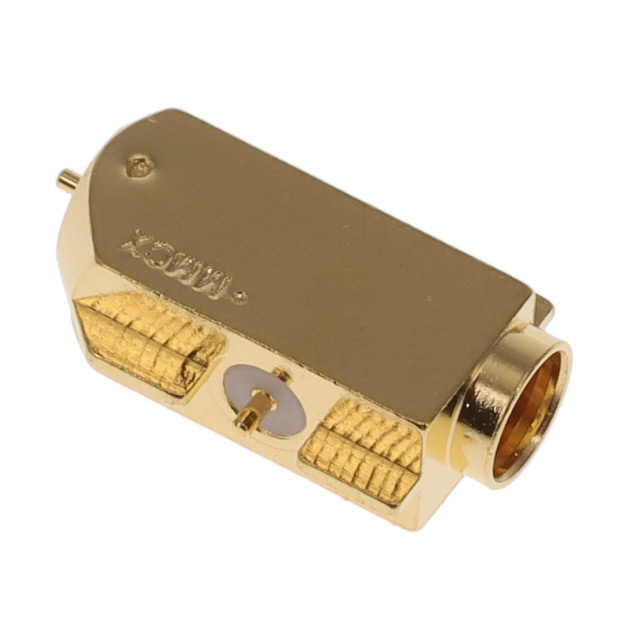

MMCX-J-P-HF-SW-EM1
ActiveSamtec Inc.
MICRO-MINI RF SMT
Deep-Dive with AI
Search across all available documentation for this part.
MMCX-J-P-HF-SW-EM1
ActiveSamtec Inc.
MICRO-MINI RF SMT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MMCX-J-P-HF-SW-EM1 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | MMCX |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Features | Internal Switch |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Cutout, Board Edge, Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 22.76 | |
| 10 | $ 17.54 | |||
| 25 | $ 15.88 | |||
| 40 | $ 15.10 | |||
| 80 | $ 14.05 | |||
| 230 | $ 12.64 | |||
| 440 | $ 11.87 | |||
Description
General part information
MMCX-J Series
MMCX Connector Jack, Female Socket 50 Ohms Board Edge, Cutout; Surface Mount Solder
