833-064-500-207

Active

EDAC Inc.

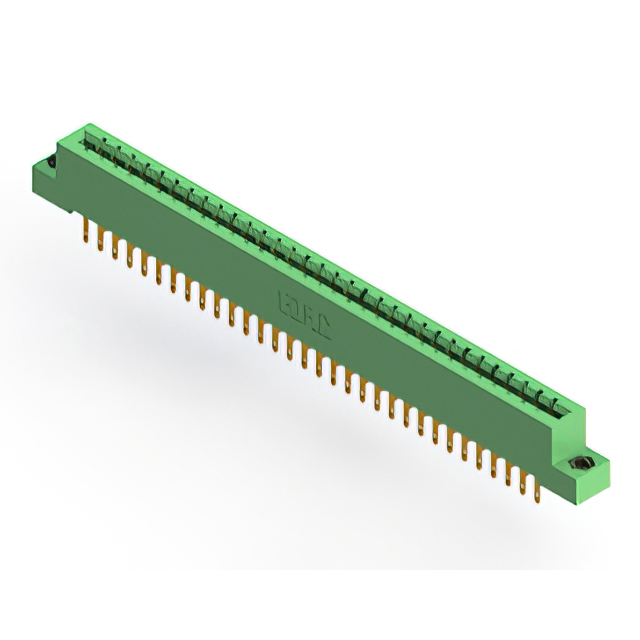

CARD EDGE CONNECTOR, 64 CONTACT(S), 2 ROW(S), FEMALE, 0.156 INCH PITCH, SOLDER TERMINAL, M3, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

833-064-500-207

Active

EDAC Inc.

CARD EDGE CONNECTOR, 64 CONTACT(S), 2 ROW(S), FEMALE, 0.156 INCH PITCH, SOLDER TERMINAL, M3, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	833-064-500-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	64
Number of Positions/Bay/Row [custom]	32
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

833-064 Series

...

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions/Bay/Row [custom]	Card Type	Color	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows	Contact Material	Termination Rows	Pitch [x]	Pitch [x]	Read Out	Gender	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Finish	Contact Type	Flange Feature	Flange Feature	Features
EDAC Inc. 833-064-520-203	64	10 Áin	0.25 Ám	Through Hole	32	Non Specified - Dual Edge	Green	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Copper Alloy	2	0.156 in	3.96 mm	Dual	Female	0.116 in	Floating Bobbin Flush Mount	2.95 mm	125 °C	-40 °C	Solder	Gold	Cantilever
EDAC Inc. 833-064-500-802	64	10 Áin	0.25 Ám	Through Hole	32	Non Specified - Dual Edge	Green	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Copper Alloy	2	0.156 in	3.96 mm	Dual	Female				125 °C	-40 °C	Solder Eyelet(s)	Gold	Cantilever	3.25 mm	0.128 in
EDAC Inc. 833-064-524-808	64	10 Áin	0.25 Ám	Through Hole	32	Non Specified - Dual Edge	Green	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Copper Alloy	2	0.156 in	3.96 mm	Dual	Female		4-40 Threaded Insert Top Mount Opening		125 °C	-40 °C	Solder	Gold	Cantilever
EDAC Inc. 833-064-556-202	64	10 Áin	0.25 Ám	Board Edge Straddle Mount	32	Non Specified - Dual Edge	Green	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Copper Alloy	2	0.156 in	3.96 mm	Dual	Female	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	125 °C	-40 °C	Solder	Gold	Cantilever			Card Extender
EDAC Inc. 833-064-520-208	64	10 Áin	0.25 Ám	Through Hole	32	Non Specified - Dual Edge	Green	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Copper Alloy	2	0.156 in	3.96 mm	Dual	Female		4-40 Flush Mount Threaded Insert Top Opening		125 °C	-40 °C	Solder	Gold	Cantilever
EDAC Inc. 833-064-520-807	64	10 Áin	0.25 Ám	Through Hole	32	Non Specified - Dual Edge	Green	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Copper Alloy	2	0.156 in	3.96 mm	Dual	Female		M3 Threaded Insert Top Mount Opening		125 °C	-40 °C	Solder	Gold	Cantilever
EDAC Inc. 833-064-523-812	64	10 Áin	0.25 Ám	Through Hole	32	Non Specified - Dual Edge	Green	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Copper Alloy	2	0.156 in	3.96 mm	Dual	Female		Side Mount Opening Unthreaded		125 °C	-40 °C	Solder	Gold	Cantilever	3.25 mm	0.128 in
EDAC Inc. 833-064-542-208	64	10 Áin	0.25 Ám	Through Hole	32	Non Specified - Dual Edge	Green	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Copper Alloy	2	0.156 in	3.96 mm	Dual	Female		4-40 Flush Mount Threaded Insert Top Opening		125 °C	-40 °C	Wire Wrap	Gold	Cantilever
EDAC Inc. 833-064-555-204	64	10 Áin	0.25 Ám	Board Edge Straddle Mount	32	Non Specified - Dual Edge	Green	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Copper Alloy	2	0.156 in	3.96 mm	Dual	Female	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	125 °C	-40 °C	Solder	Gold	Cantilever			Card Extender
EDAC Inc. 833-064-500-207	64	10 Áin	0.25 Ám	Through Hole	32	Non Specified - Dual Edge	Green	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Copper Alloy	2	0.156 in	3.96 mm	Dual	Female		Flush Mount M3 Threaded Insert Top Opening		125 °C	-40 °C	Solder Eyelet(s)	Gold	Cantilever

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 83.40

Description

General part information

833-064 Series

64 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
