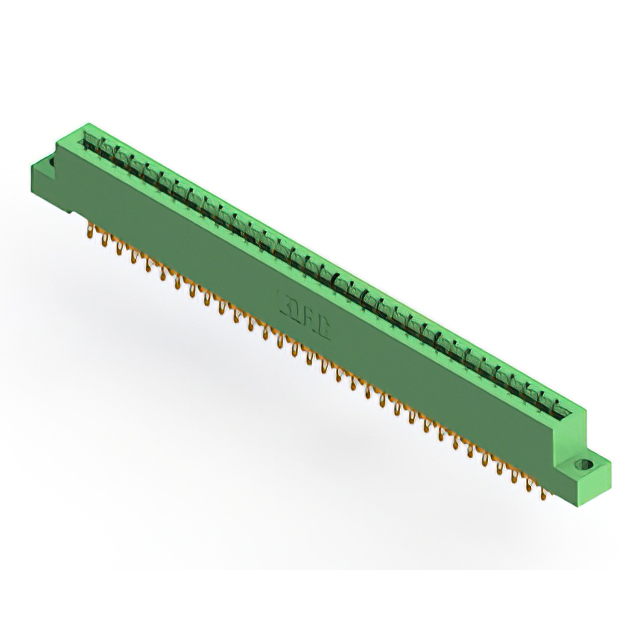

CARD EDGE CONNECTOR, 64 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE 0.156, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
833-064-555-204
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 64 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE 0.156, GREEN INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 833-064-555-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 64 |
| Number of Positions/Bay/Row [custom] | 32 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
833-064 Series
...
| Part | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Positions/Bay/Row [custom] | Card Type | Color | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Contact Material | Termination Rows | Pitch [x] | Pitch [x] | Read Out | Gender | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Contact Finish | Contact Type | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 64 | 10 Áin | 0.25 Ám | Through Hole | 32 | Non Specified - Dual Edge | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Copper Alloy | 2 | 0.156 in | 3.96 mm | Dual | Female | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 125 °C | -40 °C | Solder | Gold | Cantilever | |||
EDAC Inc. | 64 | 10 Áin | 0.25 Ám | Through Hole | 32 | Non Specified - Dual Edge | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Copper Alloy | 2 | 0.156 in | 3.96 mm | Dual | Female | 125 °C | -40 °C | Solder Eyelet(s) | Gold | Cantilever | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 64 | 10 Áin | 0.25 Ám | Through Hole | 32 | Non Specified - Dual Edge | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Copper Alloy | 2 | 0.156 in | 3.96 mm | Dual | Female | 4-40 Threaded Insert Top Mount Opening | 125 °C | -40 °C | Solder | Gold | Cantilever | |||||
EDAC Inc. | 64 | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | 32 | Non Specified - Dual Edge | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Copper Alloy | 2 | 0.156 in | 3.96 mm | Dual | Female | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 125 °C | -40 °C | Solder | Gold | Cantilever | Card Extender | ||
EDAC Inc. | 64 | 10 Áin | 0.25 Ám | Through Hole | 32 | Non Specified - Dual Edge | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Copper Alloy | 2 | 0.156 in | 3.96 mm | Dual | Female | 4-40 Flush Mount Threaded Insert Top Opening | 125 °C | -40 °C | Solder | Gold | Cantilever | |||||
EDAC Inc. | 64 | 10 Áin | 0.25 Ám | Through Hole | 32 | Non Specified - Dual Edge | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Copper Alloy | 2 | 0.156 in | 3.96 mm | Dual | Female | M3 Threaded Insert Top Mount Opening | 125 °C | -40 °C | Solder | Gold | Cantilever | |||||
EDAC Inc. | 64 | 10 Áin | 0.25 Ám | Through Hole | 32 | Non Specified - Dual Edge | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Copper Alloy | 2 | 0.156 in | 3.96 mm | Dual | Female | Side Mount Opening Unthreaded | 125 °C | -40 °C | Solder | Gold | Cantilever | 3.25 mm | 0.128 in | |||
EDAC Inc. | 64 | 10 Áin | 0.25 Ám | Through Hole | 32 | Non Specified - Dual Edge | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Copper Alloy | 2 | 0.156 in | 3.96 mm | Dual | Female | 4-40 Flush Mount Threaded Insert Top Opening | 125 °C | -40 °C | Wire Wrap | Gold | Cantilever | |||||
EDAC Inc. | 64 | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | 32 | Non Specified - Dual Edge | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Copper Alloy | 2 | 0.156 in | 3.96 mm | Dual | Female | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 125 °C | -40 °C | Solder | Gold | Cantilever | Card Extender | ||
EDAC Inc. | 64 | 10 Áin | 0.25 Ám | Through Hole | 32 | Non Specified - Dual Edge | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Copper Alloy | 2 | 0.156 in | 3.96 mm | Dual | Female | Flush Mount M3 Threaded Insert Top Opening | 125 °C | -40 °C | Solder Eyelet(s) | Gold | Cantilever |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
833-064 Series
64 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
