135101-R2-48.00

Active

Amphenol RF

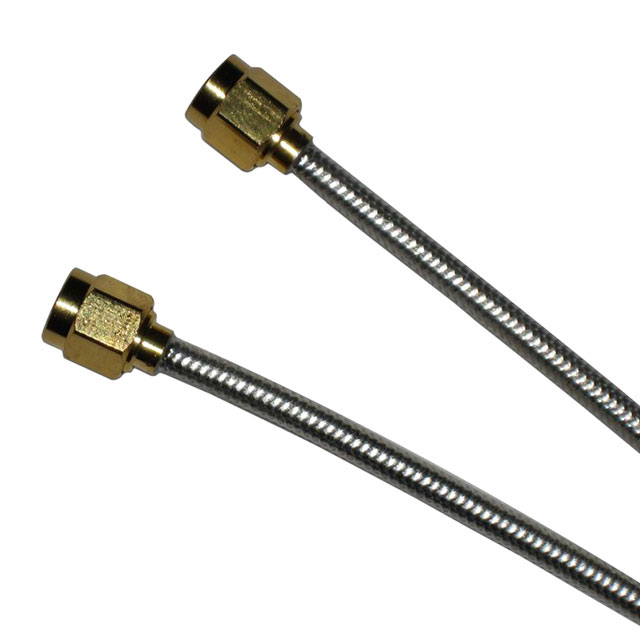

COAX CABLE SMA TO SMA 4'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

135101-R2-48.00

Active

Amphenol RF

COAX CABLE SMA TO SMA 4'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	135101-R2-48.00

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	Hand Formable .141
Color	Copper
Frequency - Max [Max]	12.4 GHz
Length	1200 mm
Length	4 ft
Length	48 in
Overall Impedance	50 Ohms
Style	SMA to SMA

135101 Series

Part	Color	1st Connector	Features	2nd Connector Mounting Type	1st Contact Gender	2nd Contact Gender	Cable Impedance	Length	Length	Length	Overall Impedance	Frequency - Max [Max]	Style	1st Connector Mounting Type	2nd Connector	Cable Type	Length [x]	Length [x]	Length [x]
Amphenol RF 135101-07-72.00	Copper	SMA Plug	Shielded	Free Hanging (In-Line)	Male	Male	50 Ohms	6 ft	72 in	1.8 m	50 Ohms	12.4 GHz	SMA to SMA	Free Hanging (In-Line)	SMA Plug	RG-142
Amphenol RF 135101-R1-M1.00	Gray	SMA Plug		Free Hanging (In-Line)	Male	Male		3.3 ft	39.4 in	1 m	50 Ohms	12.4 GHz	SMA to SMA	Free Hanging (In-Line)	SMA Plug	Hand Formable .085
Amphenol RF 135101-01-M0.75	Copper	SMA Plug	Shielded	Free Hanging (In-Line)	Male	Male	50 Ohms		29.53 "	750 mm	50 Ohms	3 GHz	SMA to SMA	Free Hanging (In-Line)	SMA Plug	RG-316
Amphenol RF 135101-03-M0.50	Copper	SMA Plug	Shielded	Free Hanging (In-Line)	Male	Male	50 Ohms		19.69 "	50 cm	50 Ohms	12.4 GHz	SMA to SMA	Free Hanging (In-Line)	SMA Plug	RG-316 DS
Amphenol RF 135101-07-12.00	Copper	SMA Plug	Shielded	Free Hanging (In-Line)	Male	Male	50 Ohms		12 "	304.8 mm	50 Ohms	12.4 GHz	SMA to SMA	Free Hanging (In-Line)	SMA Plug	RG-142
Amphenol RF 135101-R2-48.00	Copper	SMA Plug		Free Hanging (In-Line)	Male	Male		4 ft	48 in	1200 mm	50 Ohms	12.4 GHz	SMA to SMA	Free Hanging (In-Line)	SMA Plug	Hand Formable .141
Amphenol RF 135101-04-06.00	Black	SMA Plug	Shielded	Free Hanging (In-Line)	Male	Male	50 Ohms		6 in	152.4 mm	50 Ohms	1 GHz	SMA to SMA	Free Hanging (In-Line)	SMA Plug	RG-58
Amphenol RF 135101-07-M0.75	Copper	SMA Plug	Shielded	Free Hanging (In-Line)	Male	Male	50 Ohms		29.53 "	750 mm	50 Ohms	12.4 GHz	SMA to SMA	Free Hanging (In-Line)	SMA Plug	RG-142
Amphenol RF 135101-R1-18.00	Gray	SMA Plug		Free Hanging (In-Line)	Male	Male					50 Ohms	12.4 GHz	SMA to SMA	Free Hanging (In-Line)	SMA Plug	Hand Formable .085	457.2 mm	457.2 mm
Amphenol RF 135101-07-M0.25	Copper	SMA Plug	Shielded	Free Hanging (In-Line)	Male	Male	50 Ohms				50 Ohms	12.4 GHz	SMA to SMA	Free Hanging (In-Line)	SMA Plug	RG-142		250 mm	9.843 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 69.39
		10	$ 58.98
		25	$ 55.29
		50	$ 52.66
		100	$ 50.15

Description

General part information

135101 Series

Cable Assembly Coaxial SMA to SMA Hand Formable .141 48.0" (1.2m) 4.0'

Documents

Technical documentation and resources
