135101-03-M0.50
ActiveAmphenol RF

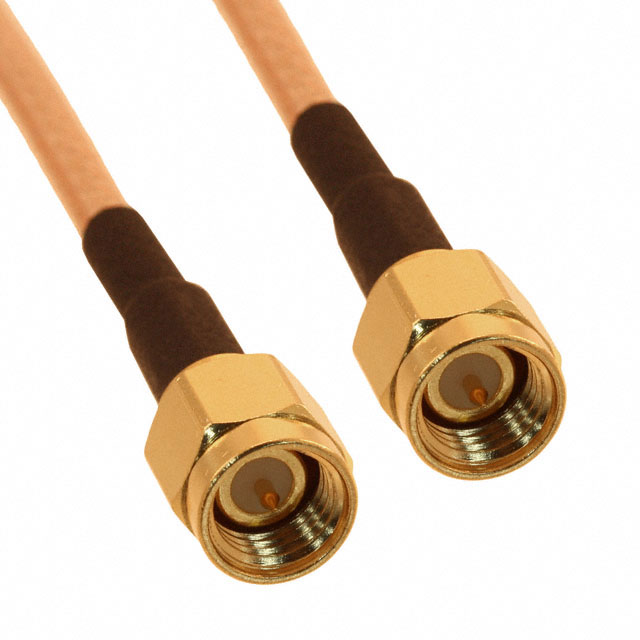

CBL ASSY SMA PLUG TO PLUG 19.69"
Deep-Dive with AI
Search across all available documentation for this part.
135101-03-M0.50
ActiveAmphenol RF
CBL ASSY SMA PLUG TO PLUG 19.69"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 135101-03-M0.50 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-316 DS |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 12.4 GHz |
| Length | 50 cm |
| Length | 19.69 " |
| Overall Impedance | 50 Ohms |
| Style | SMA to SMA |
135101 Series
| Part | Color | 1st Connector | Features | 2nd Connector Mounting Type | 1st Contact Gender | 2nd Contact Gender | Cable Impedance | Length | Length | Length | Overall Impedance | Frequency - Max [Max] | Style | 1st Connector Mounting Type | 2nd Connector | Cable Type | Length [x] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Copper | SMA Plug | Shielded | Free Hanging (In-Line) | Male | Male | 50 Ohms | 6 ft | 72 in | 1.8 m | 50 Ohms | 12.4 GHz | SMA to SMA | Free Hanging (In-Line) | SMA Plug | RG-142 | |||
Amphenol RF | Gray | SMA Plug | Free Hanging (In-Line) | Male | Male | 3.3 ft | 39.4 in | 1 m | 50 Ohms | 12.4 GHz | SMA to SMA | Free Hanging (In-Line) | SMA Plug | Hand Formable .085 | |||||
Amphenol RF | Copper | SMA Plug | Shielded | Free Hanging (In-Line) | Male | Male | 50 Ohms | 29.53 " | 750 mm | 50 Ohms | 3 GHz | SMA to SMA | Free Hanging (In-Line) | SMA Plug | RG-316 | ||||
Amphenol RF | Copper | SMA Plug | Shielded | Free Hanging (In-Line) | Male | Male | 50 Ohms | 19.69 " | 50 cm | 50 Ohms | 12.4 GHz | SMA to SMA | Free Hanging (In-Line) | SMA Plug | RG-316 DS | ||||
Amphenol RF | Copper | SMA Plug | Shielded | Free Hanging (In-Line) | Male | Male | 50 Ohms | 12 " | 304.8 mm | 50 Ohms | 12.4 GHz | SMA to SMA | Free Hanging (In-Line) | SMA Plug | RG-142 | ||||
Amphenol RF | Copper | SMA Plug | Free Hanging (In-Line) | Male | Male | 4 ft | 48 in | 1200 mm | 50 Ohms | 12.4 GHz | SMA to SMA | Free Hanging (In-Line) | SMA Plug | Hand Formable .141 | |||||
Amphenol RF | Black | SMA Plug | Shielded | Free Hanging (In-Line) | Male | Male | 50 Ohms | 6 in | 152.4 mm | 50 Ohms | 1 GHz | SMA to SMA | Free Hanging (In-Line) | SMA Plug | RG-58 | ||||
Amphenol RF | Copper | SMA Plug | Shielded | Free Hanging (In-Line) | Male | Male | 50 Ohms | 29.53 " | 750 mm | 50 Ohms | 12.4 GHz | SMA to SMA | Free Hanging (In-Line) | SMA Plug | RG-142 | ||||
Amphenol RF | Gray | SMA Plug | Free Hanging (In-Line) | Male | Male | 50 Ohms | 12.4 GHz | SMA to SMA | Free Hanging (In-Line) | SMA Plug | Hand Formable .085 | 457.2 mm | 457.2 mm | ||||||
Amphenol RF | Copper | SMA Plug | Shielded | Free Hanging (In-Line) | Male | Male | 50 Ohms | 50 Ohms | 12.4 GHz | SMA to SMA | Free Hanging (In-Line) | SMA Plug | RG-142 | 250 mm | 9.843 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 21.26 | |
| 10 | $ 18.62 | |||
| 25 | $ 17.82 | |||
| 50 | $ 17.24 | |||
| 100 | $ 16.67 | |||
| 250 | $ 15.75 | |||
| 500 | $ 15.29 | |||
Description
General part information
135101 Series
Cable Assembly Coaxial SMA to SMA RG-316 DS 19.69" (500.00mm)
Documents
Technical documentation and resources
No documents available
