Technical Specifications
Parameters and characteristics commom to parts in this series

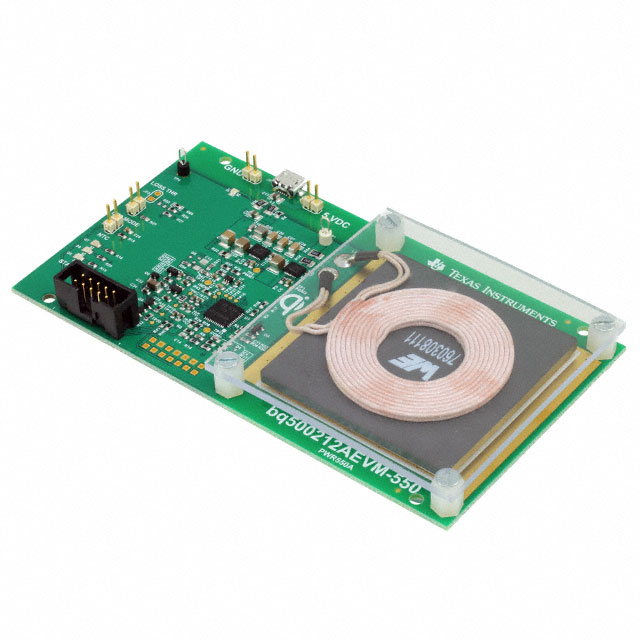

| Specification | BQ500212AEVM-550 | BQ500212 Series |
|---|---|---|
| Applications | - | Wireless Power Transmitter |
| Function | Wireless Power Supply/Charging | Wireless Power Supply/Charging |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 110 °C |
| Package / Case | - | 48-VFQFN Exposed Pad |
| Primary Attributes | Transmitter | Transmitter |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 48-VQFN (7x7) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ500212A | BQ500212A |
| Voltage - Supply | - | 3.6 V |
| Voltage - Supply | - | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
BQ500212 Series
Qi Compliant 5V Wireless Power Transmitter Manager
| Part | Applications | Package / Case | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Utilized IC / Part | Supplied Contents | Type | Primary Attributes | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ500212ARGZT | Wireless Power Transmitter | 48-VFQFN Exposed Pad | Surface Mount | 3.6 V | 3 V | 48-VQFN (7x7) | -40 °C | 110 °C | |||||
Texas Instruments BQ500212AEVM-550 | BQ500212A | Board(s) | Power Management | Transmitter | Wireless Power Supply/Charging | ||||||||
Texas Instruments BQ500212ARGZR | Wireless Power Transmitter | 48-VFQFN Exposed Pad | Surface Mount | 3.6 V | 3 V | 48-VQFN (7x7) | -40 °C | 110 °C |
Description
General part information
BQ500212 Series
The bq500212A is a Qi-certified value solution that integrates all functions required to control wireless power delivery to a single WPC1.1 compliant receiver. It is WPC1.1 compliant and designed for 5-V systems as a wireless power consortium type A5 or A11 transmitter. The bq500212Apingsthe surrounding environment for WPC compliant devices to be powered, safely engages the device, receives packet communication from the powered device and manages the power transfer according to WPC1.1 specification. To maximize flexibility in wireless power control applications, Dynamic Power Limiting (DPL) is featured on the bq500212A. Dynamic Power Limiting enhances user experience by seamlessly optimizing the usage of power available from limited input supplies.
The bq500212A supports both foreign object detection (FOD) and enhanced parasitic metal object detection (PMOD) for legacy product by continuously monitoring the efficiency of the established power transfer, protecting from power loss due to metal objects misplaced in the wireless power transfer field. The bq500212A handles any abnormal condition development during power transfer and provides indicator outputs. Comprehensive status and fault monitoring features enable a low cost yet robust, Qi-certified wireless power system design.
The bq500212A is available in a 48-pin, 7-mm × 7-mm VQFN package.
