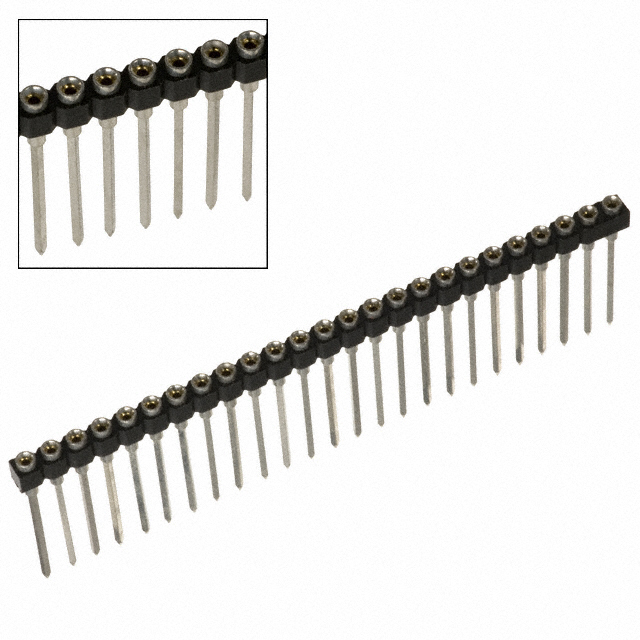

25-0503-30
ActiveAries Electronics
CONN SOCKET SIP 25POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
25-0503-30
ActiveAries Electronics
CONN SOCKET SIP 25POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 25-0503-30 |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post [custom] | Brass |
| Current Rating (Amps) | 3 A |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 25 |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Wire Wrap |
| Termination Post Length | 0.5 in |
| Termination Post Length | 12.7 mm |
| Type | SIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.44 | |
| 10 | $ 12.64 | |||
| 100 | $ 9.88 | |||
| 500 | $ 8.41 | |||
| 1000 | $ 7.88 | |||
Description
General part information
25-0503 Series
25 (1 x 25) Pos SIP Socket Gold Through Hole
