Specification	D31S15A

Approval Agency	cULus
Connector Style	Pin and Sleeve (2P3W)
Connector Type	Receptacle, Female Sockets
Current Rating	20 A
Features	Impact Resistant, Push-Twist Lock, Chemical Resistant, Cover
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Material Flammability Rating	UL94 V-2
Mounting Type	Panel Mount, Right Angle, Flange
Number of Positions	3
Termination	Screw
Voltage Rating	120 V

D31S Series

Part	Approval Agency	Number of Positions	Ingress Protection	Termination	Current Rating	Connector Type	Mounting Type	Features	Material Flammability Rating	Connector Style	Voltage Rating	Ingress Protection Description	Ingress Protection IP Rating
Altech Corporation D31S11A	cULus	3	IP44	Screw	20 A	Female Sockets Receptacle	Flange Panel Mount Right Angle	Chemical Resistant Cover Impact Resistant Push-Twist Lock	UL94 V-2	Pin and Sleeve (2P3W)	120 V
Altech Corporation D31S15A	cULus	3		Screw	20 A	Female Sockets Receptacle	Flange Panel Mount Right Angle	Chemical Resistant Cover Impact Resistant Push-Twist Lock	UL94 V-2	Pin and Sleeve (2P3W)	120 V	Dust Tight Waterproof	IP67
Altech Corporation D31S55A	cULus	3		Screw	20 A	Female Sockets Receptacle	Flange Panel Mount Right Angle	Chemical Resistant Cover Impact Resistant Push-Twist Lock	UL94 V-2	Pin and Sleeve (2P3W)	480 VAC	Dust Tight Waterproof	IP67
Altech Corporation D31S10A
Altech Corporation D31S20A	CE cULus	3		Screw	20 A	Female Sockets Receptacle	Angled Flange Panel Mount	Chemical Resistant Impact Resistant Push-Twist Lock	UL94 V-2	Pin and Sleeve (2P3W)	250 V	Dust Tight Waterproof	IP67
Altech Corporation D31S70A
Altech Corporation D31S21A	cULus	3	IP44	Screw	20 A	Female Sockets Receptacle	Flange Panel Mount Right Angle	Chemical Resistant Cover Impact Resistant Push-Twist Lock	UL94 V-2	Pin and Sleeve (2P3W)	250 V
Altech Corporation D31S51A	cULus	3	IP44	Screw	20 A	Female Sockets Receptacle	Flange Panel Mount Right Angle	Chemical Resistant Cover Impact Resistant Push-Twist Lock	UL94 V-2	Pin and Sleeve (2P3W)	480 VAC

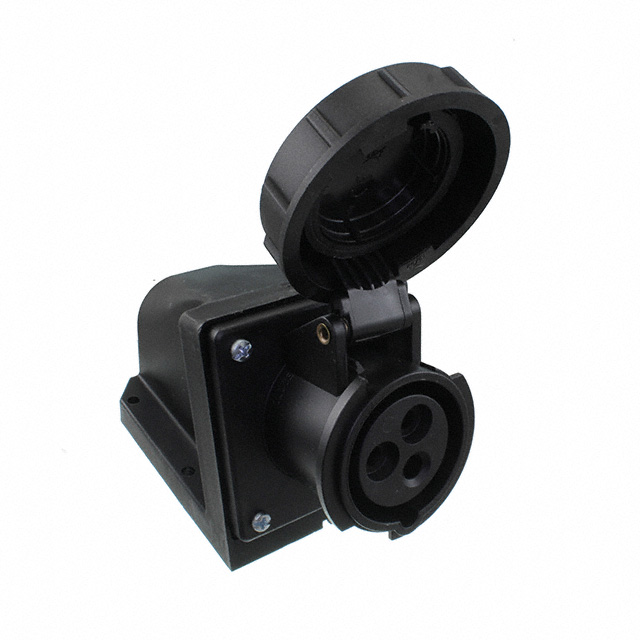

Altech Corporation D31S75A	cULus	3		Screw	20 A	Female Sockets Receptacle	Flange Panel Mount Right Angle	Chemical Resistant Cover Impact Resistant Push-Twist Lock	UL94 V-2	Pin and Sleeve (2P3W)	277 VAC	Dust Tight Waterproof	IP67
Altech Corporation D31S25A	cULus	3		Screw	20 A	Female Sockets Receptacle	Flange Panel Mount Right Angle	Chemical Resistant Cover Impact Resistant Push-Twist Lock	UL94 V-2	Pin and Sleeve (2P3W)	250 V	Dust Tight Waterproof	IP67

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

D31S15A | Datasheet
