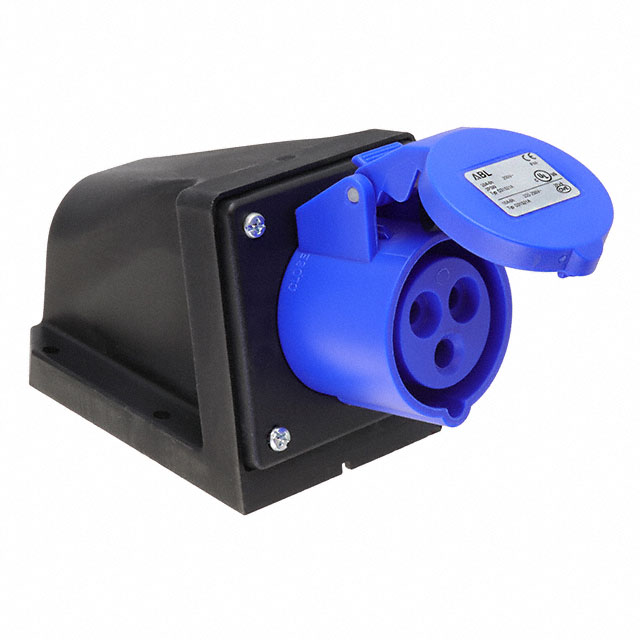

D31S21A

Active

Altech Corporation

RECPF20A2P3W6H250V BLUEIP44SMALL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D31S21A

Active

Altech Corporation

RECPF20A2P3W6H250V BLUEIP44SMALL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D31S21A

Approval Agency	cULus
Connector Style	Pin and Sleeve (2P3W)
Connector Type	Receptacle, Female Sockets
Current Rating (Amps)	20 A
Features	Cover, Push-Twist Lock, Chemical Resistant, Impact Resistant
Ingress Protection	IP44
Material Flammability Rating	UL94 V-2
Mounting Type	Panel Mount, Right Angle, Flange
Termination	Screw
Voltage Rating	250 VAC

D31S Series

Part	Connector Style	Approval Agency	Connector Type	Voltage Rating	Current Rating (Amps)	Termination	Mounting Type	Material Flammability Rating	Ingress Protection	Features
Altech Corporation D31S11A	Pin and Sleeve (2P3W)	cULus	Receptacle Female Sockets	120 VAC	20 A	Screw	Flange Panel Mount Right Angle	UL94 V-2	IP44	Chemical Resistant Cover Impact Resistant Push-Twist Lock
TE Connectivity Raychem Cable Protection D31S15A	Pin and Sleeve (2P3W)	cULus	Receptacle Female Sockets	120 VAC	20 A	Screw	Flange Panel Mount Right Angle	UL94 V-2	IP67 - Dust Tight Waterproof	Chemical Resistant Cover Impact Resistant Push-Twist Lock
Altech Corporation D31S15A	Pin and Sleeve (2P3W)	cULus	Receptacle Female Sockets	120 VAC	20 A	Screw	Flange Panel Mount Right Angle	UL94 V-2	IP67 - Dust Tight Waterproof	Chemical Resistant Cover Impact Resistant Push-Twist Lock
TE Connectivity Raychem Cable Protection D31S55A	Pin and Sleeve (2P3W)	cULus	Receptacle Female Sockets	480 VAC	20 A	Screw	Flange Panel Mount Right Angle	UL94 V-2	IP67 - Dust Tight Waterproof	Chemical Resistant Cover Impact Resistant Push-Twist Lock
Altech Corporation D31S55A	Pin and Sleeve (2P3W)	cULus	Receptacle Female Sockets	480 VAC	20 A	Screw	Flange Panel Mount Right Angle	UL94 V-2	IP67 - Dust Tight Waterproof	Chemical Resistant Cover Impact Resistant Push-Twist Lock
Altech Corporation D31S10A
TE Connectivity Raychem Cable Protection D31S20A
Altech Corporation D31S20A
Altech Corporation D31S70A
Altech Corporation D31S21A	Pin and Sleeve (2P3W)	cULus	Receptacle Female Sockets	250 VAC	20 A	Screw	Flange Panel Mount Right Angle	UL94 V-2	IP44	Chemical Resistant Cover Impact Resistant Push-Twist Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 72.47
		10	$ 66.51
		25	$ 63.95
		50	$ 61.82
		100	$ 58.41
Newark	Each	1	$ 83.16
		25	$ 79.36
		50	$ 77.25
		100	$ 74.72
		250	$ 72.18

Description

General part information

D31S Series

Power Connector Receptacle, Female Sockets Pin and Sleeve (2P3W) Panel Mount, Flange, Right Angle
