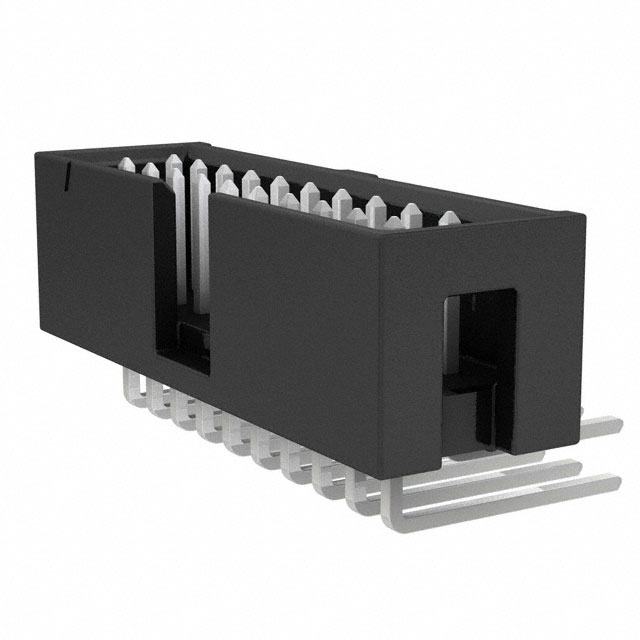

TST-110-05-T-D-RA

Active

Samtec Inc.

CONN HEADER R/A 20POS 2.54MM

Deep-Dive with AI

DocumentsTST-102-01-G-D Datasheet 02 .100" High-Temp Shrouded Terminal Strip, Cable Mate +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TST-110-05-T-D-RA

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Length - Post	0.23 in
Contact Length - Post	5.84 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.365 in
Insulation Height	9.27 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

TST-110 Series

Headers & Wire Housings Shrouded PCB Headers, 0.100" pitch

...

Part	Insulation Height [custom]	Insulation Height [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Fastening Type	Contact Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Mounting Type	Contact Material	Insulation Color	Number of Positions Loaded	Contact Shape	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Termination	Contact Length - Mating	Contact Length - Mating	Style	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post
Samtec Inc. TST-112-05-G-D-RA
Samtec Inc. TST-115-02-G-S	0.35 in	8.89 mm	10 çin	0.25 çm	Header	Push-Pull	Male Pin	15	-55 °C	125 °C	Shrouded - 4 Wall	13.46 mm	0.53 in	Gold	Through Hole	Phosphor Bronze	Black	All	Square	UL94 V-0	3 µin	0.076 µm	Keying Slot	Polybutylene Terephthalate (PBT) Glass Filled	0.165 in	4.19 mm	1	Solder	6.35 mm	0.25 in	Board to Cable/Wire	0.1 in	2.54 mm	Gold
Samtec Inc. TST-110-04-G-D-RA			10 çin	0.25 çm	Header	Push-Pull	Male Pin	20	-55 °C	125 °C	Shrouded - 4 Wall			Gold	Through Hole Right Angle	Phosphor Bronze	Black	All	Square	UL94 V-0	3 µin	0.076 µm	Keying Slot	Polybutylene Terephthalate (PBT) Glass Filled			2	Solder	6.35 mm	0.25 in	Board to Cable/Wire	0.1 in	2.54 mm	Gold	2.54 mm	0.1 in	0.365 in	9.27 mm	0.13 in	3.3 mm
Samtec Inc. TST-130-01-L-D-LL	0.35 in	8.89 mm	10 çin	0.25 çm	Header	Push-Pull	Male Pin	60	-55 °C	125 °C	Shrouded - 4 Wall	12.19 mm	0.48 in	Tin	Through Hole	Phosphor Bronze	Black	All	Square	UL94 V-0			Keying Slot	Polybutylene Terephthalate (PBT) Glass Filled			2	Kinked Pin Solder	6.35 mm	0.25 in	Board to Cable/Wire	0.1 in	2.54 mm	Gold	2.54 mm	0.1 in			0.115 in	2.92 mm
Samtec Inc. TST-115-01-G-D-LL	0.35 in	8.89 mm	10 çin	0.25 çm	Header	Push-Pull	Male Pin	30	-55 °C	125 °C	Shrouded - 4 Wall	12.19 mm	0.48 in	Gold	Through Hole	Phosphor Bronze	Black	All	Square	UL94 V-0	3 µin	0.076 µm	Keying Slot	Polybutylene Terephthalate (PBT) Glass Filled			2	Kinked Pin Solder	6.35 mm	0.25 in	Board to Cable/Wire	0.1 in	2.54 mm	Gold	2.54 mm	0.1 in			0.115 in	2.92 mm
Samtec Inc. TST-110-02-L-D-LL	0.35 in	8.89 mm	10 çin	0.25 çm	Header	Push-Pull	Male Pin	20	-55 °C	125 °C	Shrouded - 4 Wall	13.46 mm	0.53 in	Tin	Through Hole	Phosphor Bronze	Black	All	Square	UL94 V-0			Keying Slot	Polybutylene Terephthalate (PBT) Glass Filled	0.165 in	4.19 mm	2	Kinked Pin Solder	6.35 mm	0.25 in	Board to Cable/Wire	0.1 in	2.54 mm	Gold	2.54 mm	0.1 in
Samtec Inc. TST-110-02-S-D	0.35 in	8.89 mm	30 Áin	0.76 Ám	Header	Push-Pull	Male Pin	20	-55 °C	125 °C	Shrouded - 4 Wall	13.46 mm	0.53 in	Tin	Through Hole	Phosphor Bronze	Black	All	Square	UL94 V-0			Keying Slot	Polybutylene Terephthalate (PBT) Glass Filled	0.165 in	4.19 mm	2	Solder	6.35 mm	0.25 in	Board to Cable/Wire	0.1 in	2.54 mm	Gold	2.54 mm	0.1 in
Samtec Inc. TST-125-01-S-D	0.35 in	8.89 mm	30 Áin	0.76 Ám	Header	Push-Pull	Male Pin	50	-55 °C	125 °C	Shrouded - 4 Wall	12.19 mm	0.48 in	Tin	Through Hole	Phosphor Bronze	Black	All	Square	UL94 V-0			Keying Slot	Polybutylene Terephthalate (PBT) Glass Filled			2	Solder	6.35 mm	0.25 in	Board to Cable/Wire	0.1 in	2.54 mm	Gold	2.54 mm	0.1 in			0.115 in	2.92 mm
Samtec Inc. TST-130-02-L-D	0.35 in	8.89 mm	10 çin	0.25 çm	Header	Push-Pull	Male Pin	60	-55 °C	125 °C	Shrouded - 4 Wall	13.46 mm	0.53 in	Tin	Through Hole	Phosphor Bronze	Black	All	Square	UL94 V-0			Keying Slot	Polybutylene Terephthalate (PBT) Glass Filled	0.165 in	4.19 mm	2	Solder	6.35 mm	0.25 in	Board to Cable/Wire	0.1 in	2.54 mm	Gold	2.54 mm	0.1 in
Samtec Inc. TST-110-05-T-D-RA					Header	Push-Pull	Male Pin	20	-55 °C	105 ░C	Shrouded - 4 Wall			Tin	Through Hole Right Angle	Phosphor Bronze	Black	All	Square	UL94 V-0			Keying Slot	Polybutylene Terephthalate (PBT) Glass Filled			2	Solder	6.35 mm	0.25 in	Board to Cable/Wire	0.1 in	2.54 mm		2.54 mm	0.1 in	0.365 in	9.27 mm	0.23 in	5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.75
		50	$ 2.24
		100	$ 1.91
		500	$ 1.69
		1000	$ 1.57
