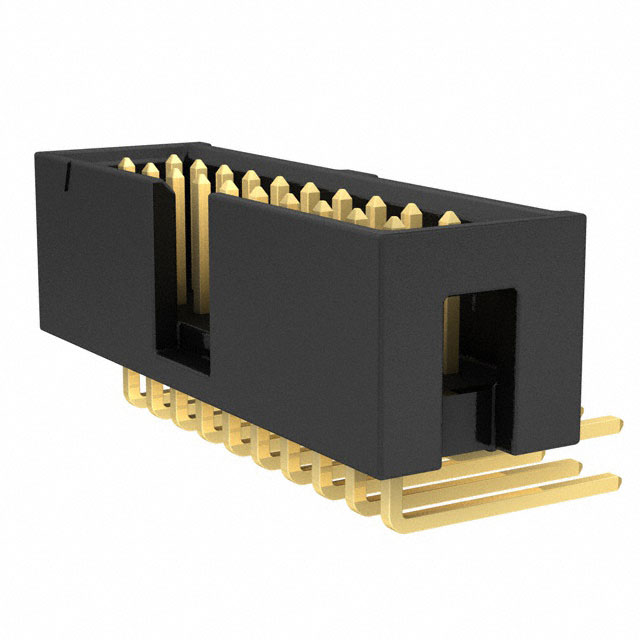

TST-110-04-G-D-RA - TST-110-0x-G-D-RA

TST-110-04-G-D-RA

Active
Samtec Inc.

CONN HEADER R/A 20POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents.100" High-Temp Shrouded Terminal Strip, Cable MateDatasheet+1
TST-110-04-G-D-RA - TST-110-0x-G-D-RA

TST-110-04-G-D-RA

Active
Samtec Inc.

CONN HEADER R/A 20POS 2.54MM

Deep-Dive with AI

Documents.100" High-Temp Shrouded Terminal Strip, Cable MateDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationTST-110-04-G-D-RA
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostGold
Contact Finish Thickness - Mating10 çin
Contact Finish Thickness - Mating0.25 çm
Contact Finish Thickness - Post3 µin
Contact Finish Thickness - Post0.076 µm
Contact Length - Mating6.35 mm
Contact Length - Mating0.25 in
Contact Length - Post0.13 in
Contact Length - Post3.3 mm
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Fastening TypePush-Pull
FeaturesKeying Slot
Insulation ColorBlack
Insulation Height0.365 in
Insulation Height9.27 mm
Insulation MaterialPolybutylene Terephthalate (PBT), Glass Filled
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions20
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating0.1 in
Pitch - Mating2.54 mm
Row Spacing - Mating [x]2.54 mm
Row Spacing - Mating [x]0.1 in
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder

TST-110 Series

Headers & Wire Housings Shrouded PCB Headers, 0.100" pitch

...
PartInsulation Height [custom]Insulation Height [custom]Contact Finish Thickness - MatingContact Finish Thickness - MatingConnector TypeFastening TypeContact TypeNumber of PositionsOperating Temperature [Min]Operating Temperature [Max]ShroudingOverall Contact LengthOverall Contact LengthContact Finish - PostMounting TypeContact MaterialInsulation ColorNumber of Positions LoadedContact ShapeMaterial Flammability RatingContact Finish Thickness - PostContact Finish Thickness - PostFeaturesInsulation MaterialContact Length - Post [x]Contact Length - Post [x]Number of RowsTerminationContact Length - MatingContact Length - MatingStylePitch - MatingPitch - MatingContact Finish - MatingRow Spacing - Mating [x]Row Spacing - Mating [x]Insulation HeightInsulation HeightContact Length - PostContact Length - Post
Samtec Inc.
TST-112-05-G-D-RA
Samtec Inc.
TST-115-02-G-S
0.35 in
8.89 mm
10 çin
0.25 çm
Header
Push-Pull
Male Pin
15
-55 °C
125 °C
Shrouded - 4 Wall
13.46 mm
0.53 in
Gold
Through Hole
Phosphor Bronze
Black
All
Square
UL94 V-0
3 µin
0.076 µm
Keying Slot
Polybutylene Terephthalate (PBT)
Glass Filled
0.165 in
4.19 mm
1
Solder
6.35 mm
0.25 in
Board to Cable/Wire
0.1 in
2.54 mm
Gold
Samtec Inc.
TST-110-04-G-D-RA
10 çin
0.25 çm
Header
Push-Pull
Male Pin
20
-55 °C
125 °C
Shrouded - 4 Wall
Gold
Through Hole
Right Angle
Phosphor Bronze
Black
All
Square
UL94 V-0
3 µin
0.076 µm
Keying Slot
Polybutylene Terephthalate (PBT)
Glass Filled
2
Solder
6.35 mm
0.25 in
Board to Cable/Wire
0.1 in
2.54 mm
Gold
2.54 mm
0.1 in
0.365 in
9.27 mm
0.13 in
3.3 mm
Samtec Inc.
TST-130-01-L-D-LL
0.35 in
8.89 mm
10 çin
0.25 çm
Header
Push-Pull
Male Pin
60
-55 °C
125 °C
Shrouded - 4 Wall
12.19 mm
0.48 in
Tin
Through Hole
Phosphor Bronze
Black
All
Square
UL94 V-0
Keying Slot
Polybutylene Terephthalate (PBT)
Glass Filled
2
Kinked Pin
Solder
6.35 mm
0.25 in
Board to Cable/Wire
0.1 in
2.54 mm
Gold
2.54 mm
0.1 in
0.115 in
2.92 mm
Samtec Inc.
TST-115-01-G-D-LL
0.35 in
8.89 mm
10 çin
0.25 çm
Header
Push-Pull
Male Pin
30
-55 °C
125 °C
Shrouded - 4 Wall
12.19 mm
0.48 in
Gold
Through Hole
Phosphor Bronze
Black
All
Square
UL94 V-0
3 µin
0.076 µm
Keying Slot
Polybutylene Terephthalate (PBT)
Glass Filled
2
Kinked Pin
Solder
6.35 mm
0.25 in
Board to Cable/Wire
0.1 in
2.54 mm
Gold
2.54 mm
0.1 in
0.115 in
2.92 mm
Samtec Inc.
TST-110-02-L-D-LL
0.35 in
8.89 mm
10 çin
0.25 çm
Header
Push-Pull
Male Pin
20
-55 °C
125 °C
Shrouded - 4 Wall
13.46 mm
0.53 in
Tin
Through Hole
Phosphor Bronze
Black
All
Square
UL94 V-0
Keying Slot
Polybutylene Terephthalate (PBT)
Glass Filled
0.165 in
4.19 mm
2
Kinked Pin
Solder
6.35 mm
0.25 in
Board to Cable/Wire
0.1 in
2.54 mm
Gold
2.54 mm
0.1 in
Samtec Inc.
TST-110-02-S-D
0.35 in
8.89 mm
30 Áin
0.76 Ám
Header
Push-Pull
Male Pin
20
-55 °C
125 °C
Shrouded - 4 Wall
13.46 mm
0.53 in
Tin
Through Hole
Phosphor Bronze
Black
All
Square
UL94 V-0
Keying Slot
Polybutylene Terephthalate (PBT)
Glass Filled
0.165 in
4.19 mm
2
Solder
6.35 mm
0.25 in
Board to Cable/Wire
0.1 in
2.54 mm
Gold
2.54 mm
0.1 in
Samtec Inc.
TST-125-01-S-D
0.35 in
8.89 mm
30 Áin
0.76 Ám
Header
Push-Pull
Male Pin
50
-55 °C
125 °C
Shrouded - 4 Wall
12.19 mm
0.48 in
Tin
Through Hole
Phosphor Bronze
Black
All
Square
UL94 V-0
Keying Slot
Polybutylene Terephthalate (PBT)
Glass Filled
2
Solder
6.35 mm
0.25 in
Board to Cable/Wire
0.1 in
2.54 mm
Gold
2.54 mm
0.1 in
0.115 in
2.92 mm
Samtec Inc.
TST-130-02-L-D
0.35 in
8.89 mm
10 çin
0.25 çm
Header
Push-Pull
Male Pin
60
-55 °C
125 °C
Shrouded - 4 Wall
13.46 mm
0.53 in
Tin
Through Hole
Phosphor Bronze
Black
All
Square
UL94 V-0
Keying Slot
Polybutylene Terephthalate (PBT)
Glass Filled
0.165 in
4.19 mm
2
Solder
6.35 mm
0.25 in
Board to Cable/Wire
0.1 in
2.54 mm
Gold
2.54 mm
0.1 in
Samtec Inc.
TST-110-05-T-D-RA
Header
Push-Pull
Male Pin
20
-55 °C
105 ░C
Shrouded - 4 Wall
Tin
Through Hole
Right Angle
Phosphor Bronze
Black
All
Square
UL94 V-0
Keying Slot
Polybutylene Terephthalate (PBT)
Glass Filled
2
Solder
6.35 mm
0.25 in
Board to Cable/Wire
0.1 in
2.54 mm
2.54 mm
0.1 in
0.365 in
9.27 mm
0.23 in
5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 3.69
25$ 3.33
50$ 3.10
100$ 2.95
500$ 2.75

Description

General part information

TST-110 Series

Headers & Wire Housings Shrouded PCB Headers, 0.100" pitch
