887-020-500-204
ActiveEDAC Inc.

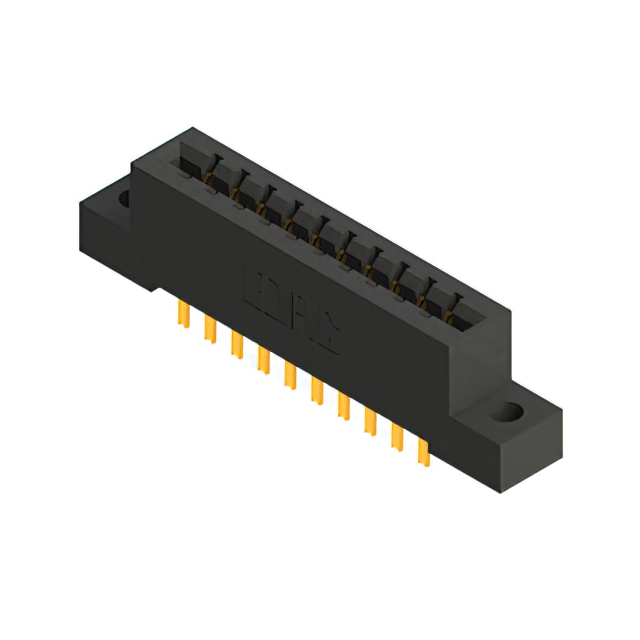

CONN EDGE DUAL FMALE 20POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
887-020-500-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 20POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 887-020-500-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Positions/Bay/Row [custom] | 10 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
887-020 Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Termination | Number of Positions | Mounting Type | Number of Rows | Gender | Color | Contact Material | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Card Type | Pitch [x] | Pitch [x] | Features | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | Cantilever | Wire Wrap | 20 | Through Hole | 1 | Female | Black | Copper Alloy | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Gold | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 20 | 20 | 20 | Non Specified - Single Edge | 0.156 in | 3.96 mm | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | Cantilever | Solder | 20 | Board Edge Straddle Mount | 2 | Female | Black | Copper Alloy | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Gold | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Card Extender | 10 | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | Cantilever | Solder | 20 | Through Hole Right Angle | 2 | Female | Black | Copper Alloy | Side Mount Opening Unthreaded | Gold | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 10 | 3.25 mm | 0.128 in | ||||||
EDAC Inc. | 10 Áin | 0.25 Ám | Cantilever | Wire Wrap | 20 | Through Hole | 1 | Female | Black | Copper Alloy | Gold | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 20 | 20 | 20 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 3.25 mm | 0.128 in | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | Cantilever | Solder | 20 | Through Hole Right Angle | 1 | Female | Black | Copper Alloy | Gold | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 20 | 20 | 20 | Non Specified - Single Edge | 0.156 in | 3.96 mm | |||||||
EDAC Inc. | 10 Áin | 0.25 Ám | Cantilever | Wire Wrap | 20 | Through Hole | 2 | Female | Black | Copper Alloy | M3 Threaded Insert Top Mount Opening | Gold | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 10 | ||||||||
EDAC Inc. | 10 Áin | 0.25 Ám | Cantilever | Wire Wrap | 20 | Through Hole | 1 | Female | Black | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | Gold | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 20 | 20 | 20 | Non Specified - Single Edge | 0.156 in | 3.96 mm | ||||||
EDAC Inc. | 10 Áin | 0.25 Ám | Cantilever | Solder | 20 | Through Hole | 1 | Female | Black | Copper Alloy | Gold | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 20 | 20 | 20 | Non Specified - Single Edge | 0.156 in | 3.96 mm | |||||||
EDAC Inc. | 10 Áin | 0.25 Ám | Cantilever | Solder Eyelet(s) | 20 | Through Hole | 2 | Female | Black | Copper Alloy | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Gold | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 10 | ||||||
EDAC Inc. | 10 Áin | 0.25 Ám | Cantilever | Wire Wrap | 20 | Through Hole | 2 | Female | Black | Copper Alloy | Gold | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 10 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
887-020 Series
20 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
