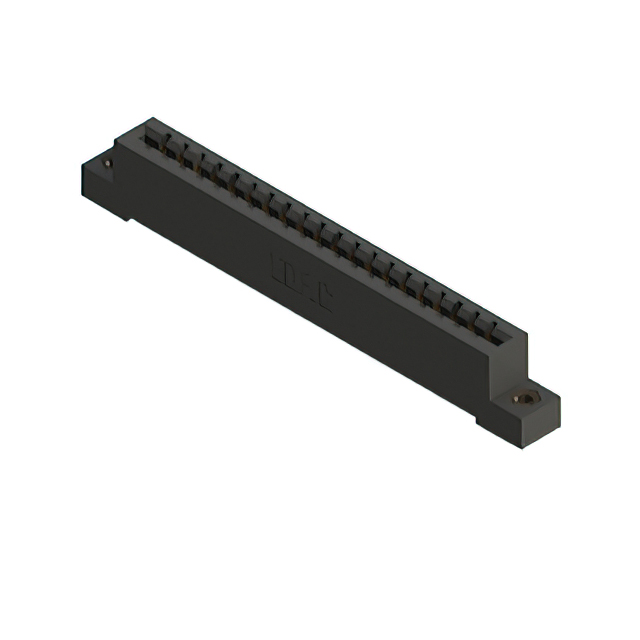

887-020-544-107

Active

EDAC Inc.

CONN EDGE SGL FMALE 20POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

887-020-544-107

Active

EDAC Inc.

CONN EDGE SGL FMALE 20POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	887-020-544-107

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	20
Number of Positions/Bay/Row [custom]	20
Number of Positions/Bay/Row [custom]	20
Number of Positions/Bay/Row [custom]	20
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

887-020 Series

...

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Termination	Number of Positions	Mounting Type	Number of Rows	Gender	Color	Contact Material	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Read Out	Material - Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Card Type	Pitch [x]	Pitch [x]	Features	Number of Positions/Bay/Row [custom]	Flange Feature	Flange Feature
EDAC Inc. 887-020-542-104	10 Áin	0.25 Ám	Cantilever	Wire Wrap	20	Through Hole	1	Female	Black	Copper Alloy	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Gold	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	20	20	20	Non Specified - Single Edge	0.156 in	3.96 mm
EDAC Inc. 887-020-556-204	10 Áin	0.25 Ám	Cantilever	Solder	20	Board Edge Straddle Mount	2	Female	Black	Copper Alloy	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Gold	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Polyphenylene Sulfide (PPS)	125 °C	-40 °C				Non Specified - Dual Edge	0.156 in	3.96 mm	Card Extender	10
EDAC Inc. 887-020-558-812	10 Áin	0.25 Ám	Cantilever	Solder	20	Through Hole Right Angle	2	Female	Black	Copper Alloy		Side Mount Opening Unthreaded		Gold	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Polyphenylene Sulfide (PPS)	125 °C	-40 °C				Non Specified - Dual Edge	0.156 in	3.96 mm		10	3.25 mm	0.128 in
EDAC Inc. 887-020-542-602	10 Áin	0.25 Ám	Cantilever	Wire Wrap	20	Through Hole	1	Female	Black	Copper Alloy				Gold	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	20	20	20	Non Specified - Single Edge	0.156 in	3.96 mm			3.25 mm	0.128 in
EDAC Inc. 887-020-558-101	10 Áin	0.25 Ám	Cantilever	Solder	20	Through Hole Right Angle	1	Female	Black	Copper Alloy				Gold	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	20	20	20	Non Specified - Single Edge	0.156 in	3.96 mm
EDAC Inc. 887-020-541-807	10 Áin	0.25 Ám	Cantilever	Wire Wrap	20	Through Hole	2	Female	Black	Copper Alloy		M3 Threaded Insert Top Mount Opening		Gold	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Polyphenylene Sulfide (PPS)	125 °C	-40 °C				Non Specified - Dual Edge	0.156 in	3.96 mm		10
EDAC Inc. 887-020-544-107	10 Áin	0.25 Ám	Cantilever	Wire Wrap	20	Through Hole	1	Female	Black	Copper Alloy		Flush Mount M3 Threaded Insert Top Opening		Gold	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	20	20	20	Non Specified - Single Edge	0.156 in	3.96 mm
EDAC Inc. 887-020-524-101	10 Áin	0.25 Ám	Cantilever	Solder	20	Through Hole	1	Female	Black	Copper Alloy				Gold	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	20	20	20	Non Specified - Single Edge	0.156 in	3.96 mm
EDAC Inc. 887-020-500-204	10 Áin	0.25 Ám	Cantilever	Solder Eyelet(s)	20	Through Hole	2	Female	Black	Copper Alloy	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Gold	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Polyphenylene Sulfide (PPS)	125 °C	-40 °C				Non Specified - Dual Edge	0.156 in	3.96 mm		10
EDAC Inc. 887-020-541-201	10 Áin	0.25 Ám	Cantilever	Wire Wrap	20	Through Hole	2	Female	Black	Copper Alloy				Gold	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Polyphenylene Sulfide (PPS)	125 °C	-40 °C				Non Specified - Dual Edge	0.156 in	3.96 mm		10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 50.57
Newark	Each	1	$ 60.68
		100	$ 38.59
		250	$ 34.23
		500	$ 31.91
		1000	$ 26.63

Description

General part information

887-020 Series

20 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
